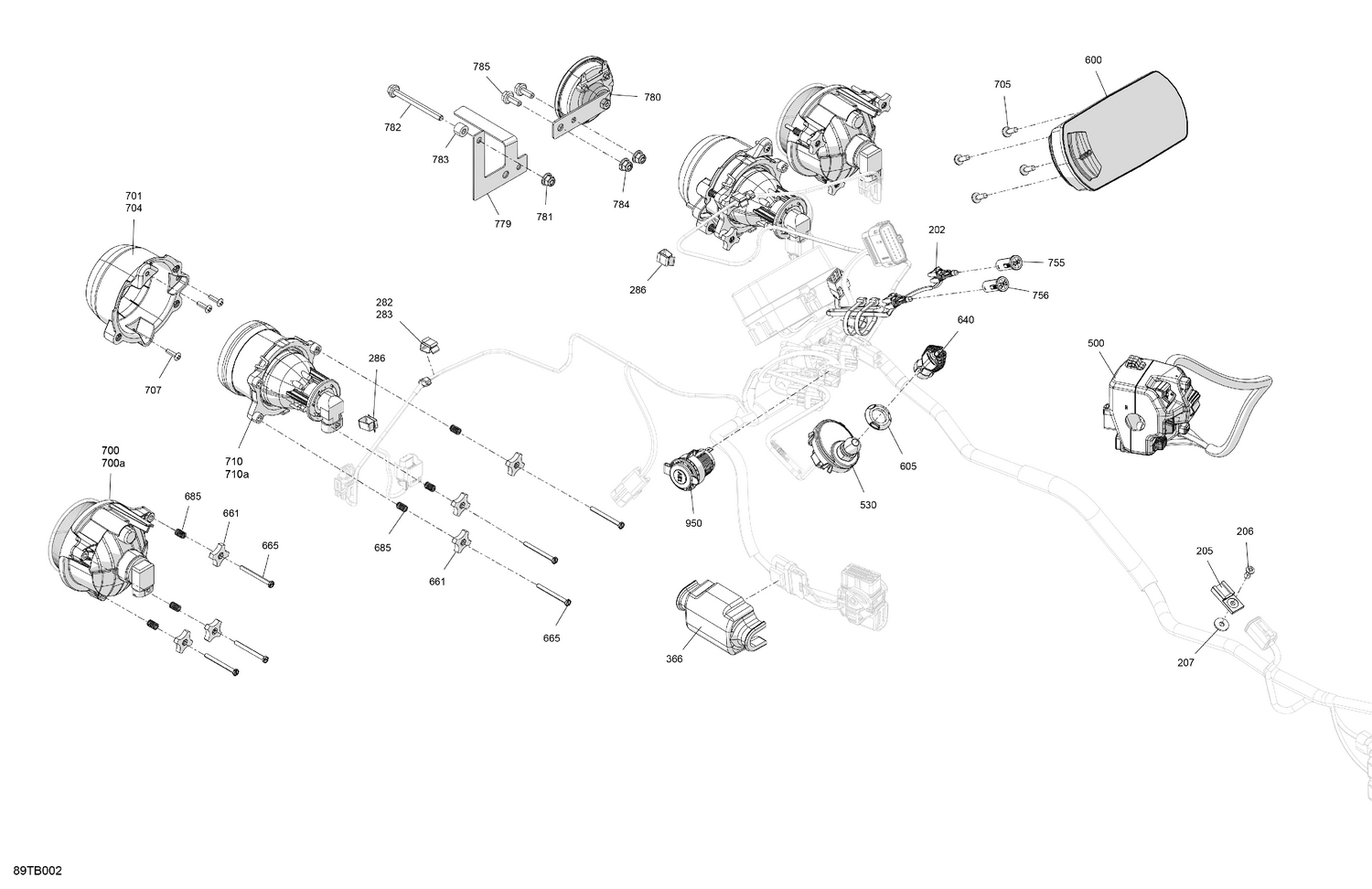

08- Electric - Front Section
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 202 | 710007825 | Tell Tale Wiring Harness |
| 205 | 270000141 | Clip |
| 206 | 293150301 | Pop Rivet 3/16 X ,551 |
| 207 | 391301600 | Washer |
| 282 | 710010204 | Clip |
| 283 | 710010204 | Clip |
| 286 | 710010204 | Clip |
| 366 | 710007255 | Soft Protection Sleeve |
| 500 | 710007609 | LH Front Multifunction Switch |
| 530 | 515178840 | Terminal Dess One-Wire |
| 600 | 710008108 | Multifunction Gauge Compact Mono |
| 605 | 278004274 | Specialized Nut |
| 640 | 710004964 | Grey Key RFID |
| 661 | 572106600 | Handle |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 685 | 517168600 | Spring |
| 700a | 715900141 | Bulb 12V 55W |
| 701 | 710002291 | RH High Front Housing |
| 704 | 710002292 | LH High Front Housing |
| 705 | 250000720 | Torx Screw K50 X 16 |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 710a | 415129249 | Halogen Bulb |
| 755 | 710005766 | Pilot Light Trailer Flasher |
| 756 | 710005767 | Pilot Light Tail Lamp |
| 779 | 710006113 | Horn Support |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207667044 | Hex. Flange Screw M6 X 70 |
| 783 | 708001129 | Bushing |
| 784 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 785 | 207661644 | Hex. Flange Screw M6 X 16 |
