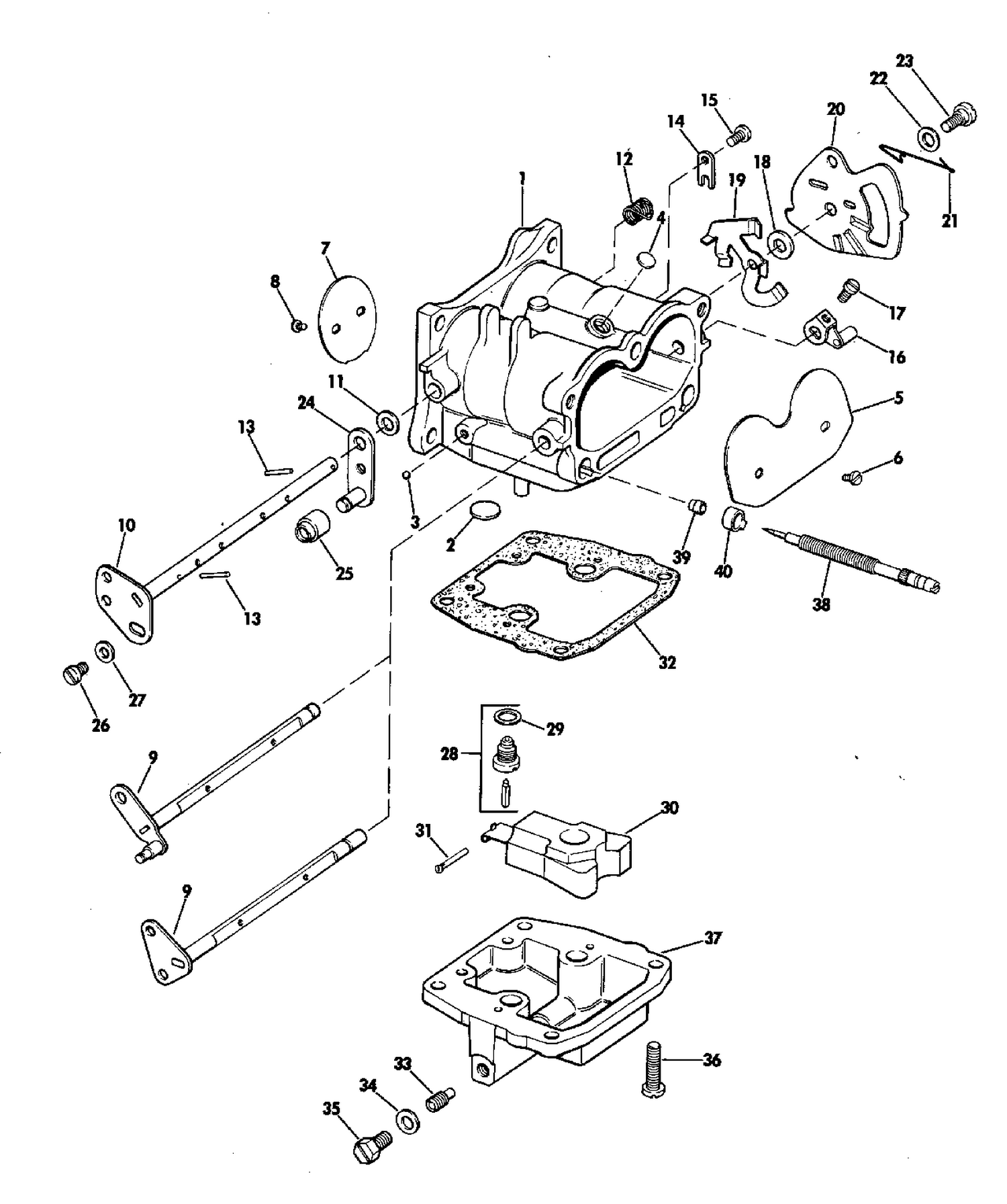

| Ref | Part Number | Description |
|---|
| 1 |
0383826 |
CARBURETOR BODY ASSEMBLY |
| 1 |
0383827 |
CARBURETOR BODY ASSEMBLY |
| 5 |
0314890 |
CHOKE VALVE |
| 9 |
0383439 |
CHOKE SHAFT AND PIN |
| 9 |
0383709 |
CHOKE SHAFT AND LEVER |
| 14 |
0314906 |
CLIP |
| 22 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 30 |
0383437 |
FLOAT ASSEMBLY |
| 32 |
0338884 |
GASKET, Float bowl This part replaces 0314884. |
| 33 |
0321731 |
ORIFICE PLUG This part replaces 0315321. |
| 35 |
0307832 |
PLUG, Screw |
| 36 |
0307466 |
SCRES, Bowl to body |
| 37 |
0383825 |
FLOAT CHAMBER ASSEMBLY |
| 38 |
0314892 |
NEEDLE VALVE, Slow speed |
| 39 |
0314166 |
BEARING, Needle valve |
| 40 |
0315232 |
RETAINER , Needle valve stbd |
| 0383463 |
0383463 |
CARBURETOR ASSEMBLY COMPLETE, Upper |
| 0383464 |
0383464 |
CARBURETOR ASSEMBLY COMPLETE, Lower |
