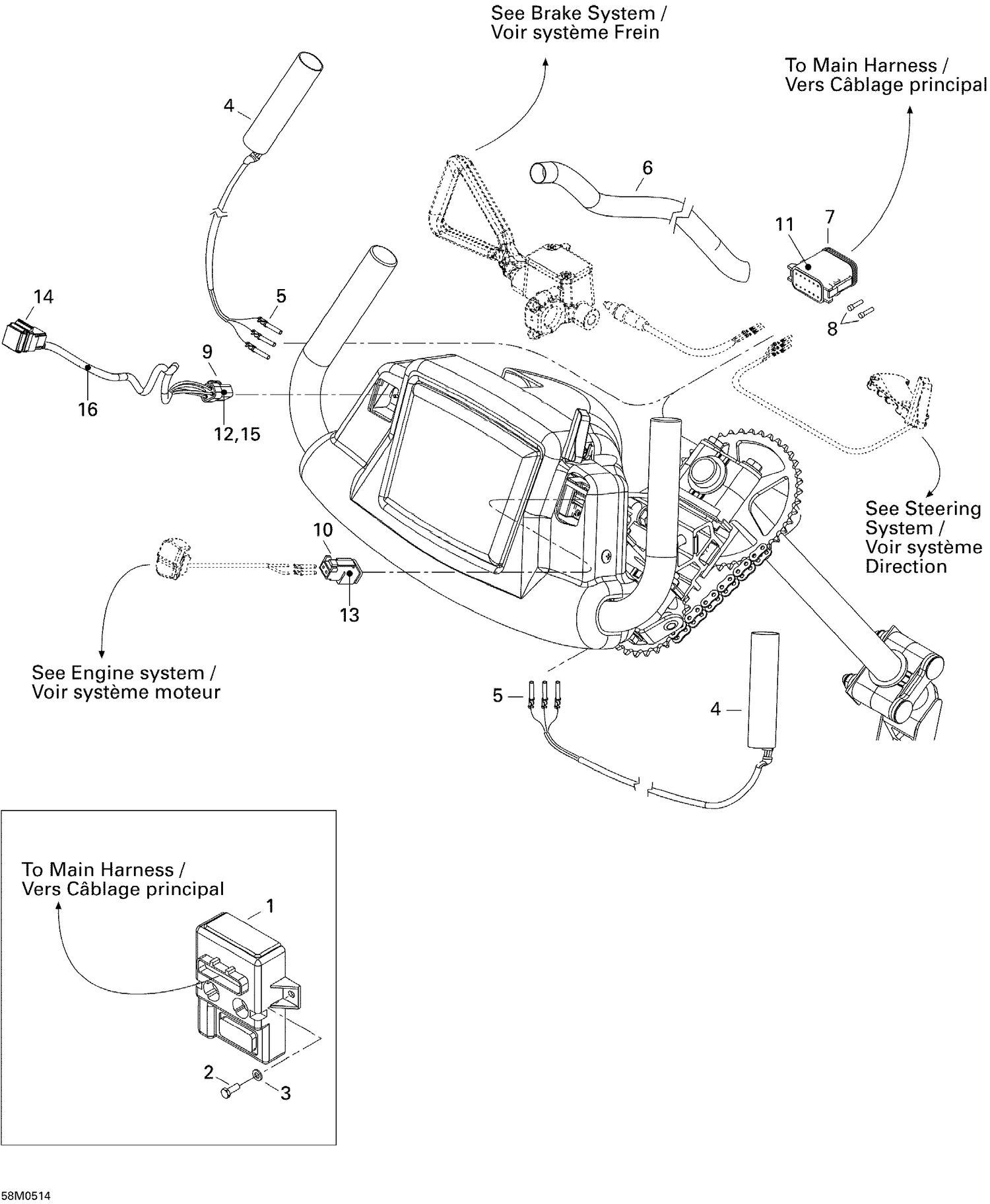

10- Electrical Accessories, Steering
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515175861 | Can Interface |
| 2 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 515176139 | HEATER ELEMENT - Call your local BRP dealership |
| 5 | 278000632 | Female Terminal |
| 6 | 293100011 | Pvc Vinyl Tubing |
| 7 | 278002377 | Female Terminal Housing, 12 Circuits This part replaces 409015900. |
| 8 | 293000052 | Sealing Cap |
| 9 | 278001473 | Female Terminal Housing, 4 Circuits |
| 10 | 409207300 | Female Connector, 2 Circuits |
| 11 | 409015700 | Female Lock, 12 Circuits |
| 12 | 278001474 | Female Lock, 4 Circuits |
| 13 | 409207100 | FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 14 | 515175563 | Dimmer Switch |
| 15 | 515175567 | Female Terminal |
