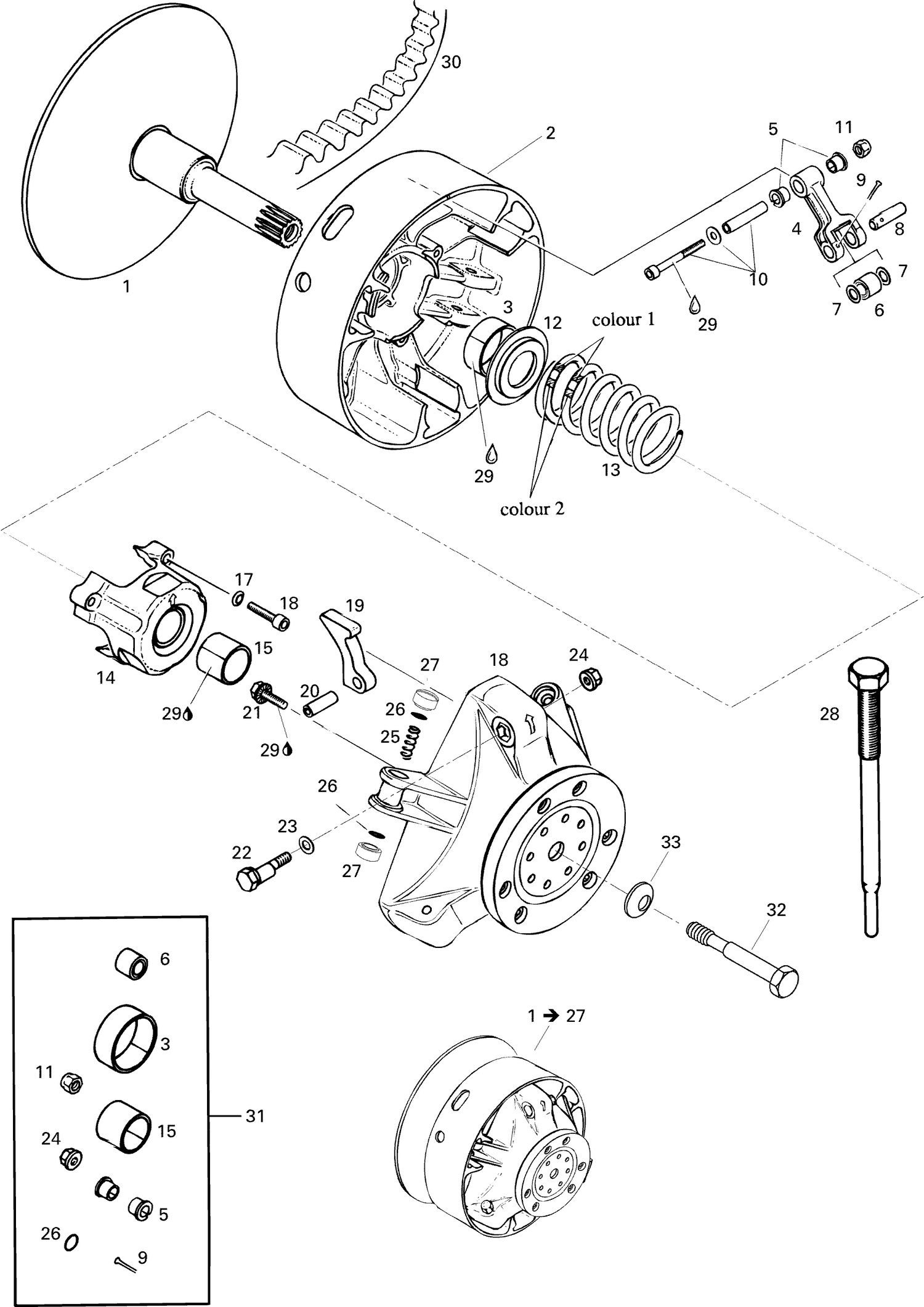

05- Drive Pulley Formula Z
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420480417 | Inner Half Ass‘y |
| 3 | 420433173 | BUSHING OUTER HALF - Call your local BRP dealership |
| 5 | 417004305 | Bushing This part replaces 420433195. |
| 6 | 417222947 | Roller This part replaces 420429132. |
| 7 | 417004302 | Stopper Washer This part replaces 420427400. |
| 8 | 417004309 | Pin This part replaces 420429140. |
| 9 | 250400060 | Cotter Pin This part replaces 420245210. |
| 11 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 12 | 420427392 | Spring Seat |
| 13 | 414605500 | Spring (Yellow) |
| 15 | 417004501 | Bushing This part replaces 420433188. |
| 16 | 205064086 | Socket Screw M6 X 40 |
| 17 | 420245370 | WASHER - Call your local BRP dealership |
| 18 | 420480395 | Governor Cup |
| 19 | 420480228 | Ramp (228) |
| 20 | 420429150 | Dowel Tube M8 x 24 |
| 21 | 420440180 | Hex. Locking Screw M6 x 20 |
| 22 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 420440170. |
| 23 | 420927941 | Washer |
| 24 | 233061414 | Hex. Flange Nut M6 This part replaces 420442110. |
| 25 | 417005700 | Spring This part replaces 420438100. |
| 26 | 732401030 | O-Ring This part replaces 420430730. |
| 27 | 417223021 | Slider Shoe |
| 28 | 529007900 | Puller Inner Half |
| 29 | 219703000 | Sealant Loctite 648 This part replaces 420899788. |
| 30 | 414860700 | Drive Belt |
| 31 | 420483325 | Clutch Repair Kit |
