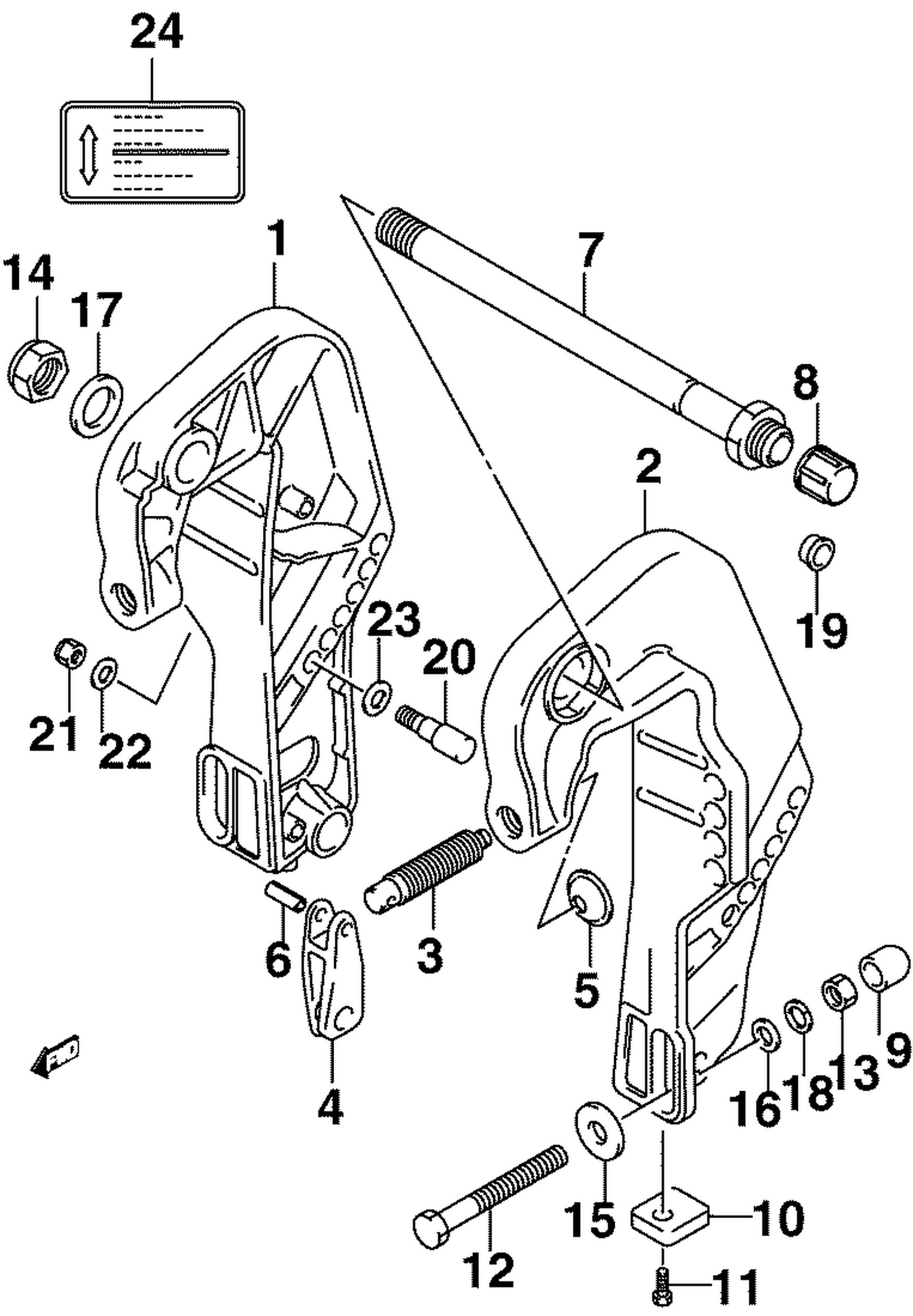

| Ref | Part Number | Description |
|---|
| 1 |
5036484 |
BRACKET, CLAMP STBD This part replaces 5034363. |
| 2 |
5035972 |
BRACKET, CLAMP PORT This part replaces 5034364. |
| 3 |
5032052 |
SCREW, Clamp |
| 4 |
5034664 |
BLOCK ASSY, CYLINDER |
| 7 |
5034365 |
SHAFT, CLAMP BRACKET |
| 8 |
5031489 |
CAP, CLAMP BRACKET |
| 9 |
5030839 |
CAP, TRANSOM BOLT |
| 10 |
5035786 |
ZINC SET, PROTECTION This part replaces 5030265. |
| 12 |
5037556 |
Kit This part replaces 5030385. |
| 13 |
5030418 |
NUT |
| 15 |
5030436 |
WASHER |
| 17 |
5031846 |
WASHER |
| 18 |
5030462 |
RONDELLE GROWER |
| 19 |
5031490 |
PLUG, CLAMP BRACKET |
| 20 |
5032068 |
PIN, Tilit lock |
| 21 |
*5030054 |
NUT |
| 22 |
5030057 |
WASHER |
