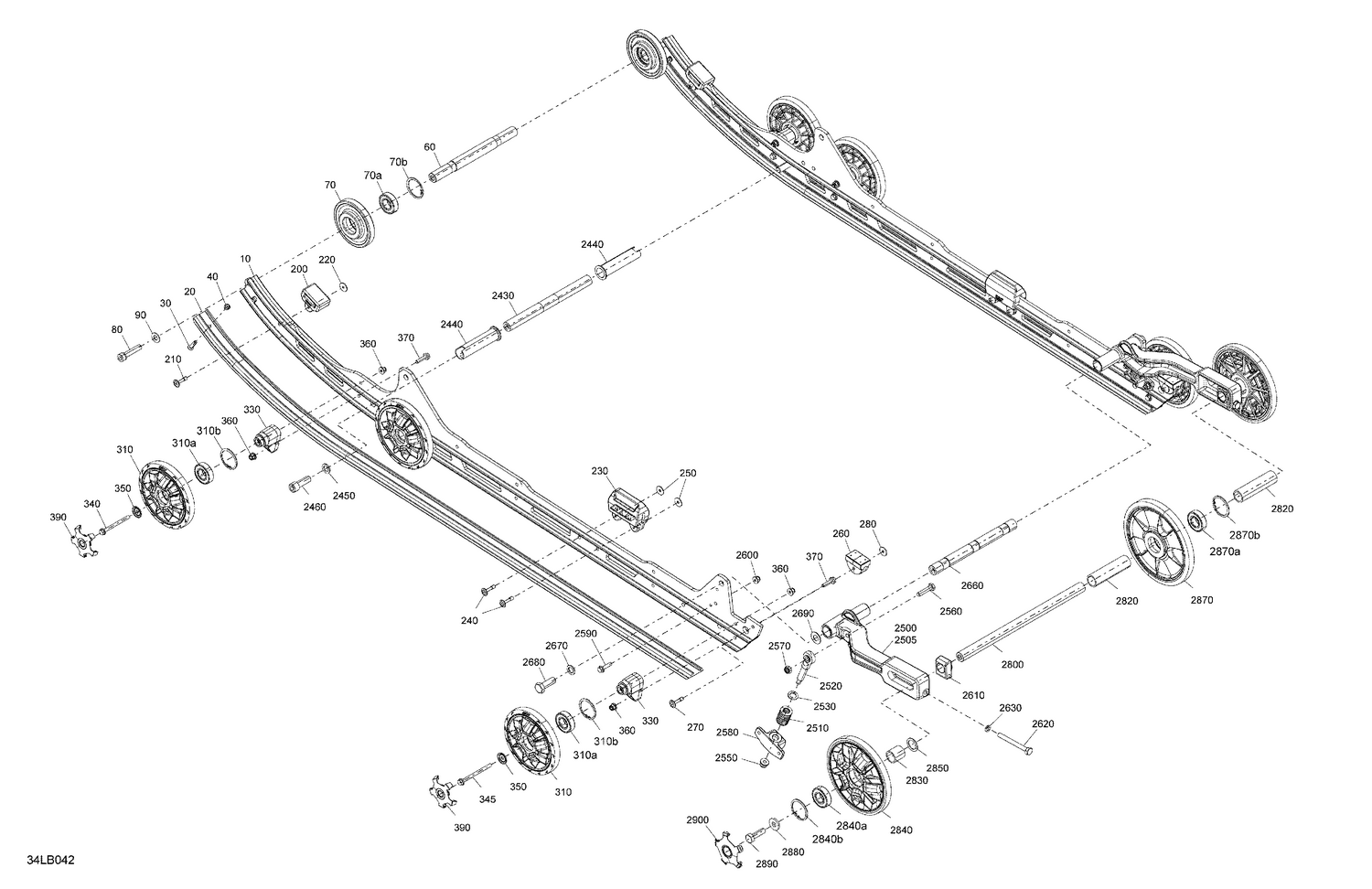

05- Suspension - Rear - Lower Section
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503195703 | Runner |
| 20 | 503196124 | Slider Shoe |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561434 | Elastic Stop Nut M6 |
| 60 | 503195286 | Front Wheel Shaft |
| 70a | 503190396 | Ball Bearing |
| 70b | 415129371 | Retaining Ring |
| 80 | 205504544 | Socket Screw |
| 90 | 234001410 | Flat Washer 10 mm |
| 200 | 503193504 | Rubber Stopper |
| 210 | 293150224 | Rivet Pop 3/16 |
| 220 | 503191273 | Washer |
| 230 | 503195028 | Rubber Stopper |
| 240 | 293150224 | Rivet Pop 3/16 |
| 250 | 503191273 | Washer |
| 260 | 503191291 | Rubber Stopper |
| 270 | 293150224 | Rivet Pop 3/16 |
| 280 | 503191273 | Washer |
| 310a | 503190396 | Ball Bearing |
| 310b | 415129371 | Retaining Ring |
| 330 | 503193894 | Casted Support |
| 340 | 250000944 | Hex. Flange Screw M6 X 70 |
| 345 | 207068044 | Screw Hex. M6 X 80 |
| 350 | 503191820 | Wheel Cup M6 |
| 360 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 370 | 250000945 | Hex. Flange Screw M6 X 25 |
| 390 | 503195345 | Black, Wheel Cap |
| 2430 | 503195233 | Center Shock Shaft |
| 2440 | 503195044 | Spacer |
| 2450 | 503189276 | Washer |
| 2460 | 205523554 | Socket Head Screw M12 X 35 |
| 2500 | 503195022 | LH Rail Pivot Ass'y |
| 2505 | 503195023 | RH Rail Pivot Ass'y |
| 2510 | 503194971 | Pivot Spring |
| 2520 | 503194763 | Ball Joint Link |
| 2530 | 503192491 | Washer |
| 2550 | 233281464 | Elastic Flange Nut M8 |
| 2560 | 207083544 | Hex. Screw M8 X 35 |
| 2570 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2580 | 503196408 | Extension Spring Support |
| 2590 | 207662556 | Hex. Flange Screw M6 X 25 |
| 2600 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 2610 | 503195064 | Tensioner |
| 2620 | 250000983 | Hex. Cap Screw With Nylon Patch |
| 2630 | 250200111 | Washer |
| 2660 | 503194912 | Lower Shaft |
| 2670 | 503192491 | Washer |
| 2680 | 250000537 | Hex. Cap Screw M12 X 35 |
| 2690 | 706200281 | Hardened Washer This part replaces 250200086. |
| 2800 | 503190429 | Rear Axle |
| 2820 | 503195057 | Spacer |
| 2830 | 503194647 | Spacer |
| 2840a | 503190396 | Ball Bearing |
| 2840b | 415129371 | Retaining Ring |
| 2850 | 31013 | Shim Ring |
| 2870a | 503190396 | Ball Bearing |
| 2870b | 415129371 | Retaining Ring |
| 2880 | 503190439 | Washer |
| 2890 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
