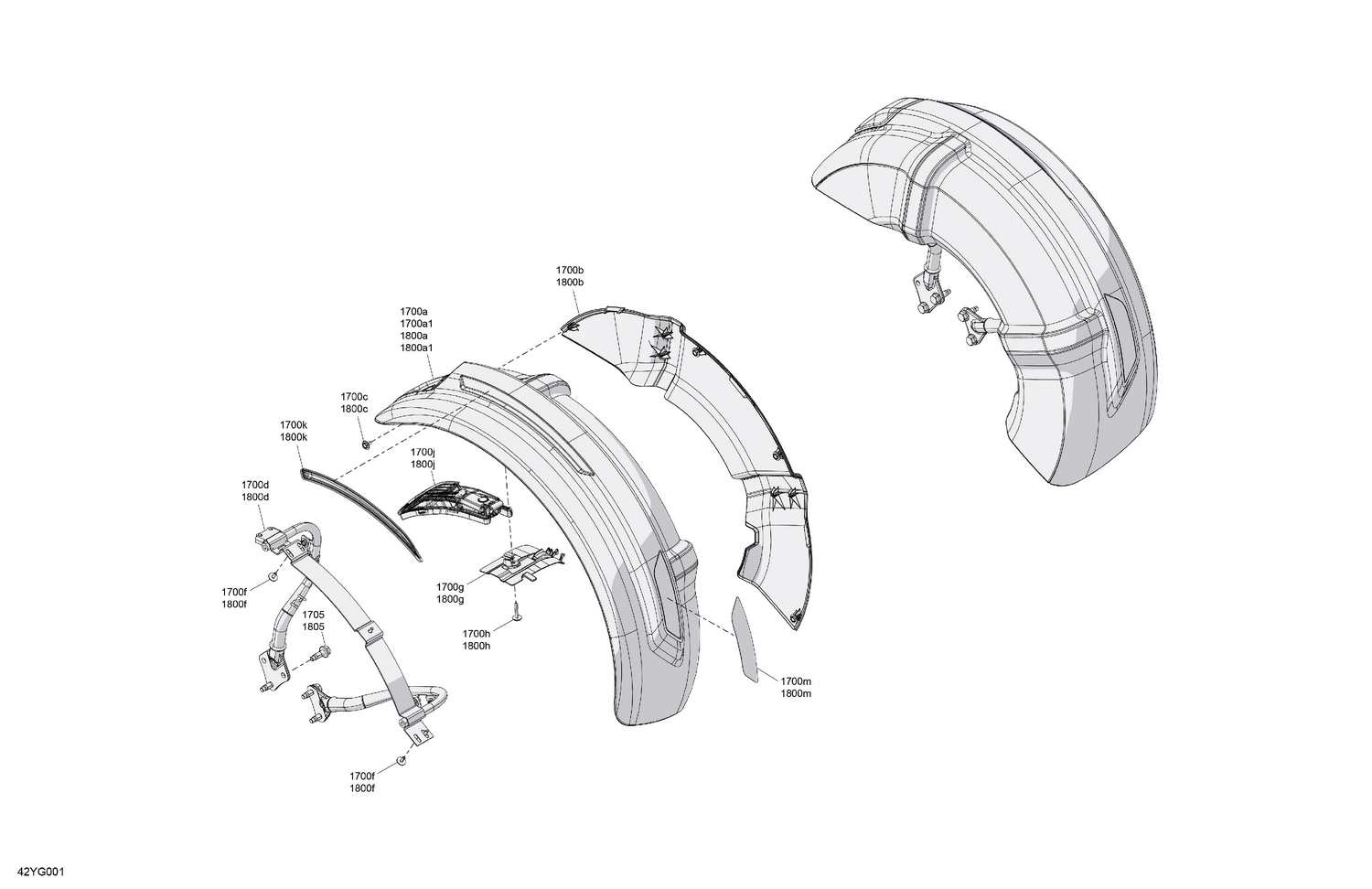

07- Body - Front Fender
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1700a1 | 705012976 | Bare, LH Front Fender |
| 1700b | 705012975 | LH Inner Fender |
| 1700c | 250000805 | Plastite Screw M4 X 10 |
| 1700d | 705020396 | LH Front Fender Support Ass'y |
| 1700f | 250000805 | Plastite Screw M4 X 10 |
| 1700g | 705020392 | LH Front Wheel Arch Protector |
| 1700h | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 1700j | 710007008 | LH Front Position Light |
| 1700k | 705012404 | Yellow, LH Reflector |
| 1700m | 705014736 | Red, Rear Reflector |
| 1705 | 250000773 | Hexagonal Screw M8X25 Dog Point |
| 1800a1 | 705012868 | Bare, RH Front Fender |
| 1800b | 705012867 | RH Inner Fender |
| 1800c | 250000805 | Plastite Screw M4 X 10 |
| 1800d | 705020397 | RH Front Fender Support Ass'y |
| 1800f | 250000805 | Plastite Screw M4 X 10 |
| 1800g | 705020393 | RH Front Wheel Arch Protector |
| 1800h | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 1800j | 710007009 | RH Front Position Light |
| 1800k | 705012405 | Yellow, RH Reflector |
| 1800m | 705014736 | Red, Rear Reflector |
