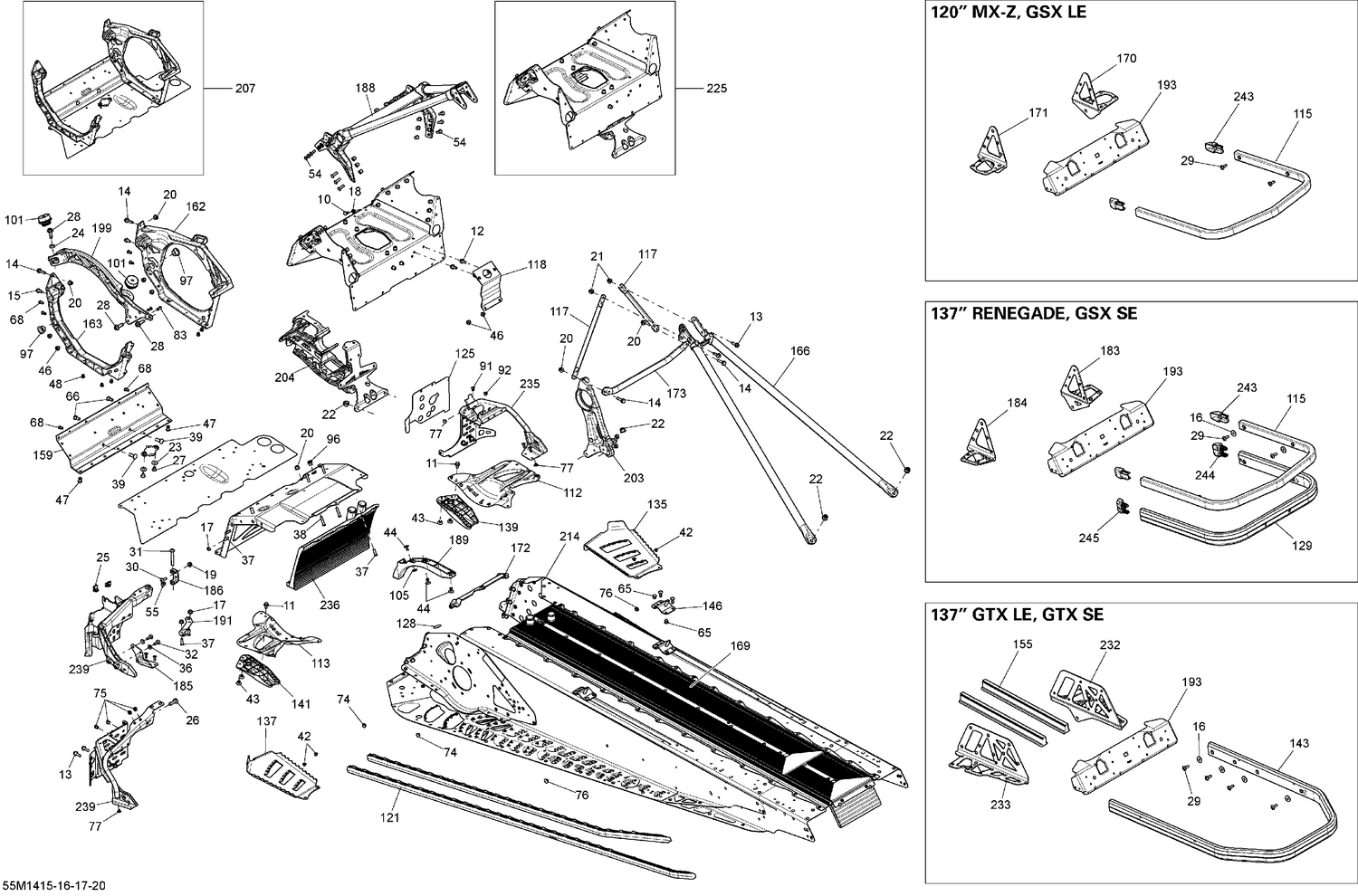

| Ref | Part Number | Description |
|---|
| 11 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 12 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 13 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 14 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 15 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 23 |
234062410 |
Flat Washer 6 mm |
| 24 |
234281474 |
Conical Spring Washer M8 |
| 27 |
250000349 |
Torx Truss Screw M6 X 10 |
| 28 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon |
| 37 |
250300027 |
Clinch Stud M6 X 20 |
| 38 |
250300031 |
Clinch Stud M6 X 30 |
| 39 |
250300038 |
Clinch Stud |
| 43 |
293150104 |
Pop Rivet 3/16" |
| 44 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 46 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 47 |
293150120 |
Hemlock Rivet 6.5 mm |
| 48 |
293150144 |
Stavex Rivet |
| 54 |
293150146 |
Henrob Rivet |
| 65 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 66 |
293150182 |
Monobolt Rivet 6.4 |
| 68 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 74 |
293730047 |
Black, Dart 8 mm |
| 76 |
293730060 |
Black, Dart 10 mm |
| 77 |
293730042 |
Full Moon Dart 5 mm |
| 83 |
390407200 |
Pop Rivet 3/16” |
| 91 |
390909100 |
Avex Rivet |
| 92 |
390909200 |
Avex Rivet |
| 96 |
293450275 |
Insert |
| 97 |
505073317 |
Leg Cushion |
| 101 |
512061516 |
Vibration Damper This part replaces 512060295. |
| 105 |
517124300 |
Washer |
| 112 |
518324874 |
RH Reinforcement |
| 113 |
518324875 |
LH Reinforcement |
| 115 |
XXX |
Not Available As Spare Parts |
| 117 |
518325114 |
Upper Lateral Column Support |
| 118 |
518325371 |
MAG Engine Support |
| 125 |
518325418 |
HEAT SHIELD - Call your local BRP dealership |
| 128 |
518325560 |
Adhesive Patch |
| 139 |
518325782 |
RH Deflector, Black Polypropylene |
| 141 |
518325783 |
LH Deflector, Black Polypropylene |
| 146 |
518325973 |
RH Rear Base |
| 146 |
518325974 |
LH Rear Base |
| 155 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. |
| 159 |
518326198 |
Front Member |
| 162 |
518326328 |
RH Side Member |
| 163 |
518326330 |
LH Side Member |
| 166 |
518326559 |
Rear Member |
| 169 |
518326641 |
Rear Radiator Ass'y, 137" |
| 170 |
XXX |
Not Available As Spare Parts |
| 171 |
XXX |
Not Available As Spare Parts |
| 172 |
518326656 |
Seal |
| 173 |
518326657 |
Center Column Support |
| 183 |
XXX |
Not Available As Spare Parts |
| 184 |
XXX |
Not Available As Spare Parts |
| 189 |
518326973 |
Front Tunnel Protector |
| 193 |
518327105 |
Rear Cap |
| 199 |
518327392 |
Brace Ass'y |
| 203 |
518327460 |
Driven Pulley Support |
| 207 |
518327485 |
E MODULE - Call your local BRP dealership |
| 232 |
518327858 |
RH SUSPENSION BRACKET - Call your local BRP dealership |
| 233 |
518327859 |
LH Suspension Bracket |
| 235 |
518328938 |
RH Stirup This part replaces 518327863. |
| 236 |
518327907 |
Front Radiator Ass'y |
| 243 |
XXX |
Not Available As Spare Parts |
