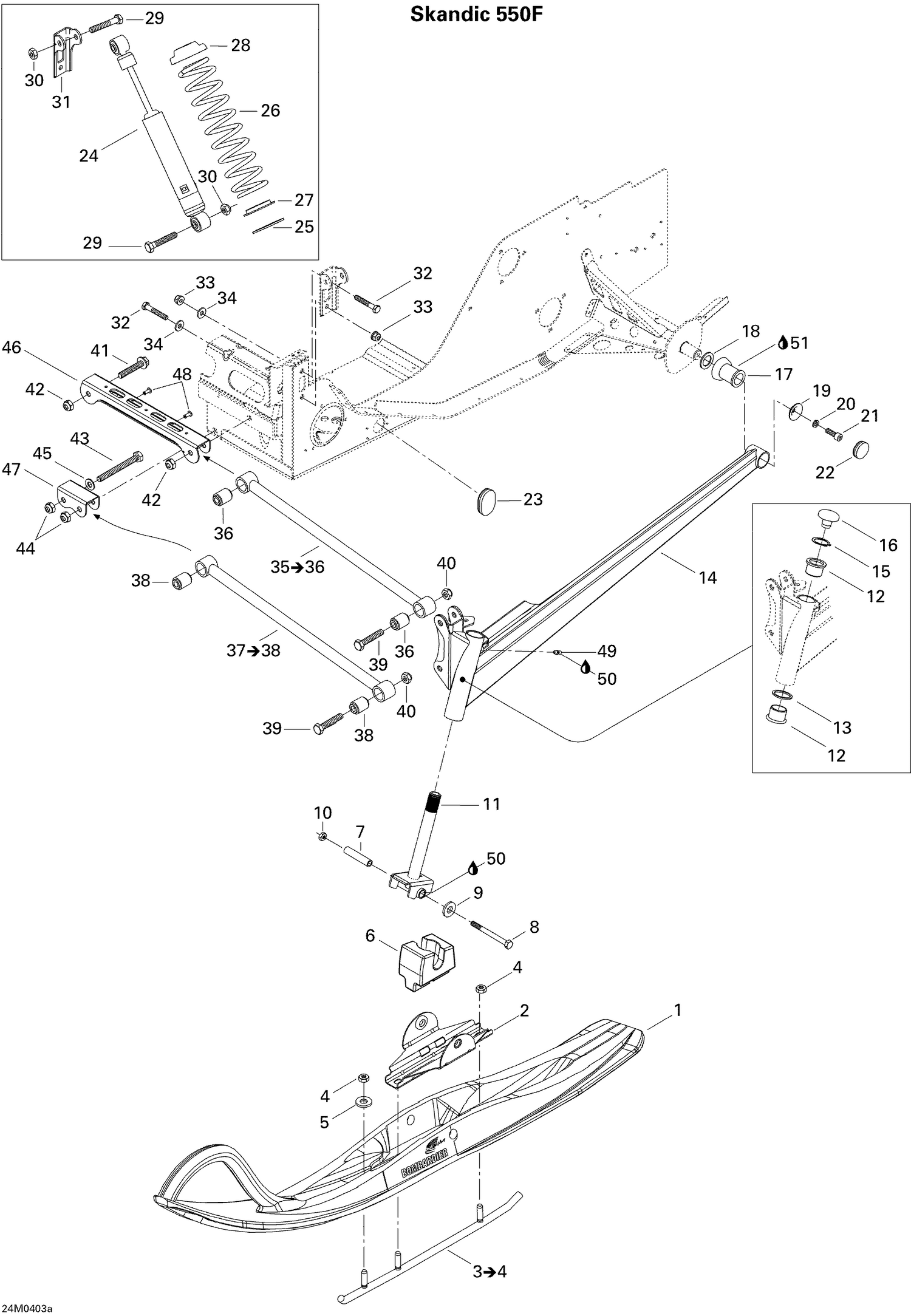

07- Front Suspension SKANDIC 550F
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505072019 | Small ''Blow Mold'' Ski This part replaces 505070975. |
| 2 | 505070980 | BRIDGE ASS'Y - Call your local BRP dealership |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 234082410 | Flat Washer 8 mm |
| 6 | 505070978 | SKI STOPPER - Call your local BRP dealership |
| 7 | 506133300 | Spacer |
| 8 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 9 | 234001410 | Flat Washer 10 mm |
| 10 | 233201414 | Hex. Flange Elastic Nut M10 |
| 11 | 506151234 | Ski Leg |
| 12 | 505070003 | Cushion |
| 13 | 505070004 | WASHER - Call your local BRP dealership |
| 14 | 505070645 | RH ARM - Call your local BRP dealership |
| 15 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 16 | 572091300 | Cap |
| 17 | 570062200 | DAMPER - Call your local BRP dealership |
| 18 | 503146700 | WASHER - Call your local BRP dealership |
| 19 | 705007171 | Cup This part replaces 506115800. |
| 20 | 234181401 | Lock Washer 8 mm |
| 21 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 22 | 572045900 | CAP - Call your local BRP dealership |
| 23 | 414916600 | Black, Nylon Cap |
| 24 | 505071198 | FRONT SHOCK - Call your local BRP dealership |
| 25 | 505070401 | WASHER - Call your local BRP dealership |
| 26 | 505070393 | Spring |
| 27 | 503187500 | Spring Guide |
| 28 | 706200881 | Spring Stopper This part replaces 503140600. |
| 29 | 207005544 | Hex. Screw M10 X 55 |
| 30 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 31 | 518317518 | RH SHOCK BRACKET - Call your local BRP dealership |
| 32 | 207085044 | Hex. Screw M8 X 50 |
| 33 | 233281414 | Hex. Flange Elastic Nut M8 |
| 34 | 506151245 | Washer |
| 36 | 505070025 | Bushing |
| 38 | 505070025 | Bushing |
| 39 | 207005544 | Hex. Screw M10 X 55 |
| 40 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 41 | 207605544 | Hex. Flange Screw M10 X 55 |
| 42 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 43 | 207009544 | Hex. Screw M10 X 95 |
| 44 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 45 | 234001410 | Flat Washer 10 mm |
| 46 | 505070010 | Upper Arm Bracket |
| 47 | 505070011 | Lower Arm Bracket |
| 48 | 390402200 | Pop Rivet 3/16" |
| 49 | 408200700 | Grease Fitting |
| 50 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 505070646 | Bras | Oscillant GA - Appelez votre concessionnaire BRP local 505070646 |
| 505070646 | LH | ARM - Call your local BRP dealership 505070646 |
| 518317519 | LH | Shock Bracket 518317519 |
