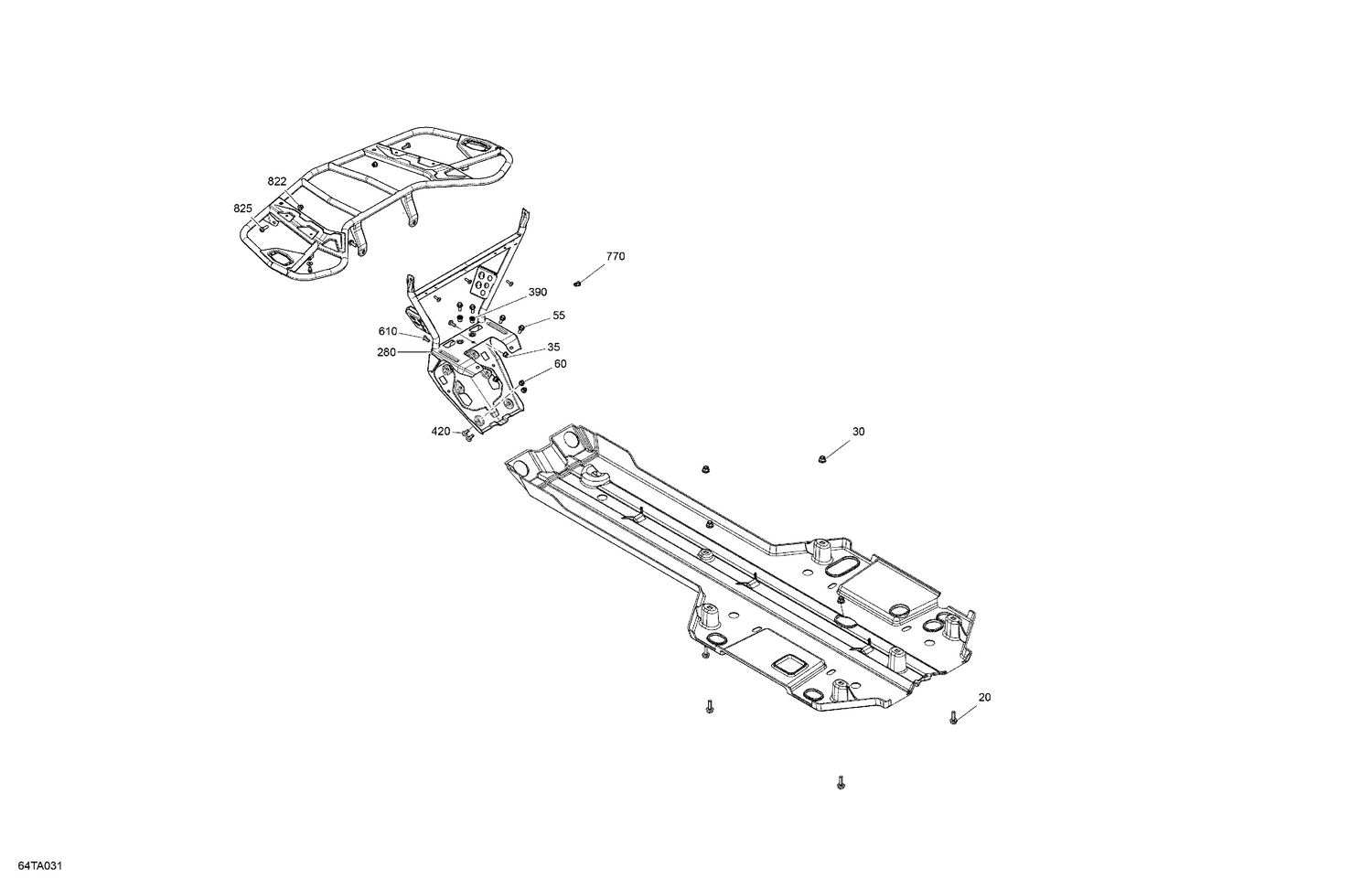

07- Body - Skid Plate
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233281434 | Hex. Flange Elastic Nut M8 |
| 55 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 280 | 705017337 | Front Frame This part replaces 705009256. |
| 390 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 610 | 236282054 | Hex. Screw M8 X 20 |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 822 | 233281464 | Elastic Flange Nut M8 |
