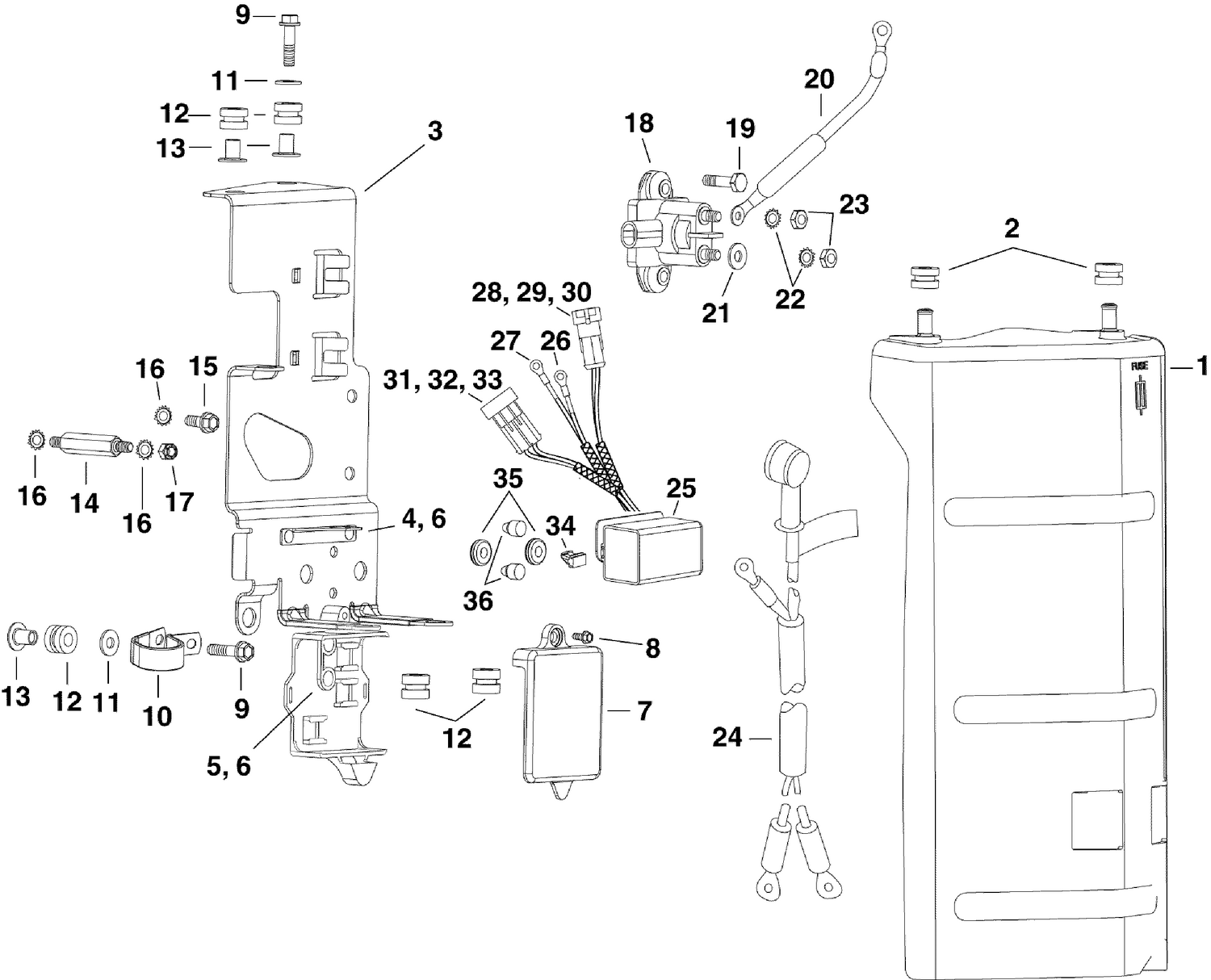

ELECTRICAL BRACKET & COMPONENTS
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5008027 | COVER, Electrical bracket |
| 3 | 0354797 | BRACKET, Electrical |
| 4 | 0514005 | SUPPORT, connecteur sectionneur de batterie |
| 5 | 0352051 | BRACKET, Connector |
| 7 | 0342265 | COVER, Bracket |
| 10 | 0344044 | CLAMP, Cable to c/c |
| 14 | 3011358 | STUD, Ground double end |
| 18 | 0587020 | SOLÉNOÏDE DE DÉMARREUR |
| 20 | 0586832 | CABLE, Starter to solenoid |
| 25 | 0586767 | CABLE & RELAY ASSEMBLY |
| 26 | 0600138 | Ring Terminal |
