Parts Catalog

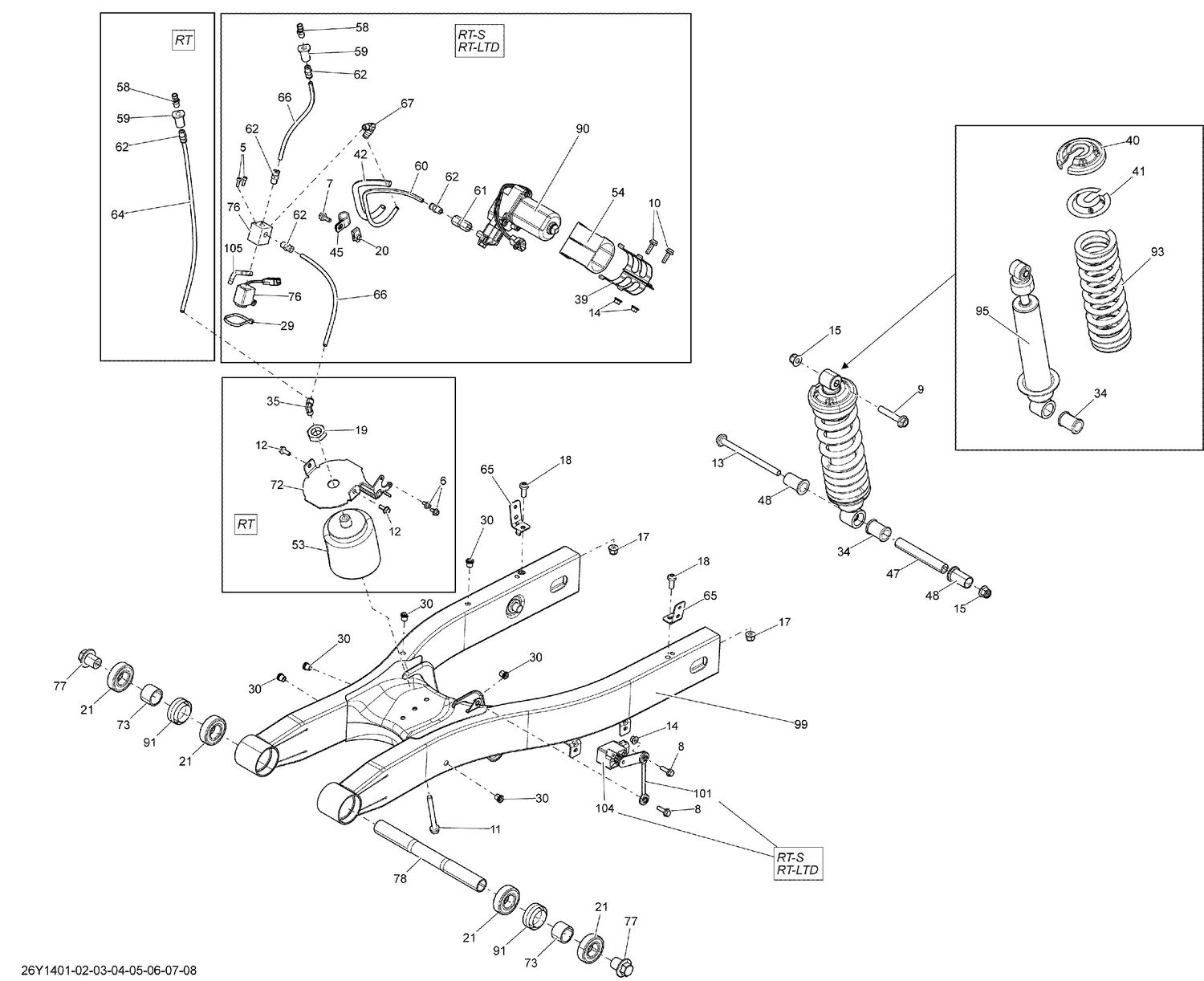

08- Suspension, Rear _26Y1403

Parts (50)

Ref	Part Number	Description
5	205041254	Socket Head Screw M4 X 12 This part replaces 205041284.
6	207551044	Hex. Flange Screw M5 X 10
7	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
8	207662044	Hex. Flange Screw M6 X 20
9	207605534	Hex. Flange Screw
10	207662044	Hex. Flange Screw M6 X 20
11	207687544	Hex. Flange Screw M8 X 75
12	210261050	Hex. Forming Screw M6 X 10 This part replaces 210261080.
13	230604034	Hex. Flange Screw M10 X 140
14	233061414	Hex. Flange Nut M6
15	233201434	Hex. Flange Elastic Nut M10
17	233281414	Hex. Flange Elastic Nut M8
18	236282084	Hex. Screw M8 X 20
19	250100119	Jam Nut M20
20	250100198	Panel Nut M6 X 1.0 This part replaces 250100113.
21	293350115	Ball Bearing This part replaces 293350055.
29	414115200	Tie-Rap 180 mm
30	293450275	Insert
34	503191609	Urethane Cushion
35	706001018	Elbow 90°
39	503193103	Compressor Bracket
40	503193781	Spring Stopper
41	503193782	Cap
42	219704425	Tubing 6 Mm 3000Mm Long
45	705600232	Hose Retainer 13 mm
47	706000409	Shock Absorber Shaft
48	XXX	Not Available As Spare Parts
53	219800175	Air Damper Kit
54	706000631	Compressor Isolator
58	706002797	Air Valve This part replaces 706000678.
59	706000735	Pneumatic Connector
60	706000891	Hose
61	706000831	Ckeck Valve
62	706000869	Connector
64	706000893	Hose
65	XXX	Not Available As Spare Parts
66	219704415	Hose 4.32Mm 3000Mm Long
67	706000928	Elbow 90°
72	706001082	Support Plate
73	706001152	Spacer
76	706001175	Air Manifold Ass'y
77	706001579	Bolt M20
78	706001182	Swing Arm Axle
90	706001349	Compressor
91	706001366	Sleeve
93	706001542	Shock Absorber Spring
95	706001552	Shock Absorber
99	706001574	Swing Arm
101	706202505	Tie Rod This part replaces 706201815.
104	710001651	Position Sensor
