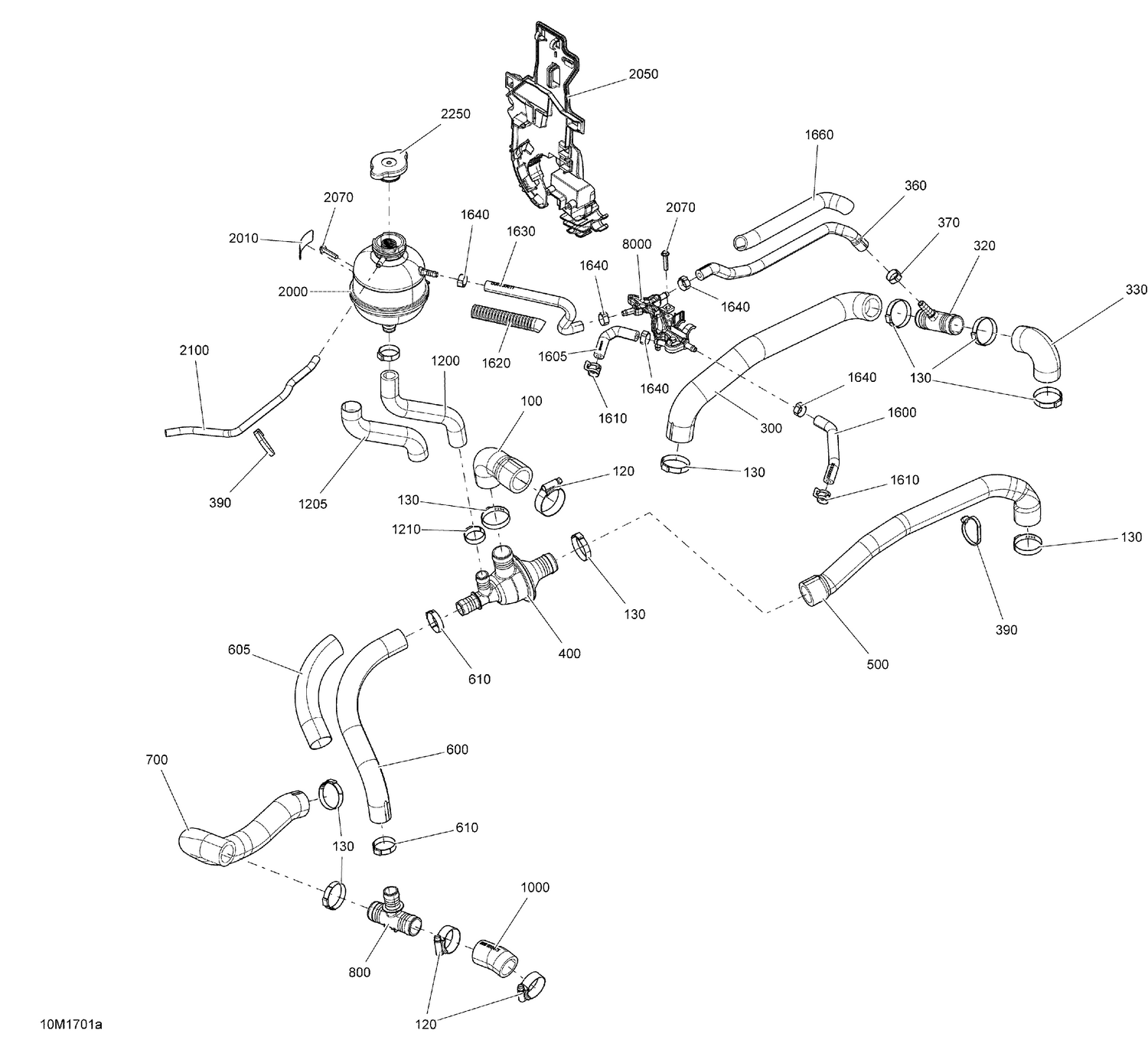

01- Cooling System
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 509000678 | Engine Outlet Hose |
| 120 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 130 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 300 | 509000670 | Radiator Hose |
| 320 | 509000510 | T-Fitting |
| 330 | 509001066 | Radiator Hose This part replaces 509000671. |
| 360 | 509000906 | Bleeder Hose |
| 370 | 293650047 | Crimp Clamp, 15.3-706R |
| 390 | 414115200 | Tie-Rap 180 mm |
| 400 | 509000499 | Thermostat Housing |
| 500 | 509000679 | Thermostat Outlet Hose |
| 600 | 509000672 | Bypass Hose |
| 605 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 610 | 293650099 | Crimp Clamp |
| 700 | 509000673 | Radiator Hose |
| 800 | 509000372 | T-Fitting |
| 1000 | 509001067 | Engine Inlet Hose This part replaces 509000675. |
| 1200 | 509000812 | Filling Hose |
| 1205 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1600 | 509000818 | Bleeder Hose |
| 1605 | 509000819 | Bleeder Hose |
| 1610 | 293650210 | Spring Clamp |
| 1620 | 219704400 | Was 409901800 Tubing (13 mm) |
| 1630 | 509000817 | HOSE - Call your local BRP dealership |
| 1640 | 293650046 | Oetiker Clamp |
| 1660 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 2000 | 509000802 | Coolant Tank |
| 2010 | 516005904 | Warning Decal |
| 2050 | 509000973 | TANK-SUPPORT - Call your local BRP dealership |
| 2070 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2250 | 509000180 | Radiator Pressure Cap |
