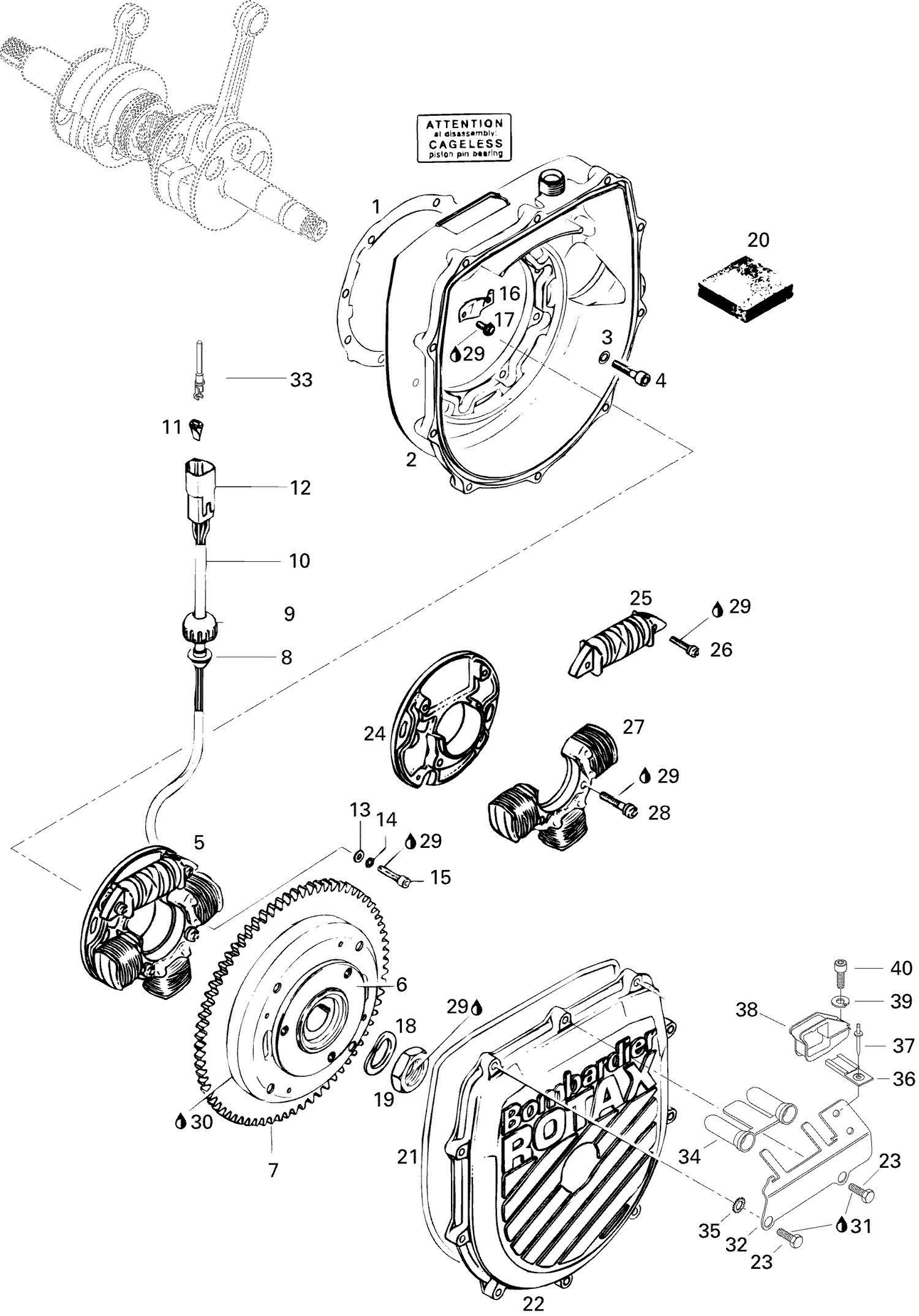

03- Magneto

03- Magneto

Parts (40)

RefPart NumberDescription
1 290850605 GASKET - Call your local BRP dealership
2 290810096 Ignition Housing (White)
3 420945751 WASHER-LOCK DIN.128 - Call your local BRP dealership This part replaces 290945751.
4 205062544 Socket Head Screw M6 X 25 This part replaces 290840861.
5 420886725 ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886726.
6 290995118 Flywheel
7 290834062 Starter Gear 77 Teeth
8 293720034 Grommet
9 278000100 Electric Wire Cap
10 290260931 Tubing Isolation (75 mm)
11 278000636 Female Wedge, 4 Circuits
12 278000635 Female Housing, 4 Circuits
13 290827800 Washer
14 290945750 Lock Washer 5 mm
15 290840515 Socket Head Screw M5 x 18
16 290853080 Retainer Plate
17 215050848 Hex. Screw M5 x 8
18 420945759 Lock Washer, 22 mm This part replaces 290945759.
19 420842239 Hex. Nut, M22 X 1.5 This part replaces 290842230.
20 290860680 Protection Mat
21 290831555 O-Ring
22 290810146 Ignition Cover
23 290841543 Taptite Screw
24 290866657 Armature Plate
25 410915200 GENERATING COIL - Call your local BRP dealership
26 290940810 Combined Screw M5 x 22
27 410916200 Lighting Coil
28 410913900 SCREW M6 X 25 WITH WASHER - Call your local BRP dealership
29 293800060 Loctite 243, 10 ml This part replaces 293800015.
30 219703000 Sealant Loctite 648 This part replaces 290899788.
31 293800023 LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
32 278000516 Ground Plate
33 278000631 Male Terminal
34 278000213 INSULATOR - Call your local BRP dealership
35 234461608 External Serrated Lock Washer 6 mm This part replaces 217161600.
36 270000141 Clip
37 204000081 Pop Rivet 3/16"
38 270000158 Adaptor
39 234061600 Stainless Flat Washer M6 This part replaces 213200001.
40 205061660 Socket Screw M6 X 16 This part replaces 215961660.
