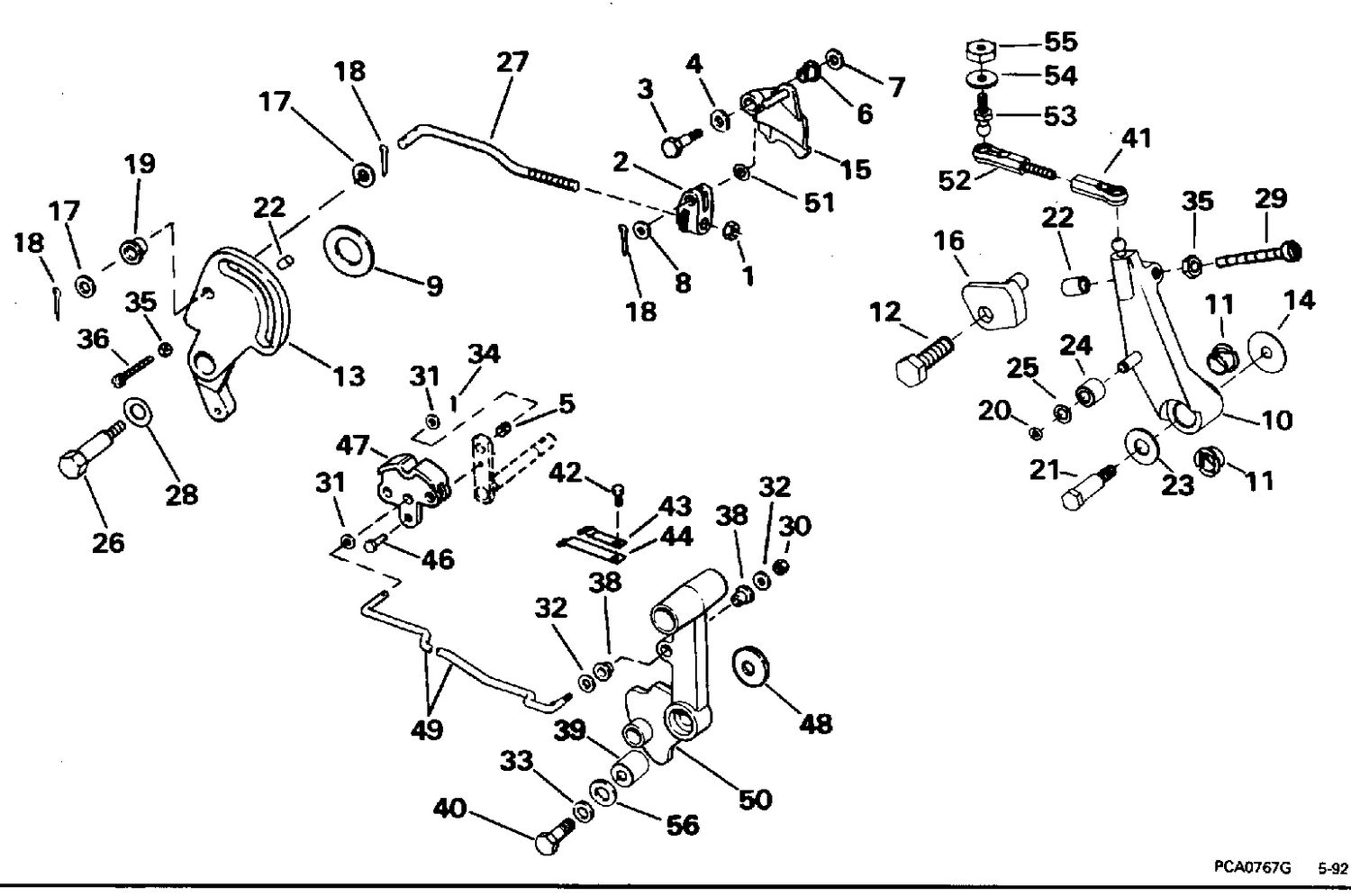

| Ref | Part Number | Description |
|---|
| 2 |
0397018 |
YOKE & THUMBWHEEL |
| 4 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 5 |
0320302 |
BUSHING, Laink to lever |
| 9 |
0908398 |
WASHER |
| 10 |
0432015 |
LEVER Assy, Spark |
| 13 |
0439834 |
LEVER, Throttle control This part replaces 0333837. |
| 15 |
0398134 |
THROTTLE CAM |
| 16 |
0338676 |
BUMPER, Idle stop |
| 20 |
0308776 |
O-RING |
| 21 |
0334238 |
VIS, levier vers cylindre |
| 22 |
0318660 |
BUMPER, Screw, throttle stop |
| 23 |
0908398 |
WASHER |
| 24 |
0432572 |
ROLLER & SLEEVE ASSY |
| 26 |
0206409 |
PIVOT SCREW |
| 27 |
0332143 |
ROD, Lever to cam |
| 28 |
0127386 |
RONDELLE This part replaces 0303913. |
| 29 |
0328699 |
LEVER, Spark control |
| 31 |
0329241 |
RONDELLE This part replaces 0305981. |
| 36 |
0339220 |
SCREW, Spark control cam |
| 43 |
0330212 |
RESSORT, appui, dispositif de blocage commande sens de marche |
| 44 |
0330913 |
RESSORT, dispositif de blocage |
| 46 |
0316134 |
VIS, dispositif de blocage vers levier de sens de marche |
| 47 |
0330705 |
DENTENT, Shift lever |
| 49 |
0332279 |
SCREW, Gearcase to housing, long |
| 50 |
0436753 |
SHIFT LEVER |
| 51 |
0328734 |
BOW WASHER |
| 52 |
0432684 |
SHELL |
