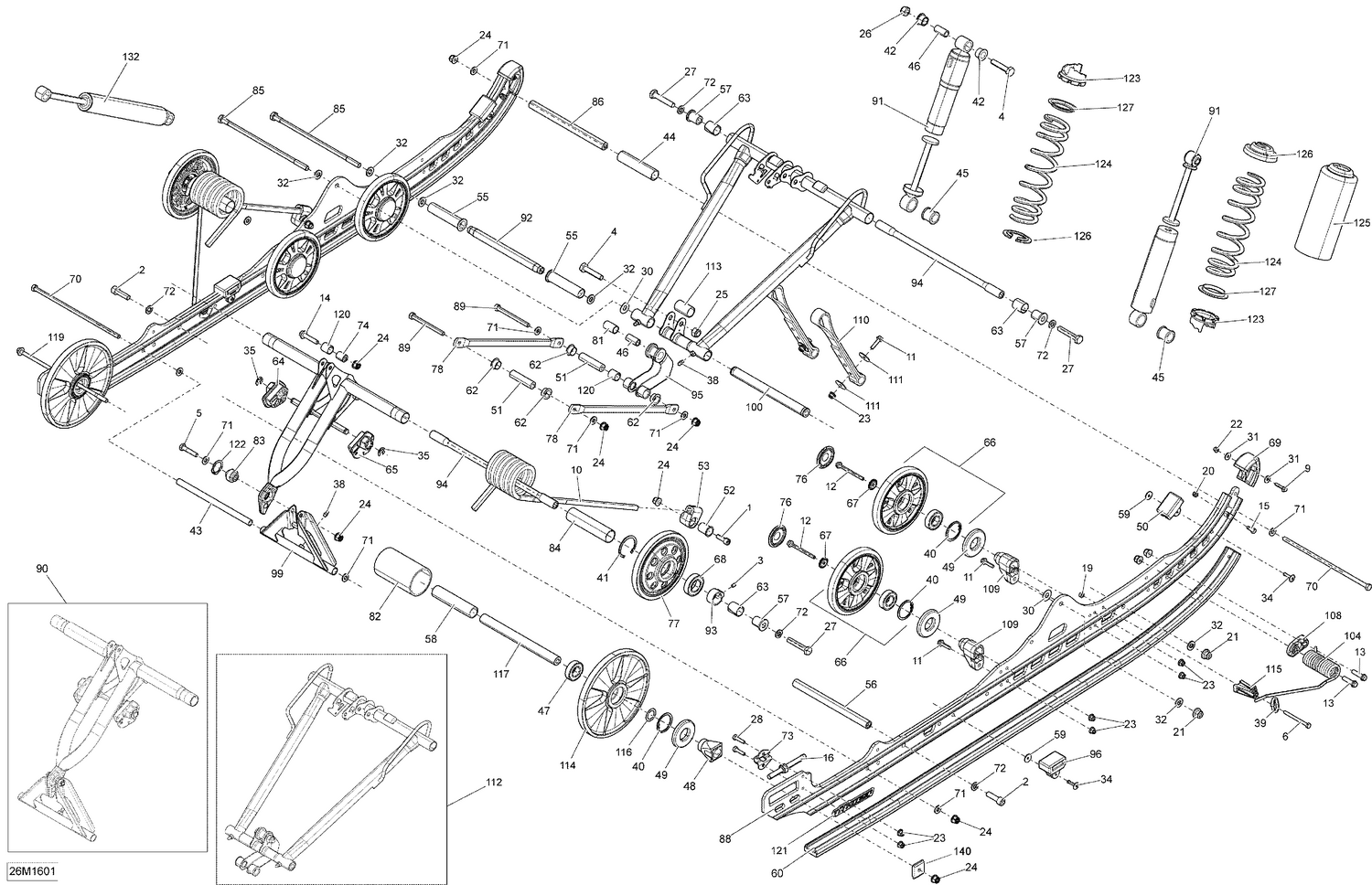

08- Rear Suspension - All Models
Parts (100)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205082554 | Socket Screw M8 X 25 |
| 2 | 205503554 | Socket Head Screw M10 X 35 |
| 3 | 206260844 | Socket Set Screw M6 X 8 |
| 4 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5 | 207084056 | Hex. Screw M8 X 1.25 X 40 |
| 6 | 207167054 | Hex. Cap Screw M6 X 70 |
| 9 | 207652544 | Hex. Flange Screw M5 X 25 |
| 11 | 207662556 | Hex. Flange Screw M6 X 25 |
| 11 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 12 | 207667056 | Hex. Flange Screw M6 X 70 |
| 13 | 207683054 | Hex. Flange Screw M8 X 30 |
| 14 | 207684044 | Hex. Flange Screw M8 X 40 |
| 15 | 208562531 | Phillips Screw M6 X 25 |
| 16 | 230100054 | Hex Screw M10 x 100 |
| 19 | 232061414 | Hex. Nut M6 |
| 20 | 232561414 | Elastic Stop Nut M6 |
| 21 | 233201466 | Flange Elastic Nut M10 |
| 22 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 23 | 233261466 | Hex. Flange Elastic Nut M6 |
| 24 | 233281466 | Elastic Flange Nut M8 |
| 25 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 26 | 233601466 | Elastic Locking Nut M10 |
| 27 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 28 | 250000619 | Hex Screw M6 X 25 |
| 30 | 250200032 | Washer |
| 31 | 250200140 | Washer |
| 32 | 250200143 | Flat Washer |
| 34 | 293150013 | Pop Rivet 3/16" |
| 35 | 293370013 | E-Circlip |
| 38 | 408200700 | Grease Fitting |
| 39 | 414115200 | Tie-Rap 180 mm |
| 40 | 415129371 | Retaining Ring |
| 41 | 415129780 | Retaining Ring |
| 42 | 503189117 | Urethane Bushing |
| 43 | 503189156 | Pivot Arm Axle |
| 44 | 503189265 | Spacer |
| 45 | 503189271 | Bushing |
| 46 | 503189282 | Bushing |
| 47 | 503190396 | Ball Bearing |
| 48 | 503190428 | Rear Wheel Spacer |
| 49 | 503190434 | Labyrinth Seal |
| 50 | 503190576 | Rubber Stopper |
| 51 | 503190643 | Axle Bar (Long) |
| 52 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 53 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 55 | 503191259 | Center Bushing |
| 56 | 503191260 | Axle Strap |
| 57 | 503191262 | Bushing |
| 58 | 503191263 | Rear Spacer |
| 59 | 503191273 | Washer |
| 62 | 503191555 | Swivel Bushing |
| 63 | 503191556 | Extended Bushing |
| 64 | 503191565 | LH Cam Adjuster |
| 65 | 503191566 | RH Cam Adjuster |
| 66 | 503191755 | Black, Wheel Ass'y 152 mm |
| 67 | 503191820 | Wheel Cup M6 |
| 68 | 503193548 | Ball Bearing This part replaces 503191982. |
| 69 | 503192299 | Runner Protector |
| 70 | 503192440 | Bolt M8 X 248mm |
| 71 | 503192494 | Washer |
| 72 | 503192496 | Washer |
| 73 | 503192583 | Tensioner |
| 74 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 76 | 503192771 | Black, Wheel Cap |
| 77 | 503192808 | Black Wheel Ass'y 155 mm |
| 81 | 503193037 | Bushing |
| 82 | 503193097 | Bushing |
| 83 | 503193148 | SPHERICAL BEARING - Call your local BRP dealership |
| 84 | 503193218 | Bushing |
| 85 | 503193227 | Bolt M10 X 251MM |
| 86 | 503193332 | STRAP AXLE - Call your local BRP dealership |
| 88 | 503193833 | Black Runner 163" |
| 88 | 503194225 | RAIL_SUSPENSION 174 BLACK - Call your local BRP dealership |
| 89 | 503193372 | Screw M8 X 90 |
| 90 | 503194296 | Rear Arm Ass'y This part replaces 503193419. |
| 92 | 503193435 | Pivot Axle |
| 93 | 503193439 | Retaining Ring |
| 94 | 503193441 | Upper Shaft |
| 95 | 503193464 | Rocker |
| 99 | 503193699 | Pivot Arm |
| 100 | 503196972 | Lower Shaft This part replaces 503193702. |
| 104 | 503193825 | LH Spring |
| 104 | 503193826 | RH Spring |
| 109 | 503193894 | Casted Support |
| 110 | 503194679 | Stopper Strap This part replaces 503193991. |
| 111 | 503193995 | Washer |
| 112 | 503195197 | Front Arm Ass'y This part replaces 503194020. |
| 113 | 503194029 | SPACER - Call your local BRP dealership |
| 114 | 503194055 | Wheel 200 |
| 115 | 861805521 | Hook Kit This part replaces 503194143. |
| 116 | 503194177 | WASHER - Call your local BRP dealership |
| 117 | 503194200 | Rear Axle |
| 119 | 503194265 | Bolt |
| 120 | 505072663 | Leg Cushion |
| 121 | 516006381 | Runner Decal |
| 122 | 293370090 | INNER CIRCLIP - Call your local BRP dealership |
| 123 | 505073625 | Adjustment Cam |
| 124 | 503191882 | Black, Spring |
| 125 | 503193663 | Protector |
| 127 | 503191872 | Spring Guide |
