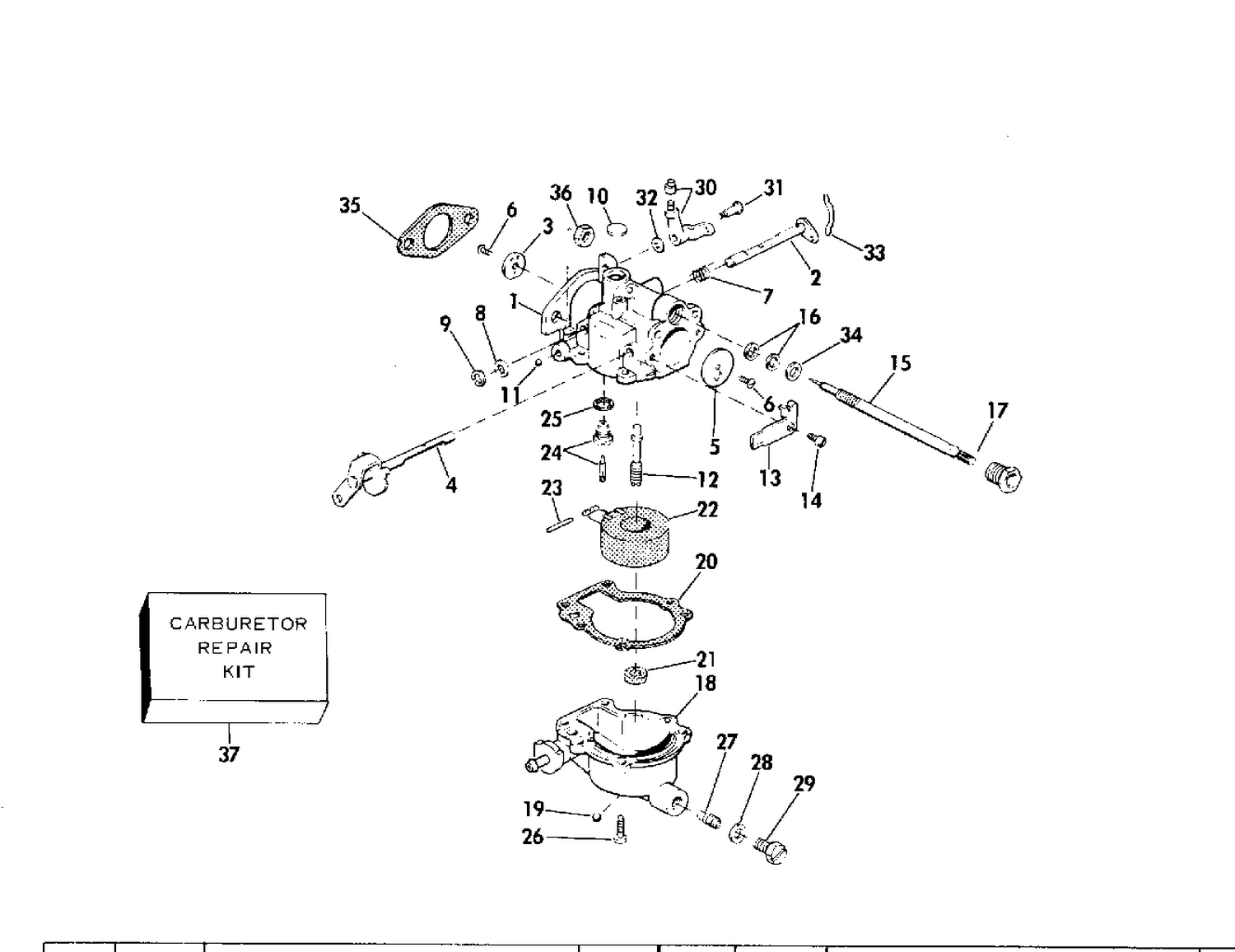

CARBURETOR
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0387415 | BODY ASSY. |
| 3 | 0311756 | THROTTLE VALVE |
| 4 | 0380225 | CHOKE SHAFT AND LEVER |
| 5 | 0313588 | VALVE, Choke |
| 9 | 0203949 | E RING LINK This part replaces 0202755. |
| 12 | 0321098 | NOZZLE,High speed |
| 13 | 0311348 | SPRING, Choke |
| 14 | 0306373 | COTTER PIN, Reverse lock |
| 15 | 0313240 | NEEDLE, Slow speed |
| 18 | 0379687 | FLOAT CHAMBER |
| 21 | 0302984 | GASKET |
| 23 | 0300096 | HINGE PIN |
| 26 | 0307045 | NOZZLE, High speed |
| 29 | 0307832 | PLUG, Screw |
| 30 | 0387420 | CAM FOLLOWER KIT |
| 33 | 0330192 | LINK, Cam follower This part replaces 0312830. |
| 35 | 0303437 | GASKET |
| 36 | 0306397 | NUT |
| 0387355 | 0387355 | CARBURETOR ASSY |
