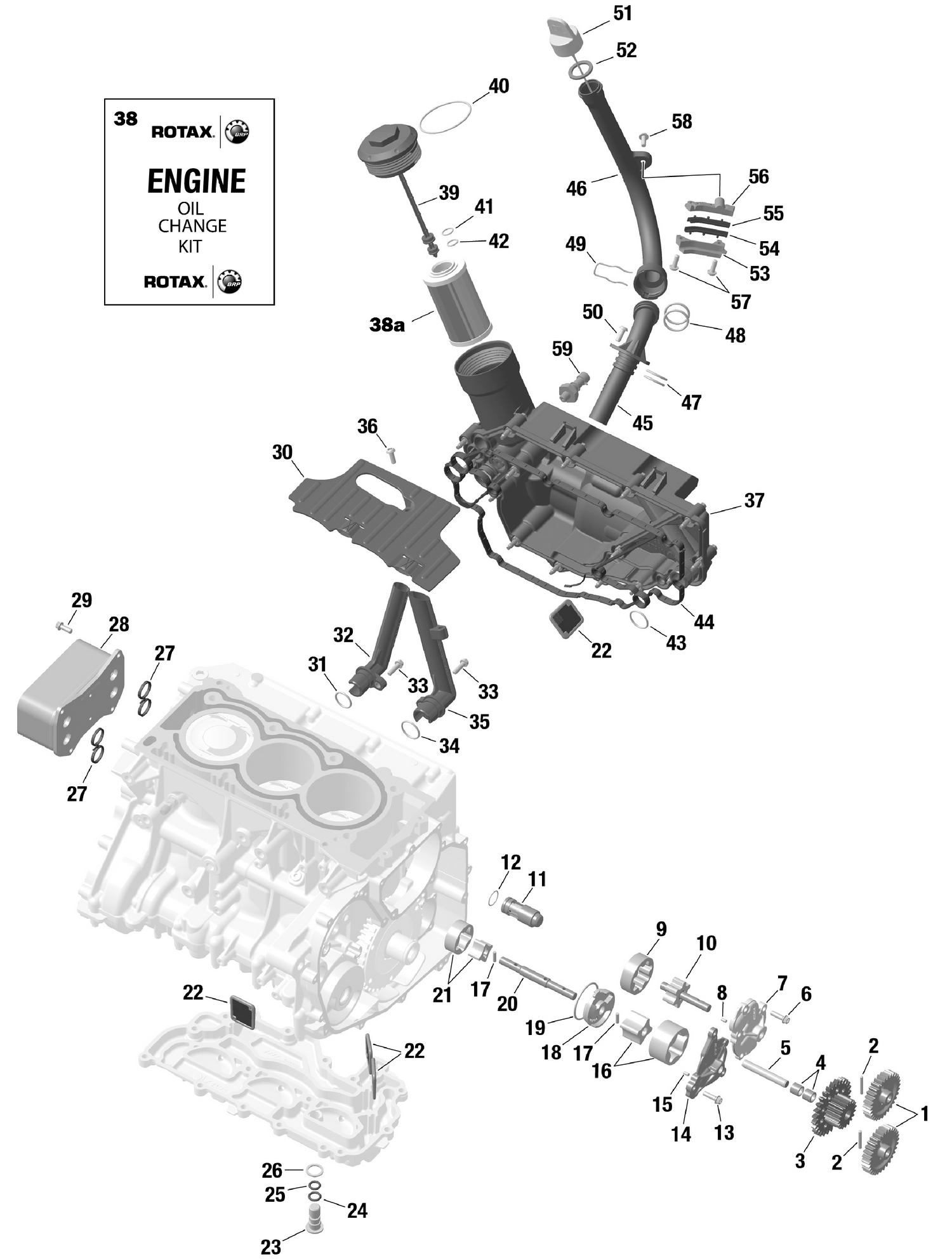

01- ROTAX - Engine Lubrication
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420435170 | Oil Pump Gear 30 Teeth |
| 2 | 420232431 | Needle Pin |
| 4 | 420232031 | Needle Bushing |
| 5 | 420229472 | Pin Cylindrical |
| 6 | 420440207 | Torx Flange Screw M6 X 20 |
| 7 | 420210220 | Oil Pump Cover |
| 8 | 420929075 | Needle Pin |
| 9 | 420956675 | Oil Pump Rotor 16 mm |
| 10 | 420637077 | Shaft And Oil Pump Rotor |
| 12 | 420230405 | O-Ring |
| 13 | 420440207 | Torx Flange Screw M6 X 20 |
| 14 | 420210260 | Oil Pump Cover |
| 15 | 420929075 | Needle Pin |
| 16 | 420256831 | Oil Pump Rotor |
| 17 | 420232731 | Needle Pin |
| 18 | 420210770 | Oil Pump Cover |
| 19 | 420631830 | O-Ring |
| 20 | 420637070 | Oil Pump Shaft |
| 21 | 420956278 | Oil Pump Rotor |
| 22 | 420656885 | Oil Sieve |
| 23 | 420441681 | Screw M14 X 1.5 |
| 24 | 420250460 | O-Ring |
| 25 | 420430115 | O-Ring |
| 26 | 420430624 | Oil Pressure Regulator Gasket Ring This part replaces 420430623. |
| 27 | 420431711 | Gasket |
| 28 | 420888858 | Oil Radiator |
| 29 | 420440162 | Torx Flange Screw M6 X 16 |
| 30 | 420201450 | Baffle |
| 31 | 420430372 | O-Ring |
| 32 | 420210710 | Vent Hose |
| 33 | 420440207 | Torx Flange Screw M6 X 20 |
| 34 | 420430783 | O-Ring |
| 35 | 420224810 | Vent Hose |
| 36 | 420641588 | Torx Flange Screw M6 X 16 |
| 37 | 420893282 | Oil Tank Cover Ass'y |
| 38 | 9779249 | Spyder Oil Change Kit 5W40 1330 |
| 38a | 420956744 | Oil Filter |
| 40 | 420850482 | O-Ring |
| 41 | 420950812 | O-Ring |
| 42 | 420650927 | O-Ring |
| 43 | 420931636 | O-Ring |
| 44 | 420431990 | Gasket |
| 46 | XXX | Not Available As Spare Parts |
| 47 | 420631876 | O-Ring |
| 48 | 420430140 | O-Ring |
| 49 | 420939343 | Spring Clip |
| 50 | 420641588 | Torx Flange Screw M6 X 16 |
| 52 | 420431791 | Gasket Ring |
| 54 | 420841103 | Torx Flange Screw M6 X 20 |
| 55 | XXX | Not Available As Spare Parts |
| 56 | XXX | Not Available As Spare Parts |
| 57 | 420841103 | Torx Flange Screw M6 X 20 |
| 58 | 420641588 | Torx Flange Screw M6 X 16 |
