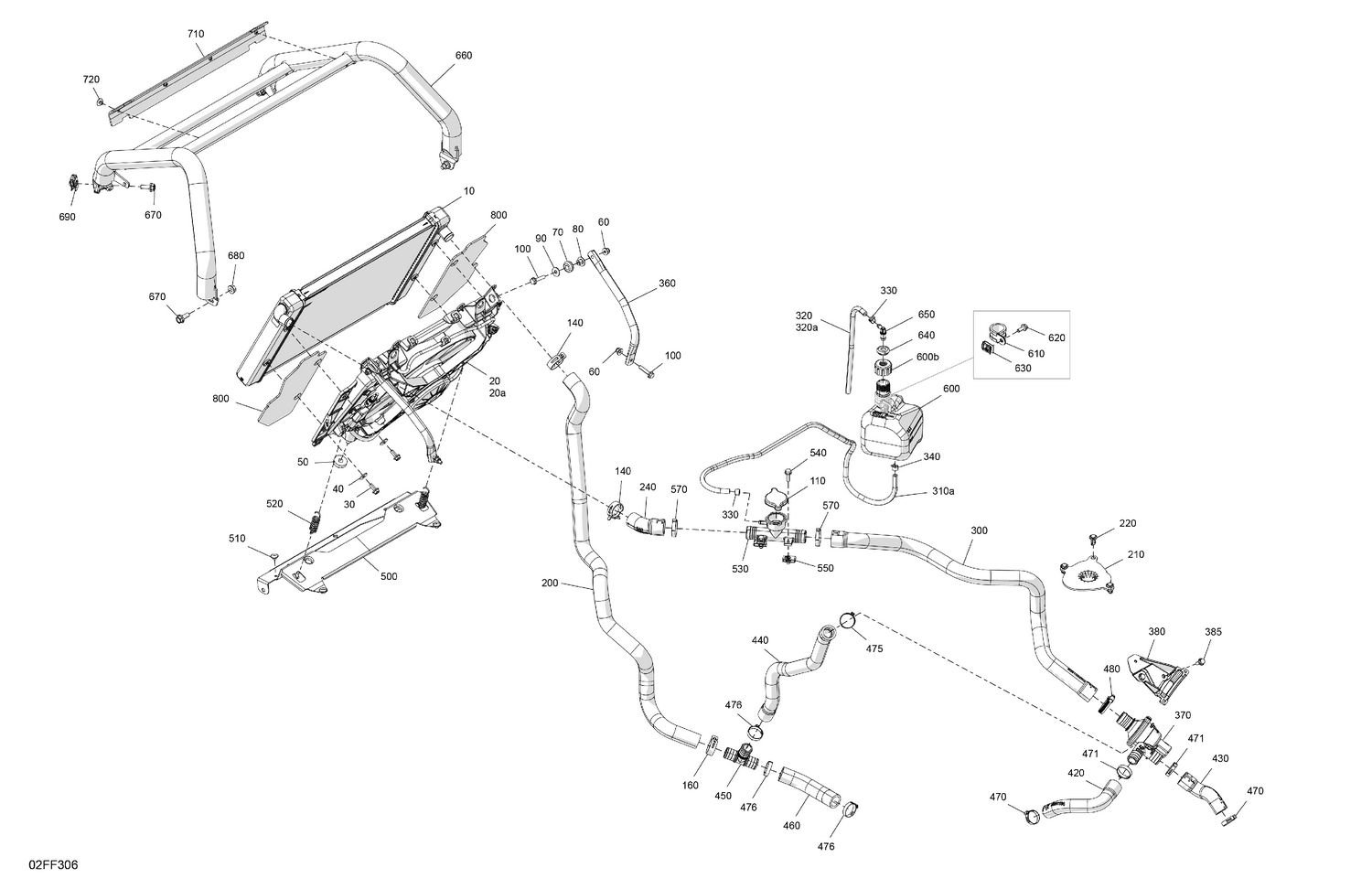

02- Engine - Cooling
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709201126 | Radiator |
| 20a | 710011698 | Fuse 20 A |
| 30 | 250000906 | Hex Flange Screw M6 X 16 |
| 40 | 234062410 | Flat Washer 6 mm |
| 50 | 709200948 | Grommet |
| 60 | 233261466 | Hex. Flange Elastic Nut M6 |
| 70 | 293720130 | Overmolded Grommet |
| 80 | 709001288 | Bushing |
| 90 | 250200082 | Flat Washer |
| 100 | 207663046 | Hex. Flange Screw M6 X 30 |
| 110 | 709200207 | Radiator Pressure Cap |
| 140 | 293650108 | Norma Spring Clamp |
| 160 | 293650108 | Norma Spring Clamp |
| 200 | 709201591 | Radiator Hose |
| 210 | 709201461 | Plug |
| 220 | 293150230 | Tuflok Plastic Rivet |
| 240 | 709201593 | Coolant Hose |
| 300 | 709201595 | Hose |
| 310a | 219704389 | Polyurethane Hose 4000MM Long |
| 320a | XXX | Not Available As Spare Parts |
| 330 | 414554800 | Spring Clamp |
| 340 | 414420700 | Spring Clamp |
| 360 | 709201205 | Tube |
| 370 | 709201279 | Housing |
| 380 | 709201282 | Thermostat Support |
| 385 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 420 | 709201596 | Thermostat Hose |
| 430 | 709201597 | Thermostat Hose |
| 440 | 709201598 | Thermostat Hose |
| 450 | 709201420 | T-Fitting |
| 460 | 709201599 | Water Pump Hose |
| 470 | 293650099 | Crimp Clamp |
| 471 | 293650331 | Crimp Clamp |
| 475 | 293650331 | Crimp Clamp |
| 476 | 293650331 | Crimp Clamp |
| 480 | 293650098 | Norma Gear Clamp |
| 500 | 709201380 | Support |
| 510 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 520 | 705600792 | Brake Pedal Spring |
| 530 | 709200422 | Filler Neck |
| 540 | 207662034 | Hex. Flange Screw M6 X 20 |
| 550 | 250100198 | Panel Nut M6 X 1.0 |
| 570 | 293650332 | Crimp Clamp |
| 600 | 703501190 | Coolant Tank Ass'y |
| 600b | 709200586 | Cap |
| 610 | 709200036 | Hose Anchor |
| 620 | 207662034 | Hex. Flange Screw M6 X 20 |
| 630 | 250100208 | Panel Nut M6 X 1.0 |
| 640 | 705003264 | Grommet |
| 650 | 414580700 | Male Connector |
| 660 | 705213185 | Liquid Titan, Bumper Reinforcement |
| 670 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 680 | 233181414 | Hex. Flange Nut M8 |
| 690 | 250100236 | Panel Nut M8 X 1.25 |
| 710 | 709201191 | Gasket |
| 720 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
