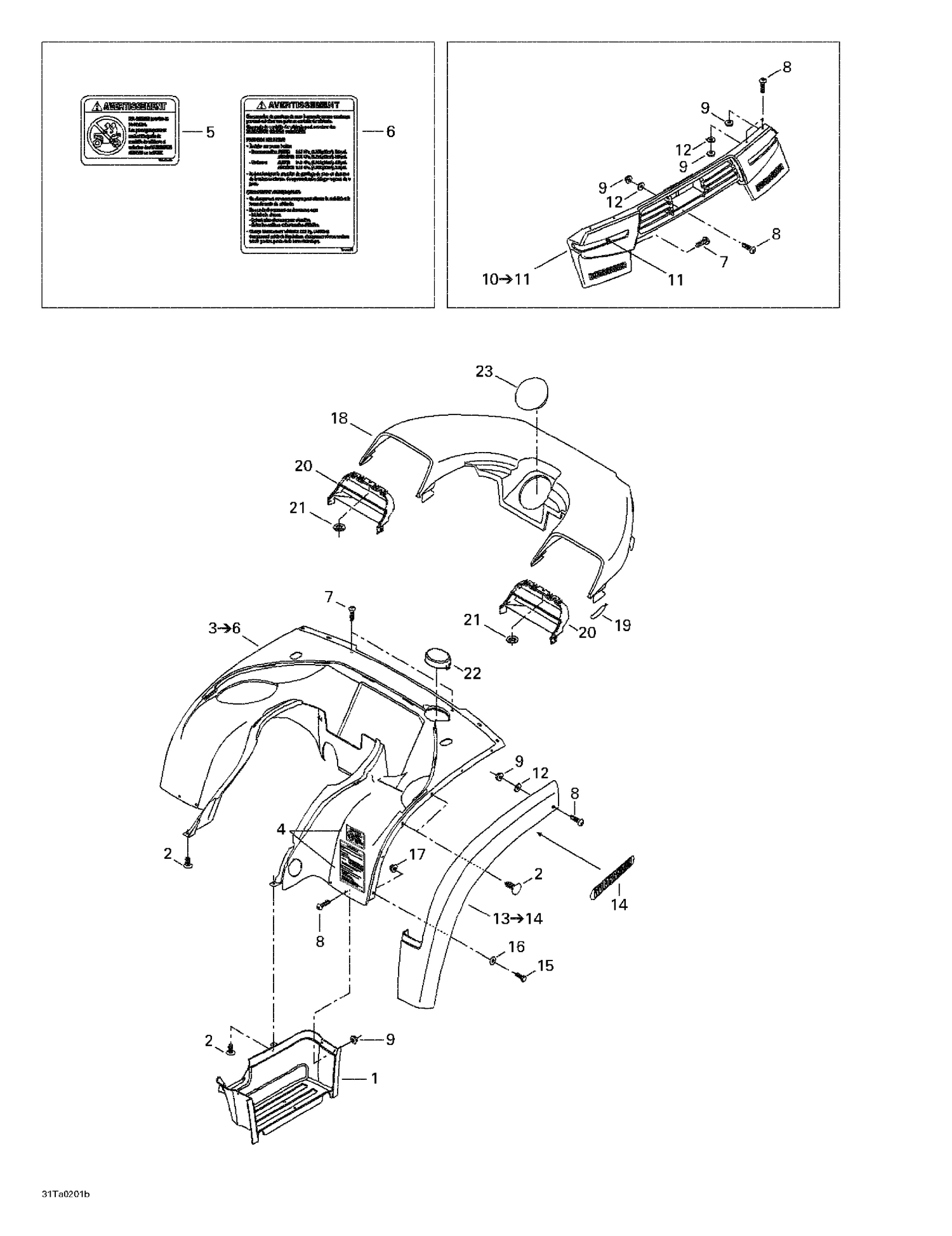

| Ref | Part Number | Description |
|---|
| 1 |
705000017 |
RH Footboard, Black |
| 2 |
293730011 |
Black, Dart |
| 7 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 8 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
704900085 |
RH Rear Reflector |
| 12 |
224060201 |
Flat Washer |
| 14 |
704900026 |
Bombardier label |
| 15 |
207162044 |
Hex. Screw M6 X 20 |
| 16 |
224060201 |
Flat Washer |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
705000193 |
Fender cover |
| 19 |
570023800 |
Windshield Latch |
| 20 |
705000180 |
LH Grill, Black |
| 21 |
250100000 |
PUSH NUT - Call your local BRP dealership |
| 22 |
705000132 |
COVER, BLACK - Call your local BRP dealership |
| 703500017 |
Garde-Boue |
Arrière Droit 703500017 |
| 703500017 |
RH |
Rear Mudguard 703500017 |
| 703500139 |
Rear |
Fender Kit (Yellow) (English) 703500139 |
| 704900086 |
Bande |
Réfléchissante Arrière GA 704900086 |
| 704900086 |
LH |
Rear Reflector 704900086 |
| 705000018 |
LH |
FOOTBOARD, BLACK - Call your local BRP dealership 705000018 |
| 705000018 |
Marchepied |
GA, Noir - Appelez votre concessionnaire BRP local 705000018 |
| 705000179 |
Fender |
Cover, Yellow 705000179 |
| 705000181 |
Louvre |
DR, Noir 705000181 |
| 705000181 |
RH |
Grill, Black 705000181 |
