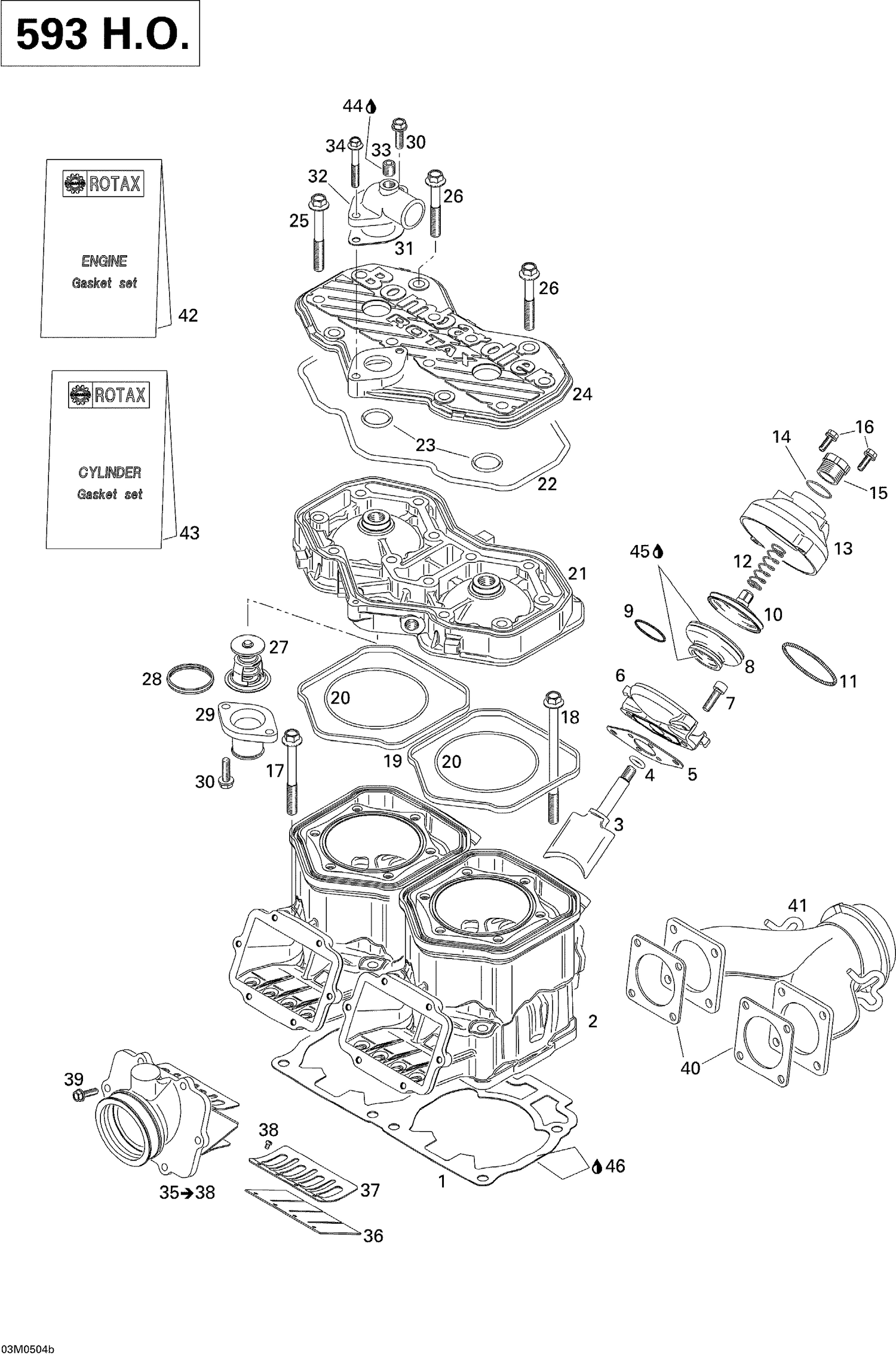

01- Cylinder, Exhaust Manifold And Reed Valve 593HO

01- Cylinder, Exhaust Manifold And Reed Valve 593HO

Parts (47)

RefPart NumberDescription
1 420431160 Gasket 0.5 mm This part replaces 420931893.
1 420431161 Gasket 0.6 mm This part replaces 420931892.
1 420431162 Gasket 0.7 mm This part replaces 420931894.
1 420431163 Double Gasket 0.8 mm This part replaces 420931895.
2 420613714 CYLINDER WITH SLEEVE - Call your local BRP dealership
3 420854650 Exhaust Valve
4 420931542 Gasket
5 420430110 O-Ring
6 420854455 Valve Housing
7 205062544 Socket Head Screw M6 X 25
8 420260729 Bellows
9 420838255 Hose Spring
10 420854449 Exhaust Valve
11 420939281 Hose Spring This part replaces 420939280.
12 420239954 Spring This part replaces 420239944.
13 420911559 Valve Cover This part replaces 420911558.
14 420430220 O-Ring
15 420241221 Adjuster Screw
16 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
17 420640524 Hex. Collar Screw
18 420640534 Hex. Collar Screw
19 420931590 Rubber Ring
20 293300026 O-Ring
21 420613700 CYLINDER HEAD, SILVER - Call your local BRP dealership
22 420950320 O-Ring
23 420430782 O-Ring
24 420923465 CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460.
25 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
26 420941627 Hex. Screw M8 X 56.5 This part replaces 420941621.
27 420922519 Thermostat This part replaces 420922518.
28 420931272 Sealing Ring
29 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
30 420941251 SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
31 420850339 Gasket This part replaces 420850338.
32 420922062 BENT OUTLET SOCKET - Call your local BRP dealership
33 420240480 PLUG SCREW - Call your local BRP dealership
34 420941451 HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
36 420924680 Reed Pedal
37 420924695 Reed Pedal Stop
38 420941215 Phillips Screw M3 X 5
39 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
40 420850552 Gasket
41 420673072 EXHAUST MANIFOLD - Call your local BRP dealership This part replaces 420673070.
42 420889931 Gasket Set, Engine This part replaces 420889922.
43 420889936 Gasket Set, Cylinder This part replaces 420889926.
44 293800060 Loctite 243, 10 ml
45 420297907 Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
