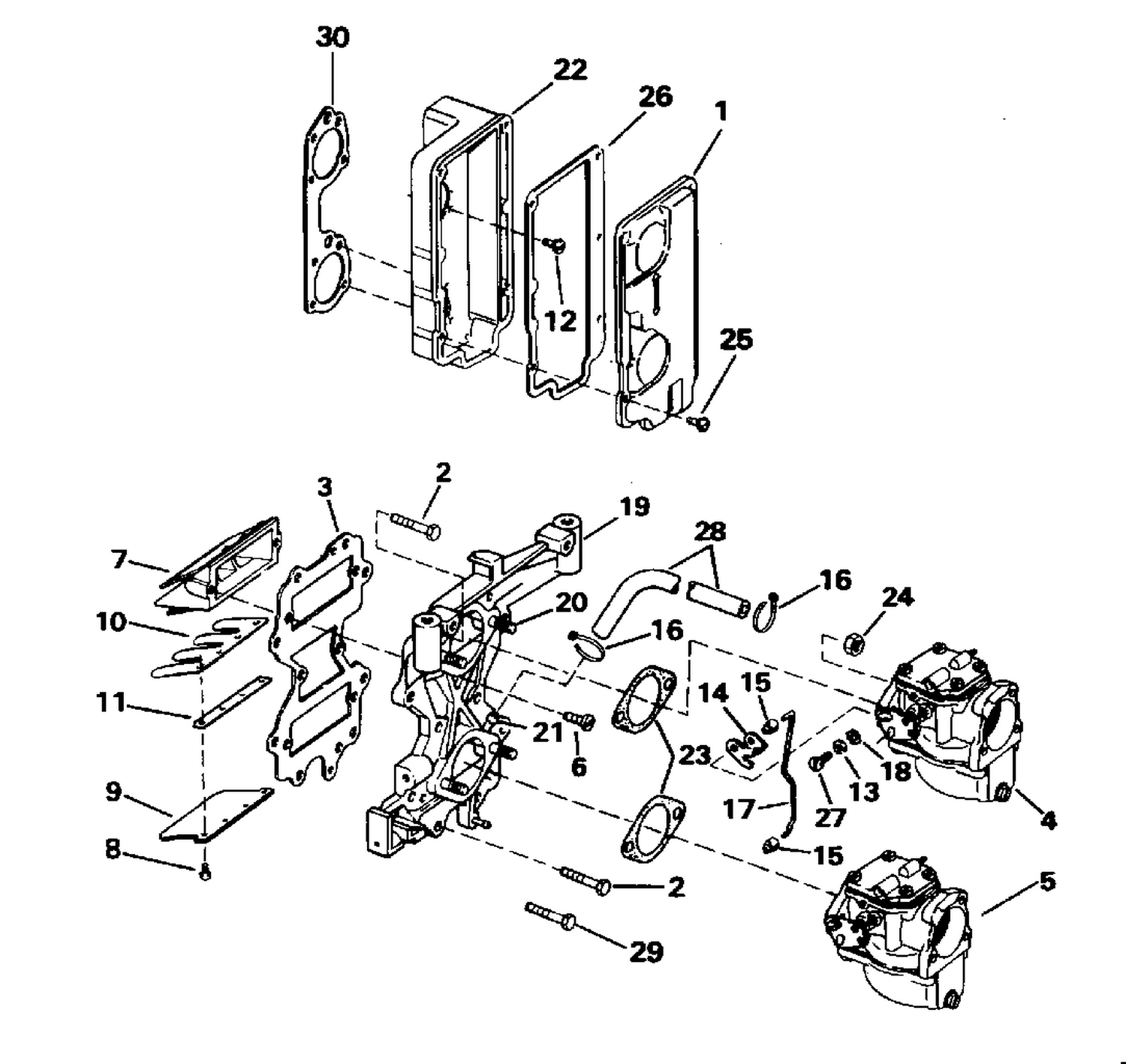

| Ref | Part Number | Description |
|---|
| 1 |
0329396 |
COVER |
| 2 |
0306409 |
VIS, collecteur vers carter-moteur |
| 3 |
0335633 |
GASKET |
| 4 |
CARBURETOR |
ASSY., Upper |
| 5 |
CARBURETOR |
ASSY., Lower |
| 6 |
0306474 |
SCREW |
| 7 |
0389823 |
CLAPET |
| 14 |
0329418 |
LEVER, Synchronization adj. |
| 15 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 16 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 17 |
0329888 |
LINK |
| 19 |
0431988 |
MANIFOLD ASSY. |
| 22 |
0431994 |
BASE, Air silencer |
| 23 |
0325092 |
GASKET |
| 24 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 26 |
0330698 |
GASKET |
| 28 |
HOSE, |
Air silencer to manifold, 5 in. (125mm) |
| 29 |
0306418 |
VIS, ancrage |
