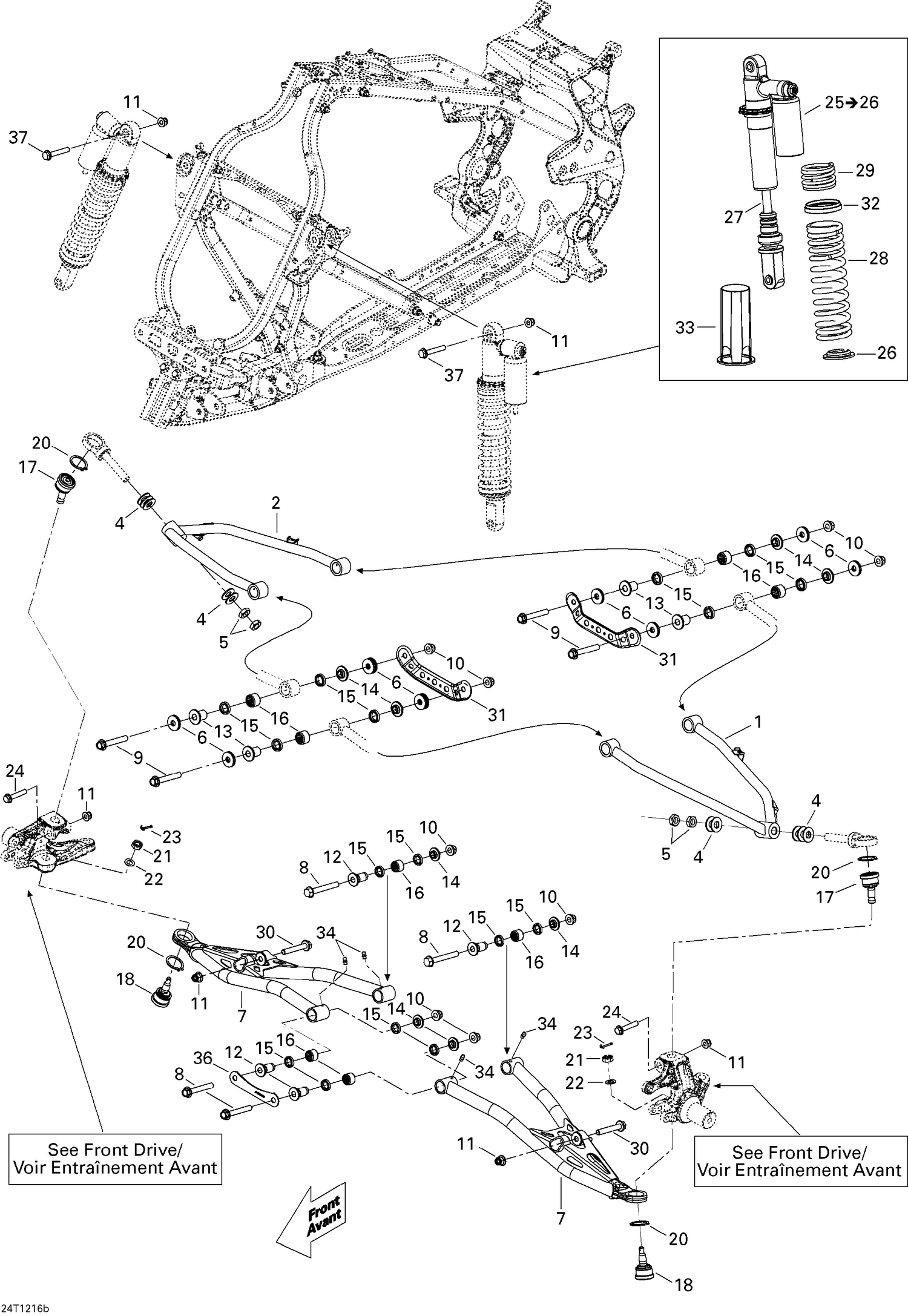

07- Front Suspension Xmx
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706201128 | LH UPPER ARM - Call your local BRP dealership |
| 2 | 706201134 | RH UPPER ARM - Call your local BRP dealership |
| 4 | 250200079 | FLAT WASHER - Call your local BRP dealership |
| 5 | 232170411 | Hex. Jam Nut M14 |
| 6 | 250200014 | Flat Washer M10 |
| 7 | 706201398 | LOWER ARM - Call your local BRP dealership |
| 8 | 207607036 | SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 9 | 207607546 | Hex. Flange Screw M10 X 75 |
| 10 | 233201436 | Hex. Flange Elastic Nut M10 |
| 11 | 233201434 | Hex. Flange Elastic Nut M10 |
| 12 | 706200890 | INNER BUSHING - Call your local BRP dealership |
| 13 | 706200888 | Inner Bushing |
| 14 | 706200889 | INNER BUSHING - Call your local BRP dealership |
| 15 | 293200120 | SEAL - Call your local BRP dealership |
| 16 | 293350064 | Needle Bearing |
| 17 | 706200462 | UPPER BALL JOINT - Call your local BRP dealership |
| 18 | 706200461 | LOWER BALL JOINT - Call your local BRP dealership |
| 20 | 293370009 | Circlip 32 mm |
| 21 | 250100094 | CASTLE NUT - Call your local BRP dealership |
| 22 | 234001410 | Flat Washer 10 mm |
| 23 | 250400035 | Cotter Pin |
| 24 | 207605534 | Hex. Flange Screw |
| 25 | 706201592 | LH FRONT SHOCK - Call your local BRP dealership |
| 26 | 706000567 | Spring Stopper |
| 27 | 715500330 | Front Piston And Rod Kit |
| 28 | 706200833 | Black-Yellow Spring |
| 29 | 706200876 | Black-Yellow Spring |
| 30 | 207605534 | Hex. Flange Screw |
| 31 | 706200532 | FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership |
| 32 | 503191281 | Spring Spacer |
| 33 | 706201286 | ROD PROTECTOR - Call your local BRP dealership |
| 34 | 250000315 | Grease Fitting |
| 36 | 706200722 | Front Suspension Lower Plate |
