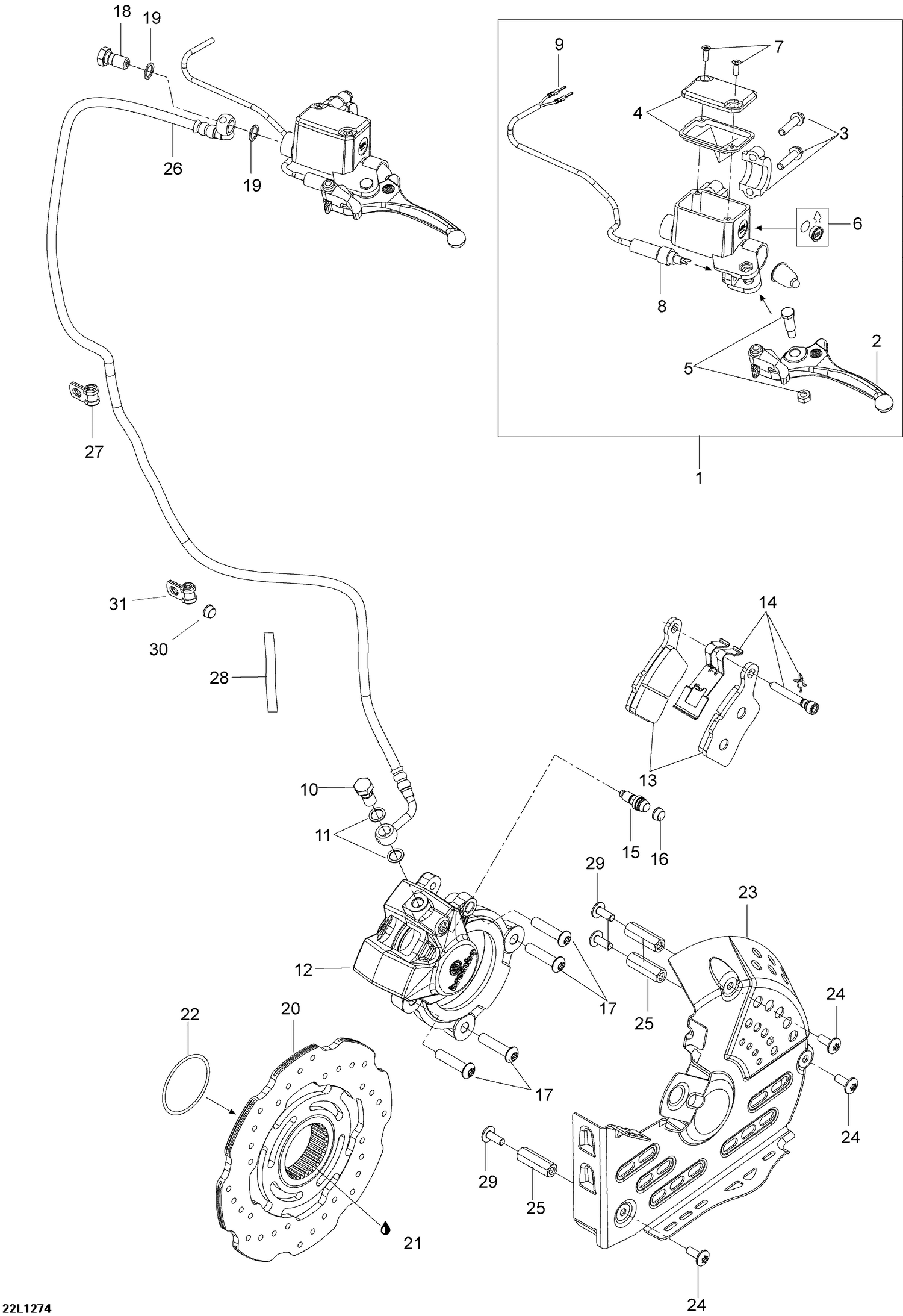

06- Hydraulic Brakes
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 507032428 | LEVER - Call your local BRP dealership |
| 3 | 507032477 | Clamp |
| 4 | 415029900 | Cap |
| 5 | 415030000 | Pin Ass'y |
| 6 | Not | Available As Spare Part - Window |
| 7 | 216141260 | SCREW M4 X 12 - Call your local BRP dealership |
| 9 | 515175232 | Male Terminal |
| 10 | 507032551 | Banjo Bolt This part replaces 507032539. |
| 11 | 705601628 | Copper Washer This part replaces 705600310. |
| 13 | 507032489 | Brake Pads Kit |
| 13 | 619690016 | Brake Pads Kit Racing |
| 14 | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 15 | Not | Available As Spare Part - Bleeder |
| 16 | Not | Available As Spare Part - Boot |
| 17 | 250000764 | Torx Screw M8 x 35 This part replaces 250000301. |
| 18 | 507032551 | Banjo Bolt This part replaces 507032539. |
| 19 | 705601628 | Copper Washer This part replaces 705600310. |
| 20 | 507032513 | Disk |
| 21 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 22 | 293300134 | O-Ring |
| 23 | 507032446 | Disk Protector, Aluminum |
| 24 | 250000365 | Torx Screw M6 X 16 |
| 25 | 507032497 | Threaded Tube |
| 26 | 507032517 | HOSE - Call your local BRP dealership |
| 27 | 293650256 | Clamp This part replaces 705600459. |
| 28 | 409901700 | Tubing 9 mm |
| 29 | 207761644 | Carriage Bolt M6 X 16 |
| 30 | 293900098 | BUSHING - Call your local BRP dealership |
