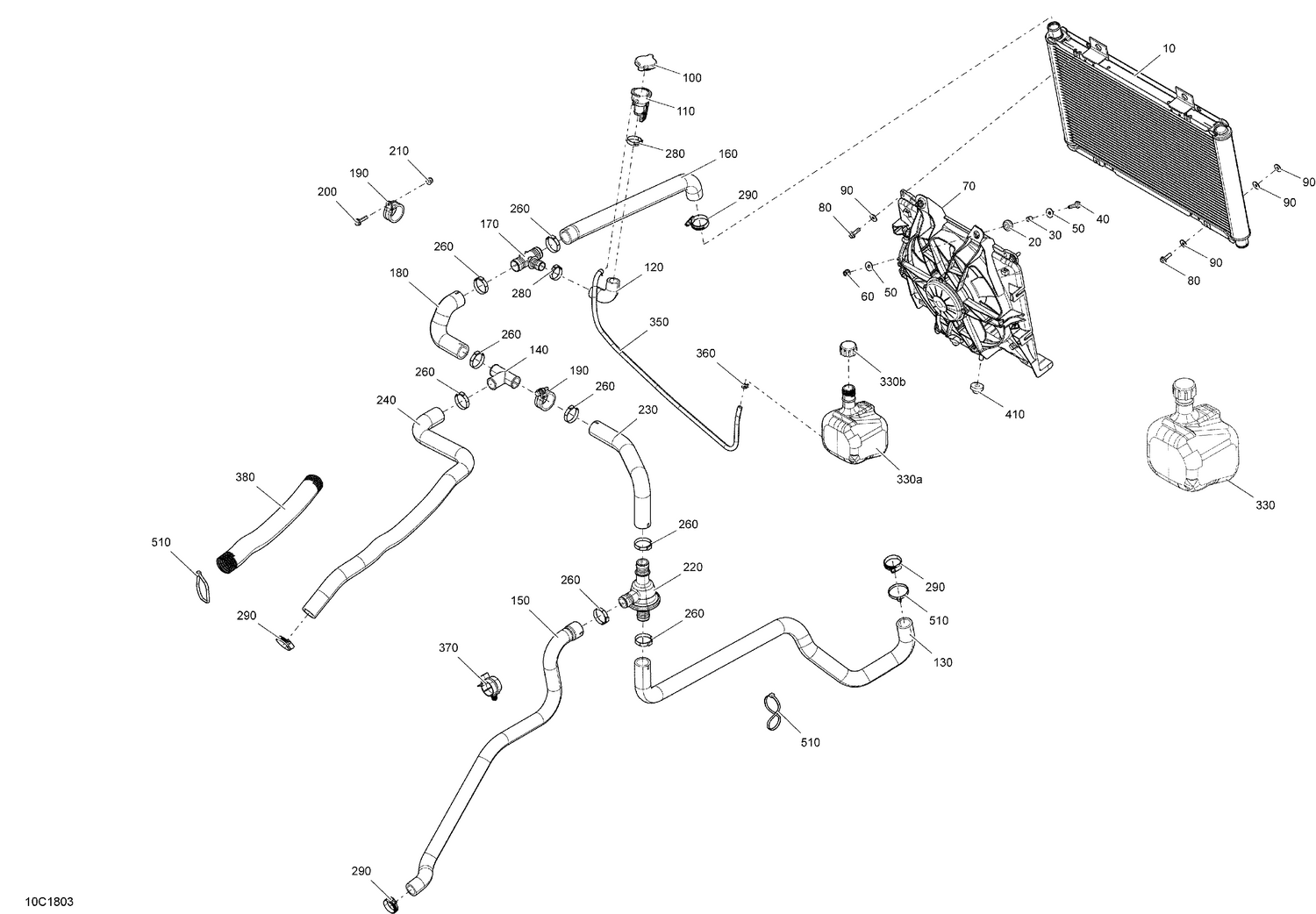

01- Cooling Maverick
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200395 | Radiator |
| 20 | 709000582 | Grommet This part replaces 293720053. |
| 30 | 293900105 | Bushing |
| 40 | 207662534 | Hex. Flange Screw M6 X 25 |
| 50 | 250200082 | Flat Washer |
| 60 | 233261434 | Flange Elastic Nut M6 |
| 70 | 709200564 | Fan Ass'y |
| 80 | 207662044 | Hex. Flange Screw M6 X 20 |
| 90 | 234062410 | Flat Washer 6 mm |
| 100 | 709200207 | Radiator Pressure Cap |
| 110 | 709200179 | Filler Neck |
| 120 | 709200862 | Filler Neck Hose This part replaces 709200439. |
| 130 | 709200865 | Radiator Inlet Hose This part replaces 709200444. |
| 140 | 509000219 | T-Fitting |
| 160 | 709200445 | Outlet Hose |
| 170 | 509000372 | T-Fitting |
| 180 | 709200443 | Hose |
| 190 | 293650218 | Hose Retainer |
| 200 | 207662534 | Hex. Flange Screw M6 X 25 |
| 210 | 233261434 | Flange Elastic Nut M6 |
| 220 | 709200406 | Thermostat |
| 230 | 709200906 | Hose This part replaces 709200447. |
| 260 | 509000162 | Gear Clamp |
| 280 | 293650099 | Crimp Clamp |
| 290 | 293650098 | Norma Gear Clamp |
| 330a | 709200624 | Coolant Tank Ass'y This part replaces 709200504. |
| 330b | 709200587 | Tank Cap |
| 350 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 360 | 414554800 | Spring Clamp |
| 370 | 275500590 | Retainer |
| 380 | 219704428 | Tubing 35 MM 1000MM Long |
| 410 | 709200285 | Grommet |
