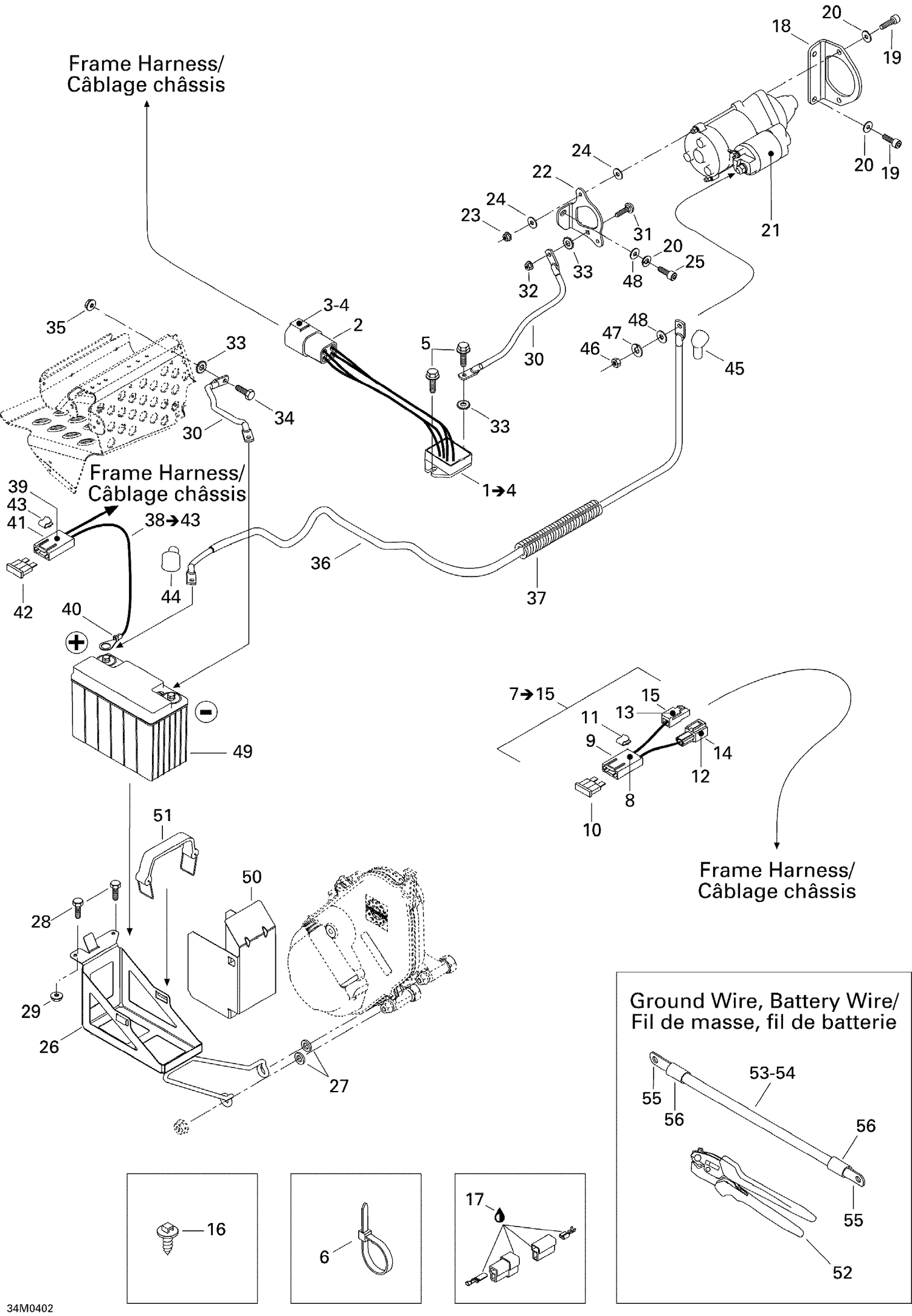

| Ref | Part Number | Description |
|---|
| 2 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 3 |
515175568 |
Male Terminal |
| 4 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 5 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 6 |
293750001 |
Tie Wrap 94 mm |
| 6 |
293750009 |
Tie-Rap 173 mm |
| 6 |
414115200 |
Tie-Rap 180 mm |
| 8 |
409011600 |
Female Terminal |
| 9 |
409004000 |
Fuse Holder |
| 10 |
409003900 |
Fuse, 20 Amperes |
| 11 |
409014200 |
CLIP - Call your local BRP dealership |
| 12 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 13 |
515175282 |
Female Terminal |
| 14 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 15 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 16 |
293730040 |
Mount Dart This part replaces 293730018. |
| 17 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 19 |
205082044 |
Socket Head Screw M8 X 20 |
| 20 |
234181401 |
Lock Washer 8 mm |
| 21 |
515175795 |
STARTER ASS'Y - Call your local BRP dealership |
| 23 |
232551414 |
Elastic Stop Nut M5 |
| 24 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 25 |
205082044 |
Socket Head Screw M8 X 20 |
| 26 |
515175718 |
Battery Support |
| 27 |
503175800 |
Washer |
| 28 |
207151444 |
Hex. Screw M5 X 14 |
| 29 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 30 |
Not |
Available As Spare Part - Ground Wire |
| 31 |
207762044 |
Carriage Bolt M6 X 20 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
250200041 |
Lock Washer Serrated M6 |
| 34 |
207161644 |
Hex. Screw M6 X 16 |
| 35 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 36 |
Not |
Available As Spare Part - Battery Wire |
| 37 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 39 |
409004489 |
Female Terminal |
| 40 |
278000992 |
Open Barrel |
| 41 |
409004000 |
Fuse Holder |
| 42 |
410917200 |
Fuse, 30 Amperes |
| 43 |
409014200 |
CLIP - Call your local BRP dealership |
| 44 |
570151000 |
Protection Cap |
| 45 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 46 |
232081414 |
Hex. Nut M8 |
| 47 |
234181401 |
Lock Washer 8 mm |
| 48 |
234081410 |
Flat Washer 8 mm |
| 49 |
410301203 |
Battery YUASA YTX20L |
| 50 |
515175643 |
DEFLECTOR - Call your local BRP dealership |
| 51 |
515176044 |
Battery Strap This part replaces 515175475. |
| 52 |
529035730 |
Crimp Plier |
| 53 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 53 |
278001681 |
Ground Cable Battery, No. 4, Meter |
| 54 |
278001690 |
Cable Battery, no 6, meter) |
| 55 |
278001682 |
Terminal 45°, Small Hole |
| 55 |
278001683 |
TERMINAL 45, SMALL HOLE - Call your local BRP dealership |
| 55 |
278001684 |
TERMINAL 90, SMALL HOLE - Call your local BRP dealership |
| 55 |
278001685 |
FLAT TERMINAL, BIG HOLE - Call your local BRP dealership |
| 55 |
278001686 |
TERMINAL 45, BIG HOLE - Call your local BRP dealership |
| 55 |
278001687 |
TERMINAL 90, BIG HOLE - Call your local BRP dealership |
| 55 |
278001688 |
FLAT TERMINAL - Call your local BRP dealership |
