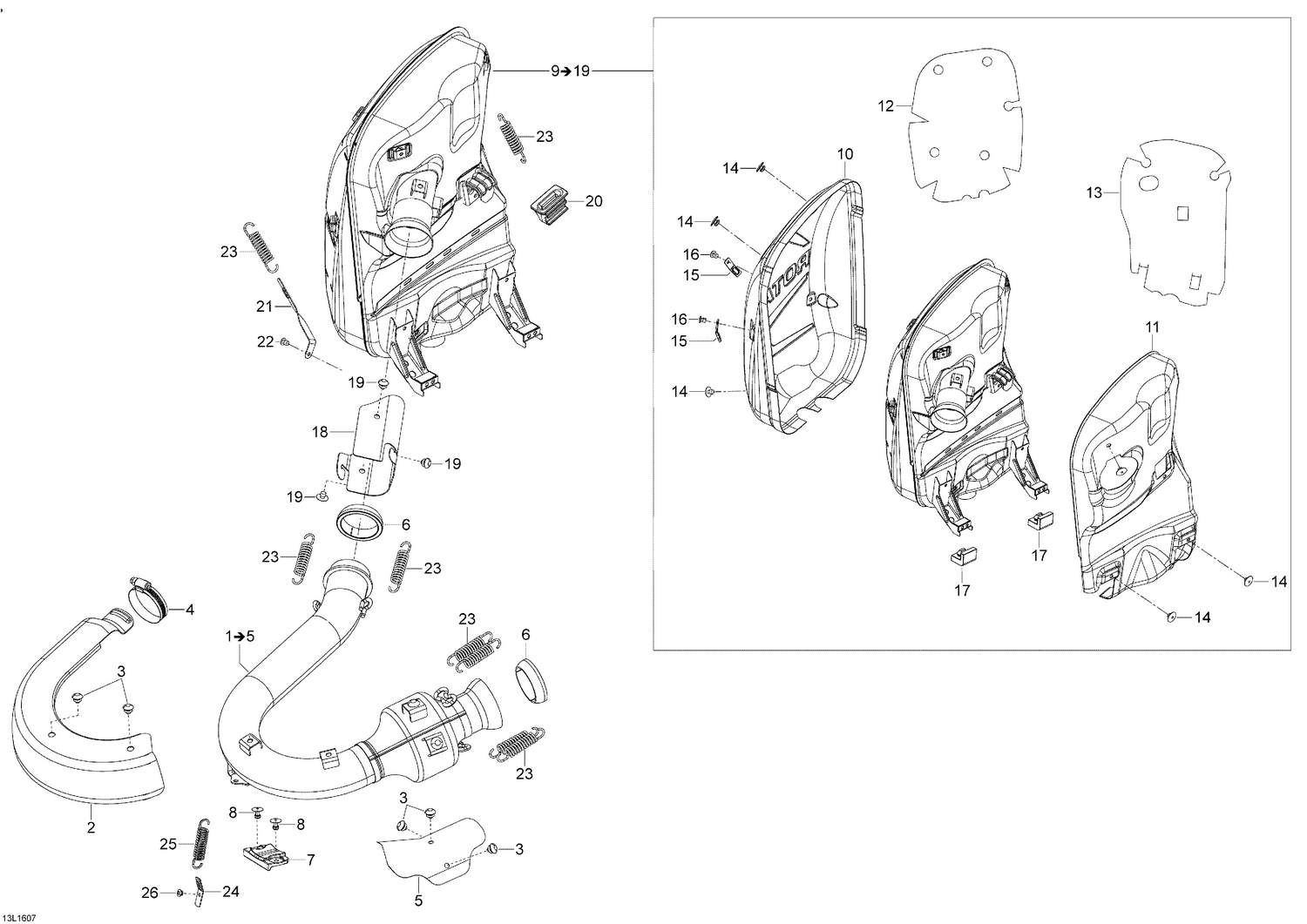

01- Exhaust System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 514054397 | Deflector |
| 3 | 293150173 | Rivet |
| 4 | 293650036 | Clamp |
| 5 | 514054724 | DEFLECTOR - Call your local BRP dealership |
| 6 | 514054174 | Exhaust Gasket |
| 7 | 514054275 | Bumper |
| 8 | 293150103 | Pop Rivet 3/16 |
| 10 | 514054474 | RH HEAT SHIELD - Call your local BRP dealership |
| 11 | 514054369 | LH HEAT SHIELD - Call your local BRP dealership |
| 12 | 514054256 | INSULATING WOOL - Call your local BRP dealership |
| 13 | 514054257 | INSULATING WOOL - Call your local BRP dealership |
| 14 | 390910000 | Pop Rivet 3/16 |
| 15 | 514054522 | Spring Bracket |
| 16 | 390909200 | Avex Rivet |
| 17 | 514054529 | Lower Stopper |
| 18 | 514054396 | DEFLECTOR - Call your local BRP dealership |
| 19 | 293150173 | Rivet |
| 20 | 514054346 | Stopper |
| 21 | 514055030 | Spring Bracket |
| 22 | 390909100 | Avex Rivet |
| 23 | 415107100 | Spring |
| 24 | 514054522 | Spring Bracket This part replaces 514054391. |
| 25 | 415107100 | Spring |
