Parts Catalog

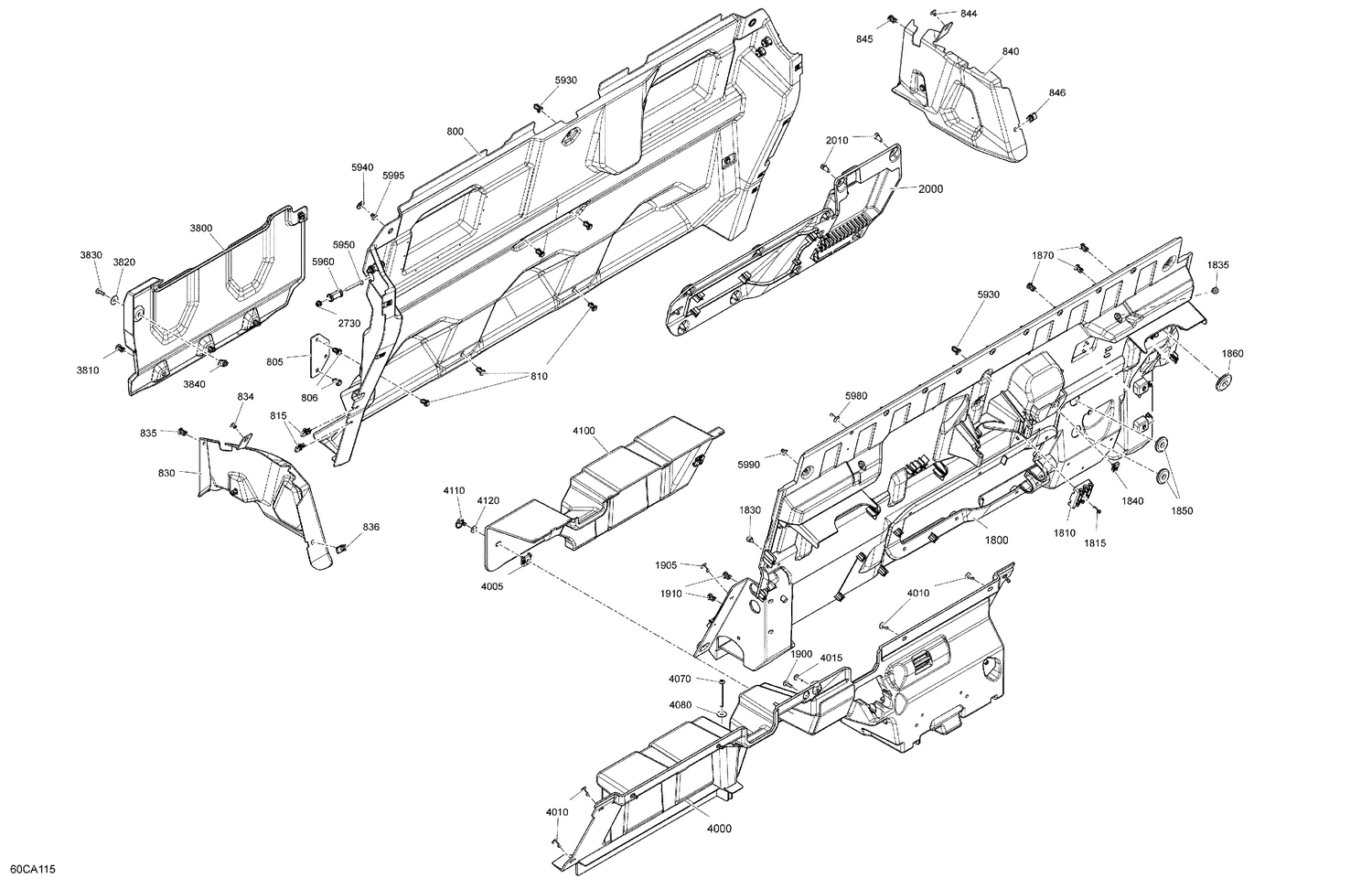

07- Cab Interior - Back Wall

Parts (48)

Ref	Part Number	Description
800	715006545	Median Deflector Ass'y
805	707900469	Plate
806	293150230	Tuflok Plastic Rivet
810	293150230	Tuflok Plastic Rivet
815	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
830	707900994	LH Lower Panel This part replaces 707900443.
834	293150104	Pop Rivet 3/16"
835	293150230	Tuflok Plastic Rivet
836	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
840	707900444	RH Lower Cover
844	293150104	Pop Rivet 3/16"
845	293150230	Tuflok Plastic Rivet
846	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
1800	707900715	Rear Upper Cab Panel
1810	707900788	Hose Support
1815	250000720	Torx Screw K50 X 16
1830	293830005	Rubber Bumper
1835	293830005	Rubber Bumper
1840	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
1850	293720119	Grommet
1860	293720119	Grommet
1870	293150230	Tuflok Plastic Rivet
1900	250000722	Torx Screw M6 X 20
1905	293150100	Pop Rivet 3/16"
1910	293150230	Tuflok Plastic Rivet
2000	707900742	Rear Access Cover
2010	250000712	Torx Screw M6 X 20
2730	250100199	Insert Half Hex Body M6 x 1.0
3800	707900996	Rear Panel This part replaces 707900426.
3810	293150230	Tuflok Plastic Rivet
3820	250200162	Flat Washer M6.6 X 22
3830	250000722	Torx Screw M6 X 20
3840	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
4000	707901074	Rear Lower Cab Panel This part replaces 707900980.
4005	705002651	Quarter Turn Nut
4010	293150100	Pop Rivet 3/16"
4015	250000722	Torx Screw M6 X 20
4070	250000954	Torx Screw M6 X 70
4080	250200162	Flat Washer M6.6 X 22
4100	707900743	Battery Cover
4110	705002649	Quarter Turn Screw
4120	708400286	Washer
5930	293150230	Tuflok Plastic Rivet
5940	292001663	Flat Washer 8 mm, Nylon
5950	250000868	Torx Truss M6 X 50
5960	707900470	Spacer
5980	293150100	Pop Rivet 3/16"
5990	293150103	Pop Rivet 3/16"
