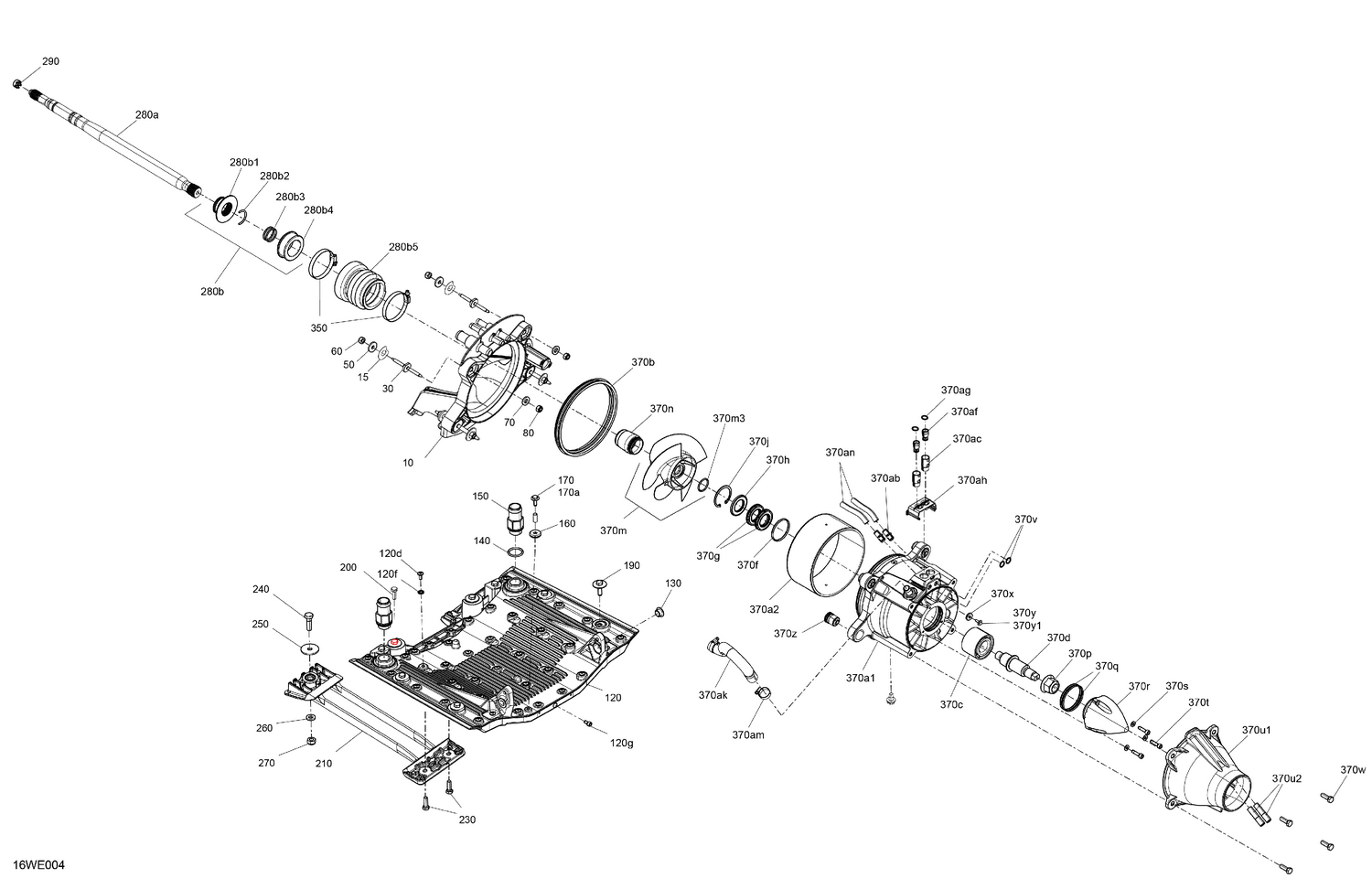

04- DRIVE - Propulsion
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 271002291 | Support Pump |
| 15 | 272000053 | Shim 0.3 mm |
| 30 | 250300653 | Stud M8 X 57 |
| 50 | 279000336 | Flat Washer |
| 60 | 232581200 | Hex. Elastic Nut M8 Brass |
| 70 | 250200175 | Flat Washer 8 mm, Stainless |
| 80 | 232581200 | Hex. Elastic Nut M8 Brass |
| 120d | 250000384 | Torx Screw M6 X 14 |
| 120f | 250200114 | Sealing Washer |
| 120g | 250500005 | Socket Drain Plug M6 X 12 |
| 130 | 293900007 | Venturi Bushing |
| 140 | 293300121 | O-Ring |
| 150 | 293710124 | Strait Fitting |
| 160 | 271001920 | Anode Zinc |
| 170a | 250000965 | Hex Screw M6 X 20 |
| 190 | 250000967 | Hex Sems Screw M8 X 30 |
| 200 | 250001268 | Screw Hex Sems S.Grip M10 X 30 |
| 210 | 271002402 | Intake Grate Pump |
| 230 | 250000968 | Hex Sems Screw M8 X 25 |
| 240 | 250001159 | Hexagonal Head Cap Screw M10 X 35 |
| 250 | 250200194 | Flat Washer |
| 260 | 250200193 | Washer Flat M10 |
| 270 | 232501200 | Elastic Stop Nut M10, Brass |
| 280a | 271002222 | Propeller Shaft |
| 280b1 | 271002206 | Rotary Ring |
| 280b2 | 271001575 | C-Clip |
| 280b3 | 293300219 | O-Ring |
| 280b4 | 271002109 | Carbon Ring |
| 280b5 | 271002194 | Bellow Ass'y |
| 290 | 271002113 | Drive Shaft Plug |
| 350 | 293650179 | Tridon Clamp This part replaces 293650279. |
| 370a1 | 271002286 | Machined Impeller Housing |
| 370a2 | 267000419 | Wear Ring |
| 370ab | 267000782 | Siphon Tube |
| 370ac | 271002328 | Sleeve |
| 370af | 271002327 | Piston |
| 370ag | 293300279 | O'Ring |
| 370ah | 271002329 | Cover |
| 370ak | 276000553 | Formed Hose |
| 370am | 293650284 | Gear Clamp |
| 370b | 271002395 | Pump Gasket |
| 370c | 271002182 | Angled Bearing |
| 370d | 267000388 | Impeller Shaft |
| 370f | 293300090 | O-Ring |
| 370g | 271002071 | Seal |
| 370h | 293200089 | Oil Seal |
| 370j | 293370038 | Circlip |
| 370m3 | 293300044 | O-Ring |
| 370n | 271002225 | Guard |
| 370p | 250100104 | Elastic Flange Nut M20 |
| 370q | 293300086 | O-Ring |
| 370r | 267000428 | Impeller Cover |
| 370s | 234061600 | Stainless Flat Washer M6 |
| 370t | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 370u1 | 271001999 | Venturi Anodized |
| 370u2 | 271002369 | Siphone Tube |
| 370v | 293300013 | O-Ring |
| 370w | 250000968 | Hex Sems Screw M8 X 25 |
| 370x | 271001920 | Anode Zinc |
| 370y1 | 250000965 | Hex Screw M6 X 20 |
| 370z | 271002401 | Carter Housing Bushing |
