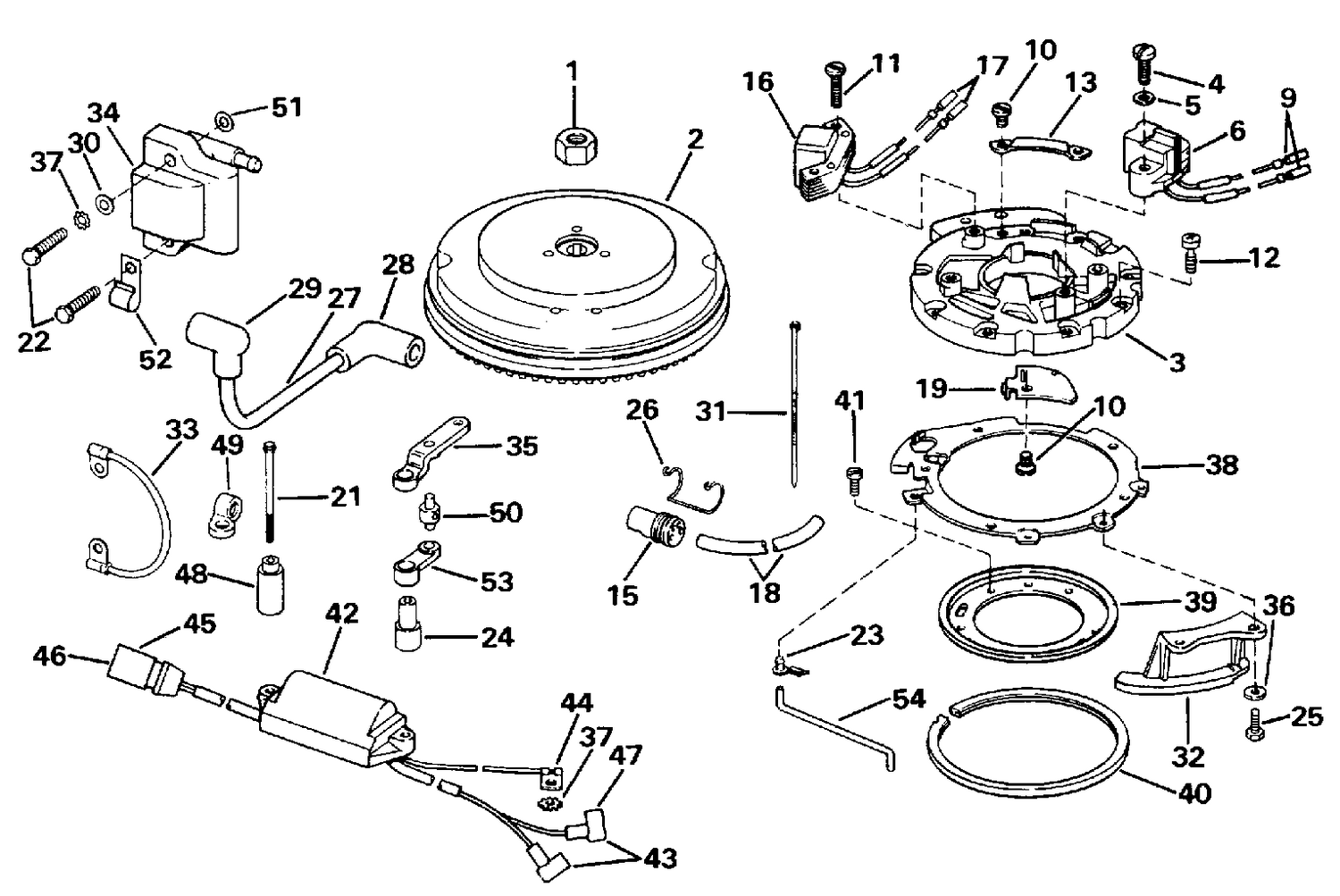

| Ref | Part Number | Description |
|---|
| 2 |
0583914 |
FLYWHEEL ASSEMBLY |
| 3 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 4 |
0319682 |
VIS, capteur vers plaque |
| 6 |
0583387 |
SENSOR ASSEMBLY |
| 10 |
0303212 |
VIS, collier & capot |
| 11 |
0337522 |
VIS, ensemble bobine |
| 12 |
0511460 |
VIS, dispositif de retenue |
| 13 |
0511458 |
COLLIER, fils |
| 16 |
5000611 |
CHARGE COIL & LAM. ASSY. This part replaces 0584504. |
| 18 |
0512765 |
BRACKET |
| 19 |
0511459 |
CACHE, fils |
| 21 |
0324665 |
SCREW, Power pack to bracket |
| 23 |
0380226 |
REATINER ASSEMBLY |
| 24 |
0324664 |
SPACER, Throttle lever |
| 25 |
0322285 |
PLATE & SLEEVE ASSY. |
| 26 |
0512743 |
DISPOSITIF DE RETENUE |
| 27 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 30 |
0329241 |
RONDELLE |
| 31 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 32 |
0333704 |
CAM |
| 33 |
0584472 |
ENSEMBLE FILS, masse |
| 34 |
0582508 |
COIL ASSY |
| 35 |
0324673 |
LEVER, Throttle control |
| 36 |
0306413 |
WASHER |
| 38 |
0331832 |
RETAINER |
| 39 |
0332063 |
PLATE, Support |
| 40 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 41 |
0332070 |
SCREW, Retaining plate This part replaces 0326875. |
| 42 |
0586800 |
POWER PACK ASSEMBLY This part replaces 0582285. |
| 48 |
0324663 |
SPACER, Cable connector |
| 49 |
0324386 |
CONNECTOR, Cable |
| 50 |
0324384 |
CONNECTOR, Cable |
| 51 |
0329176 |
FIBER WASHER, Ignition coil |
| 53 |
0324671 |
LINK, Connector |
