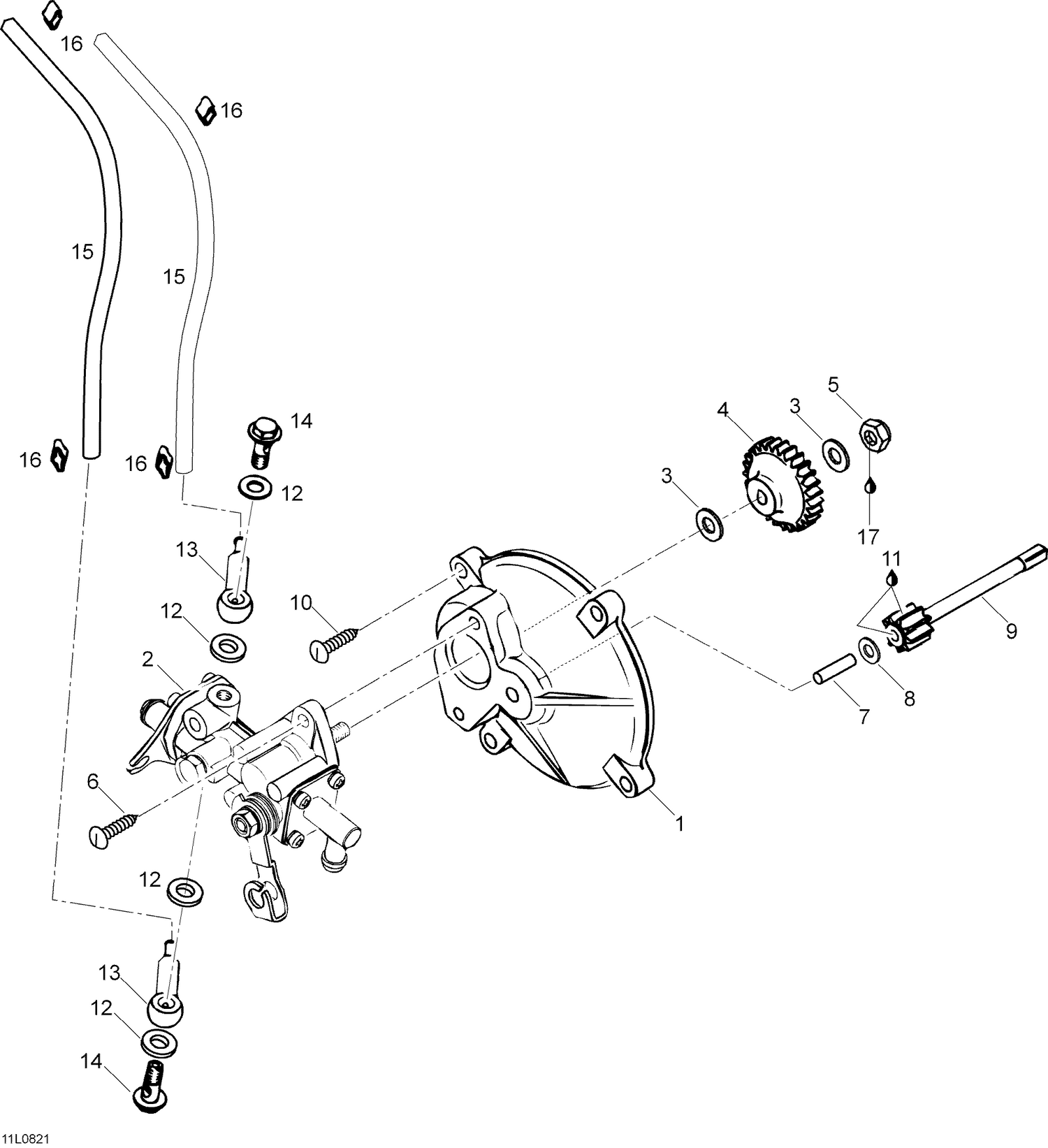

| Ref | Part Number | Description |
|---|
| 1 |
420910160 |
PUMP MOUNTING FLANGE - Call your local BRP dealership |
| 2 |
420887996 |
OIL PUMP ASS?Y - Call your local BRP dealership |
| 3 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 4 |
420935930 |
Oil pump gear (27-teeth) |
| 5 |
232561414 |
Elastic Stop Nut M6 |
| 6 |
420841971 |
Plastite screw M5.5 x 16 |
| 7 |
420832260 |
NEEDLE PIN - Call your local BRP dealership |
| 8 |
420244072 |
Washer-Flat 4 This part replaces 420244073. |
| 9 |
420935970 |
Gear (9-teeth) |
| 10 |
420841976 |
SCREW - Call your local BRP dealership |
| 11 |
413707000 |
Molykote 111 |
| 12 |
404146600 |
Sealing Washer This part replaces 420227500. |
| 13 |
420956010 |
Check valve ass'y |
| 14 |
420241830 |
Banjo bolt M6 x 16 |
| 15 |
414413800 |
Oil line This part replaces 420660493. |
| 16 |
420853840 |
Clamp |
