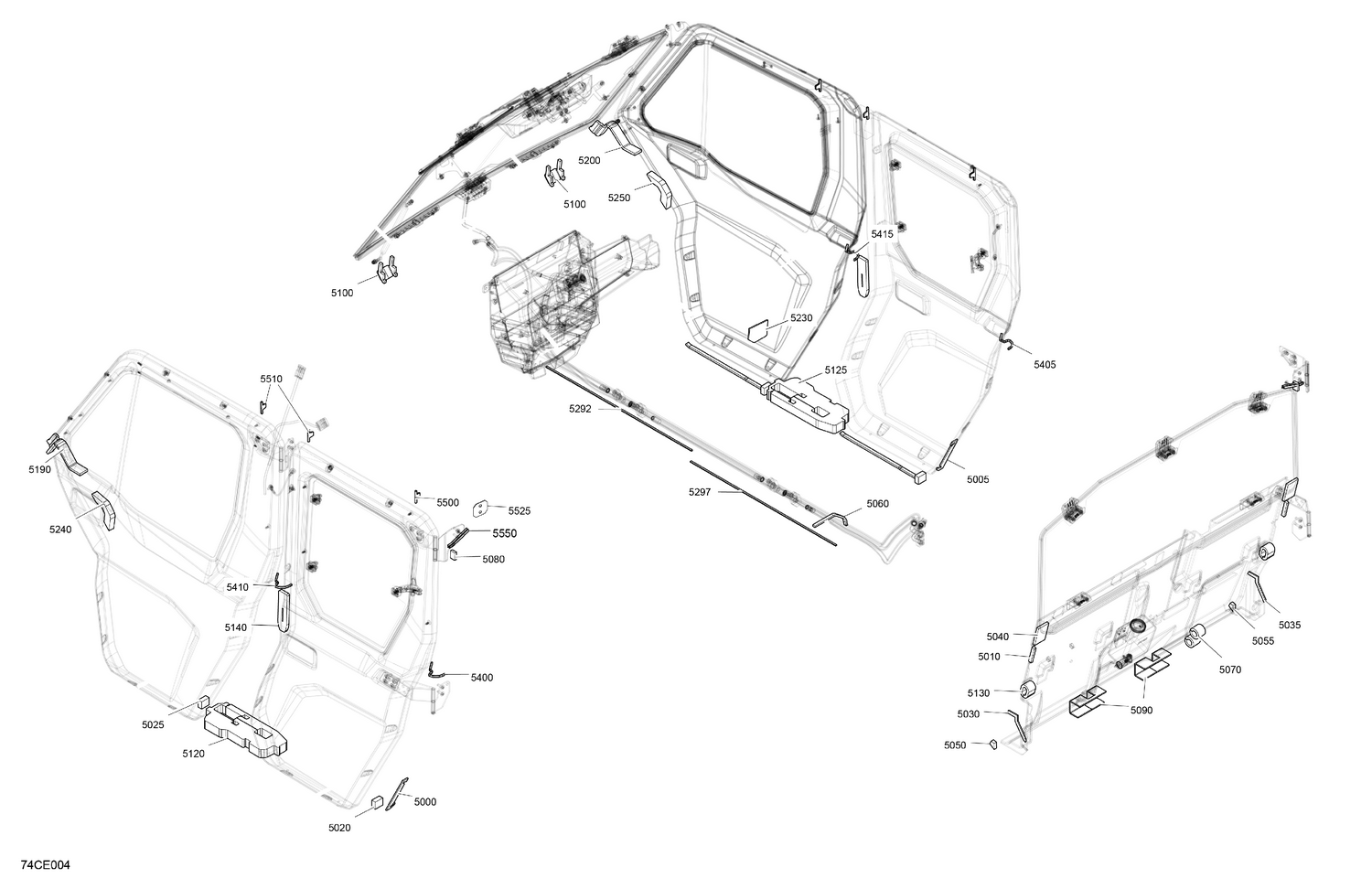

07- Enclosure Cab - Isolations
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 705800504 | Acoustic Insulation |
| 5005 | 705800515 | Acoustic Insulation |
| 5010 | 705800580 | Acoustic Insulation |
| 5020 | 705800506 | Acoustic Insulation |
| 5025 | 705800506 | Acoustic Insulation |
| 5030 | 705800507 | Acoustic Insulation |
| 5035 | 705800505 | Acoustic Insulation |
| 5040 | 705800508 | Acoustic Insulation |
| 5050 | 705800509 | Acoustic Insulation |
| 5055 | 705800579 | Acoustic Insulation |
| 5060 | 293200003 | Neoprene Seal (1PAC=3M) |
| 5070 | 705800764 | Acoustic Insulation |
| 5080 | 705800512 | Acoustic Insulation |
| 5090 | 705800513 | Acoustic Insulation |
| 5100 | 705800684 | Acoustic Insulation |
| 5120 | 705800644 | Acoustic Insulation |
| 5125 | 705800645 | Acoustic Insulation |
| 5130 | 705800765 | Acoustic Insulation |
| 5140 | 705800662 | Acoustic Insulation |
| 5190 | 705800682 | Acoustic Insulation |
| 5200 | 705800683 | Acoustic Insulation |
| 5230 | 705800583 | Acoustic Insulation |
| 5240 | 705800845 | LH Insulating Foam |
| 5250 | 705800846 | RH Insulating Foam |
| 5292 | 293250087 | Neoprene Seal, 410 MM |
| 5297 | 293250087 | Neoprene Seal, 410 MM |
| 5400 | 705800507 | Acoustic Insulation |
| 5405 | 705800505 | Acoustic Insulation |
| 5410 | 705800507 | Acoustic Insulation |
| 5415 | 705800505 | Acoustic Insulation |
| 5500 | 705800671 | Acoustic Insulation |
| 5510 | 705800671 | Acoustic Insulation |
| 5525 | 293250688 | Gasket |
