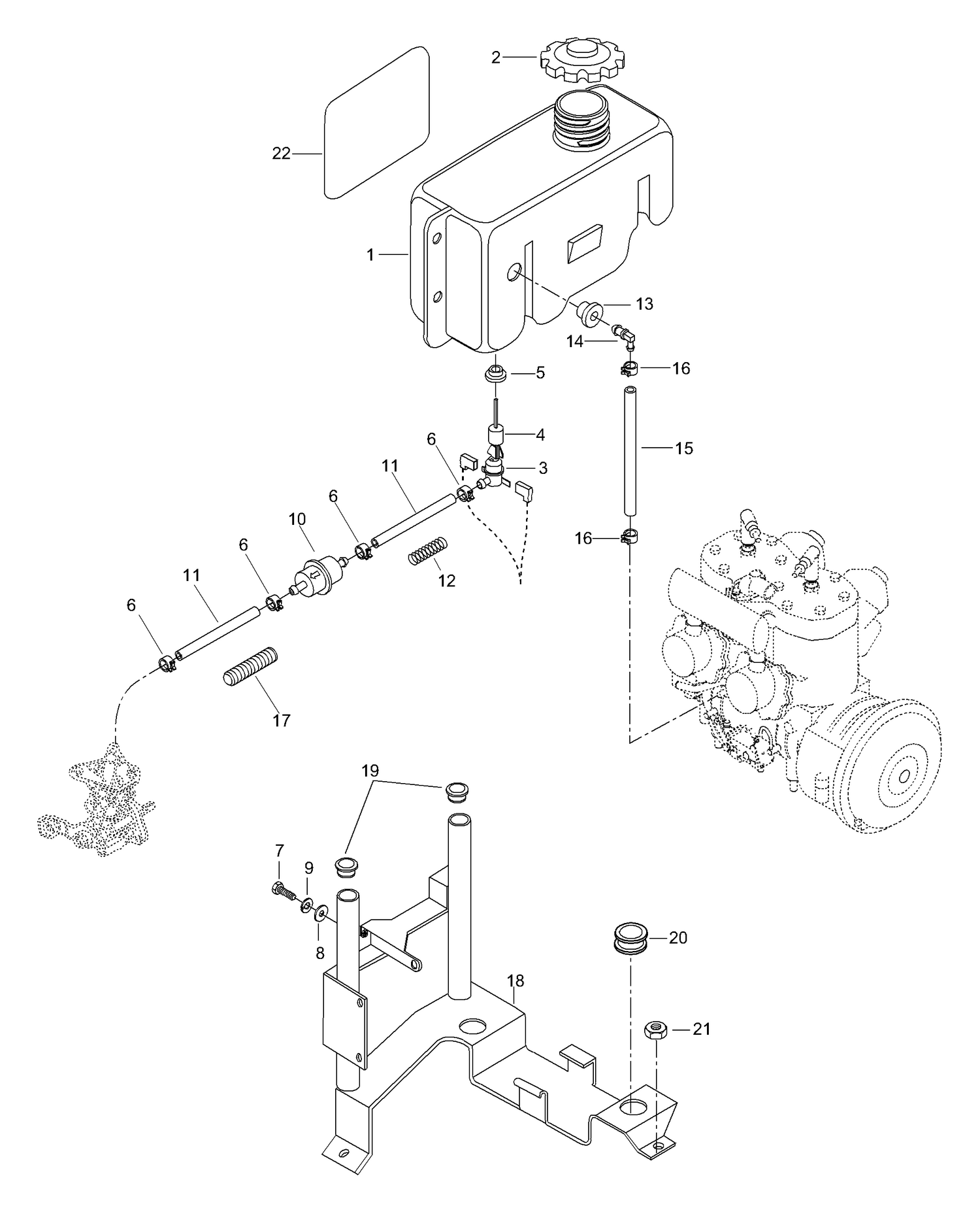

01- Oil Tank
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5146370 | TANK-OIL - Call your local BRP dealership |
| 2 | 519000044 | CAP - Call your local BRP dealership |
| 3 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 4 | 414681900 | Float |
| 5 | 570023000 | Grommet |
| 6 | 414420700 | Universal Spring Clamp |
| 7 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 8 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 9 | 20052 | Lock washer |
| 10 | 414536500 | Oil filter |
| 11 | 39046 | Oil line |
| 12 | 250001 | Spring |
| 13 | 709200285 | Grommet This part replaces 570135100. |
| 14 | 414580700 | Male Connector |
| 15 | 39004 | Hose 5/8 |
| 16 | 414554800 | Clamp |
| 17 | 28015 | Tube |
| 18 | 5246593 | OIL TANK SUPPORT WELD - Call your local BRP dealership |
| 19 | 28136 | Plug |
| 20 | 5446766 | Grommet |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
