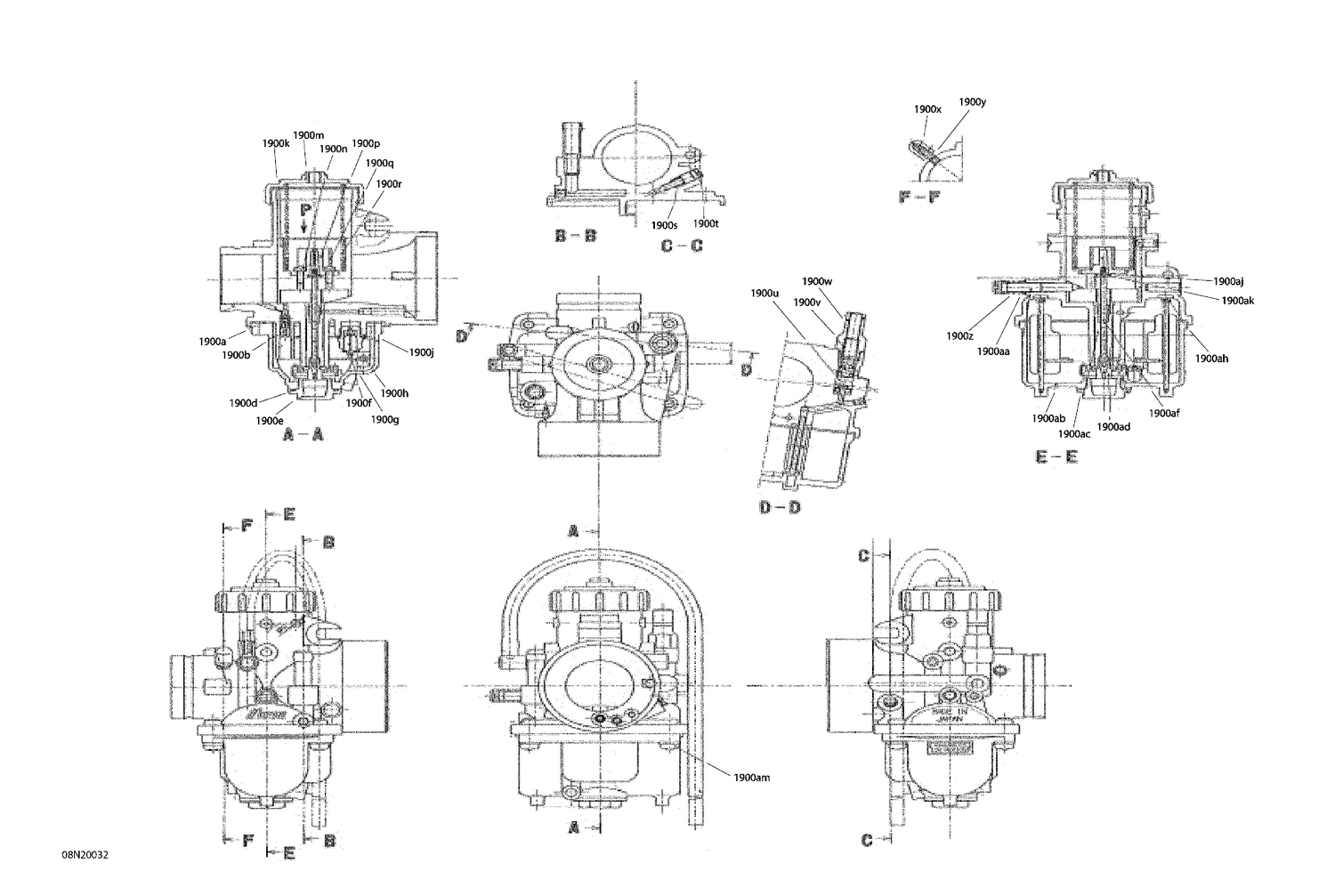

01- Engine - System - Carburator
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1900aa | 404109700 | Idle Speed Screw |
| 1900ab | 404162133 | FLOAT BODY - Call your local BRP dealership |
| 1900ac | 404162124 | Needle Jet |
| 1900ad | 404112300 | Main Jet MJ 200 |
| 1900ad | 404119000 | Main Jet 190 |
| 1900af | 404162113 | Needle, J8-6BFY46 |
| 1900ah | 404105800 | Cap |
| 1900aj | 404152400 | E-Ring |
| 1900ak | 404117000 | Packing |
| 1900b | 404102700 | Pilot Jet 35 |
| 1900d | 404107300 | O-Ring |
| 1900e | 404107400 | Drain Plug Screw |
| 1900f | 404147500 | Needle Valve 1.2 |
| 1900g | 404107600 | Float Lever |
| 1900h | 404103300 | Lever Pin |
| 1900j | 404101600 | Seat Washer |
| 1900k | 404128400 | Piston Valve 2.5 |
| 1900m | 404103700 | Cover |
| 1900n | 404121300 | Screw With Washer |
| 1900p | 404161987 | Packing |
| 1900q | 404122100 | Cover |
| 1900r | 404154800 | Spring |
| 1900s | 404101800 | Spring |
| 1900t | 404102300 | Air Screw |
| 1900u | 404162130 | Plunger Ass'y |
| 1900v | 404162131 | Spring |
| 1900w | 404162132 | Guide Holder |
| 1900w | 404162138 | Guide Holder |
| 1900x | 404153400 | Nipple |
| 1900y | 404156600 | Cap |
| 1900z | 404101700 | Spring |
