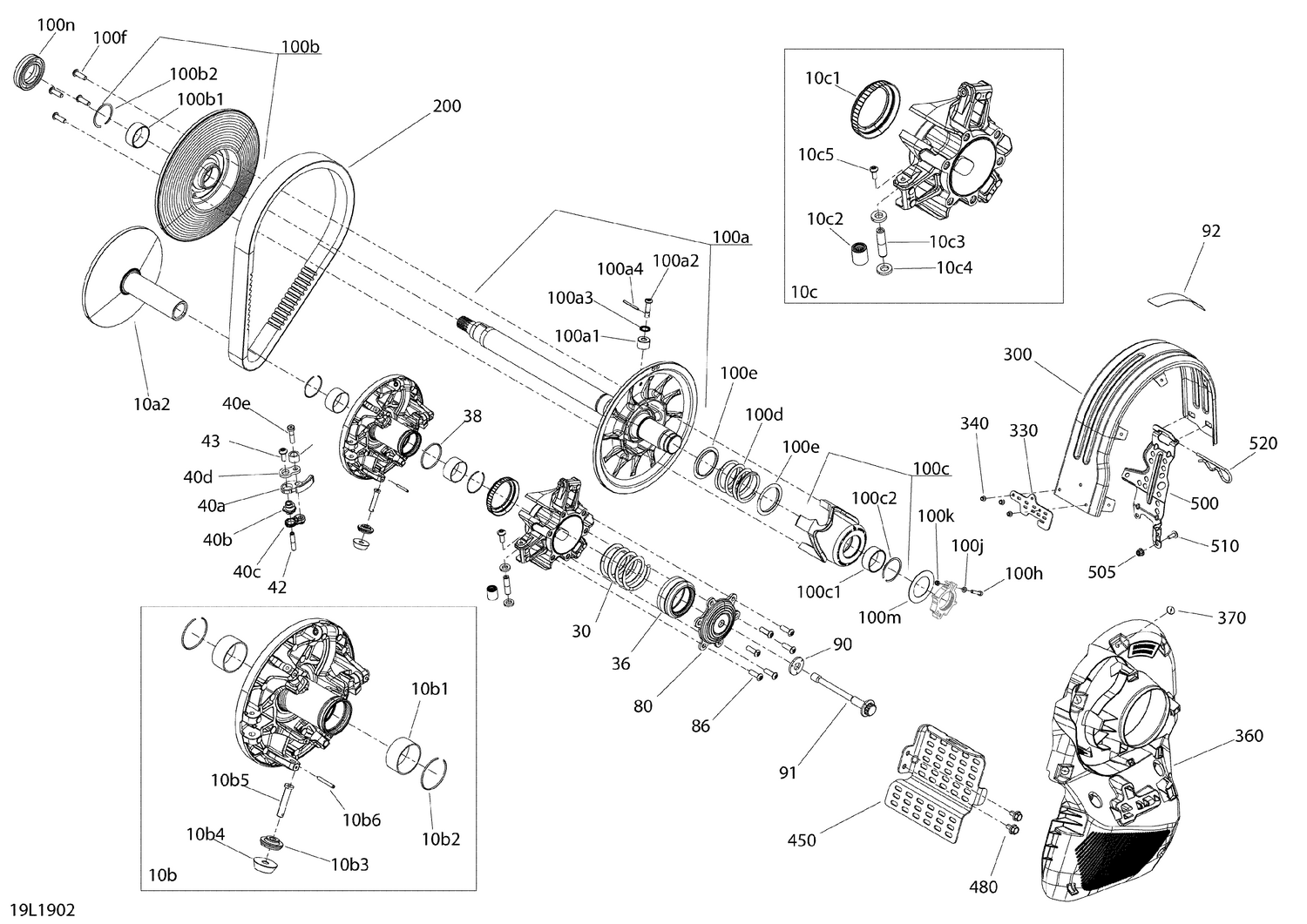

05- Pulley
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 10a2 | 417224333 | Fixed Flange Ass'y |
| 10b1 | 293250389 | Bushing |
| 10b2 | 293370137 | Circlip This part replaces 293370117. |
| 10b3 | 417224153 | Back Torque Roller |
| 10b4 | 417224154 | Torque Roller |
| 10b5 | 417224510 | Pin This part replaces 417224191. |
| 10b6 | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 10c1 | 417224257 | Spring Guide |
| 10c2 | 417224947 | Roller Pulley Ass'y This part replaces 417224285. |
| 10c3 | 417224204 | Axle - 10mm |
| 10c4 | 417224868 | Thrust Washer This part replaces 417224009. |
| 10c5 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 30 | 417224013 | Clutch Spring |
| 36 | 417224003 | Seat Spring |
| 38 | 293370116 | Circlip |
| 40a | 417224450 | Ramp Pulley 995 |
| 40b | 417224113 | Molded Cam |
| 40c | 417224086 | RH Lever |
| 40d | 417224114 | LH Lever |
| 40e | 417224221 | Pivot 33mm |
| 42 | 417224694 | Pin Ramp This part replaces 417223631. |
| 43 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 80 | 417224682 | VIbration Damper This part replaces 417224201. |
| 86 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 90 | 250200144 | Conical Spring Washer M14 |
| 91 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 92 | 516007667 | Warning Decal |
| 100a1 | 417127016 | Pulley Roller |
| 100a2 | 417127294 | Pivot Stud |
| 100a3 | 250200009 | Lock Washer 8 mm |
| 100a4 | 250400070 | Spring Pin |
| 100b1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100b2 | 293370049 | Circlip |
| 100c1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100c2 | 293370049 | Circlip |
| 100d | 417127137 | Green, Spring |
| 100e | 417127116 | Swivel Abutment |
| 100h | 250000981 | Socket Screw M5 X 25 |
| 100j | 234051410 | Flat Washer M5 |
| 100k | 232551414 | Elastic Stop Nut M5 |
| 100m | 417127155 | Washer |
| 100n | 504152574 | Ball Bearing |
| 200 | 417300551 | Drive Belt |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300561 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360a | 417300553 | CVT Duct Cooling |
| 370 | 293150103 | Pop Rivet 3/16" |
| 500 | 417300514 | Support Guard |
| 505 | 233261466 | Hex. Flange Elastic Nut M6 |
| 510 | 250000755 | Torx Screw M6 X 16 |
