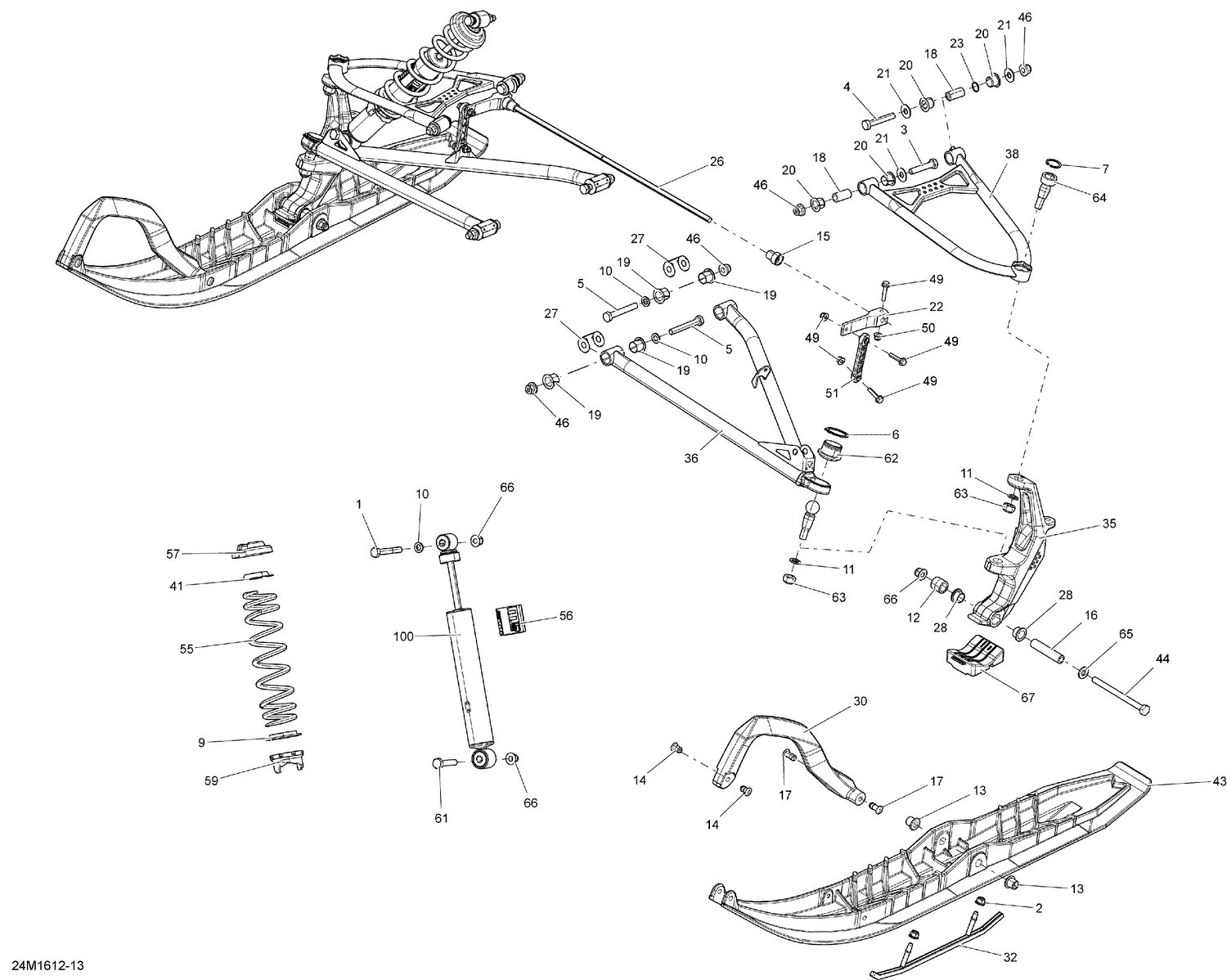

07- Front Suspension And Ski
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 4 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 5 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 6 | 293370035 | Circlip |
| 7 | 293370070 | Circlip |
| 9 | 503187500 | Spring Guide |
| 10 | 503189564 | Washer |
| 11 | 503192491 | Washer |
| 12 | 503193651 | Spacer |
| 13 | 505071781 | Ski Bushing |
| 14 | 505071812 | Retainer 17mm long |
| 15 | 505072064 | Bushing |
| 16 | 506133300 | Spacer |
| 17 | 505072133 | Retainer 23mm Long |
| 18 | 505072143 | Sleeve |
| 19 | 505072208 | Bushing |
| 20 | 505072250 | Bushing |
| 21 | 505072392 | Washer |
| 22 | 505072394 | Stabilisator Lever |
| 23 | 505072448 | O-Ring |
| 26 | 505072602 | Stabilisator |
| 27 | 505072634 | Wear Plate |
| 28 | 505072690 | Leg Bushing |
| 30 | 505072976 | Black, Handle |
| 32 | 860201044 | Carbide Runner Kit (Square Runner) |
| 35 | 505073559 | White, LH Ski Leg |
| 35 | 505073560 | White, RH Ski Leg |
| 36 | 505072497 | Black, RH Lower Arm |
| 36 | 505072498 | Black, LH Lower Arm |
| 38 | 505073468 | LH Upper Arm 39" |
| 38 | 505073469 | RH Upper Arm 39" |
| 41 | 706200785 | Cap |
| 43 | 505073227 | Black, Ski |
| 44 | 250000703 | Hex. Screw M10 X 130 |
| 46 | 250100165 | Hex. Flange Elastic Nut M10 |
| 49 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 50 | 233261466 | Hex. Flange Elastic Nut M6 |
| 51 | 505072204 | Sway Bar Double Joint Link |
| 57 | 706200881 | Spring Stopper |
| 59 | 505073625 | Adjustment Cam |
| 61 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 62 | 505073636 | Ball Joint |
| 63 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 64 | 505072913 | Upper Ball Joint |
| 65 | 503192496 | Washer |
| 66 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 67 | 505072594 | Ski Stopper |
