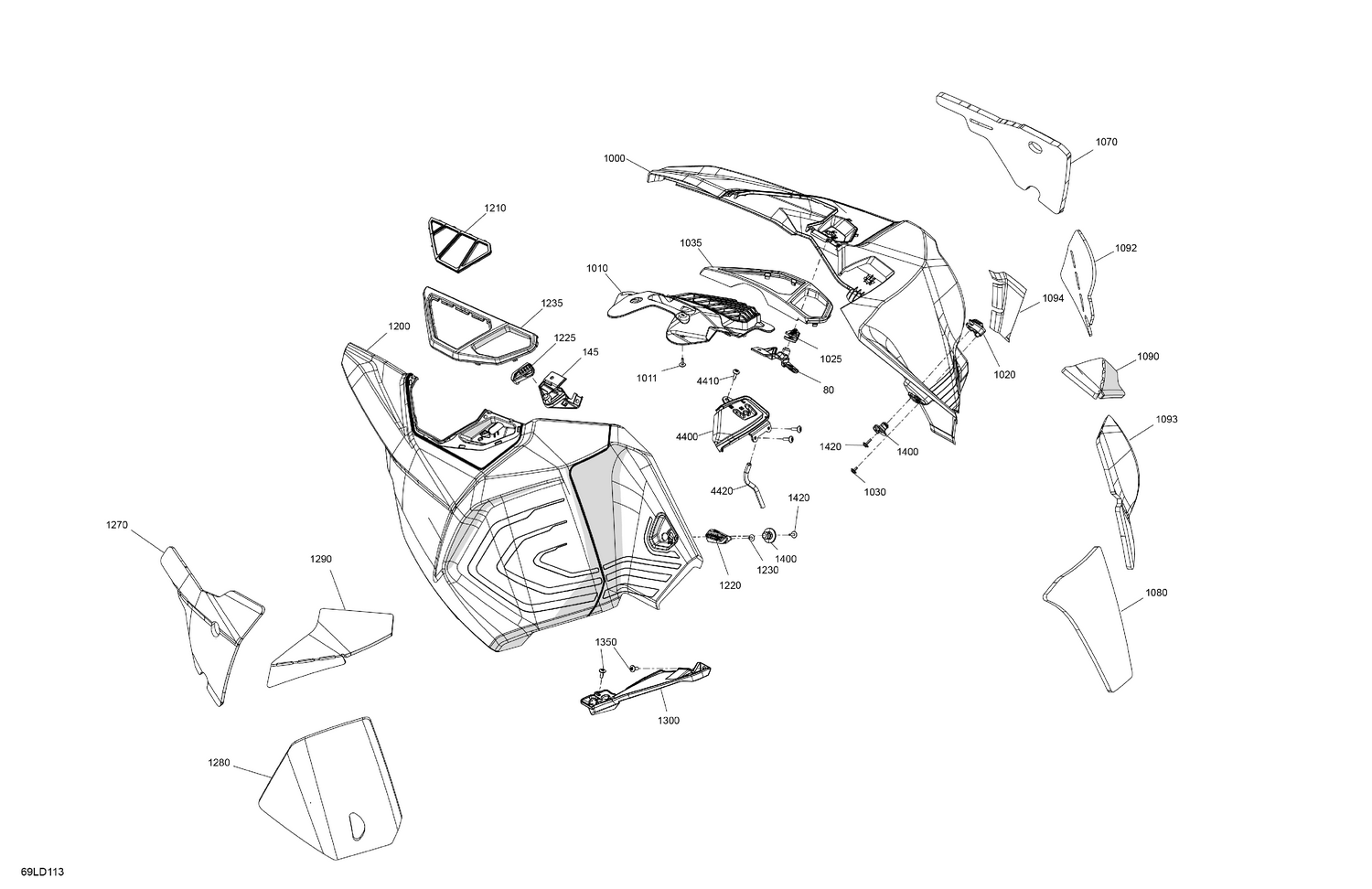

07- Body - Side Panels
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 517306450 | RH Knob Part |
| 145 | 517306451 | LH Knob Part |
| 1000 | 517306823 | RH Side Panel 20" With Gearbox |
| 1010 | 517306706 | RH Grille |
| 1011 | 250000725 | Screw M4 X 16 |
| 1020 | 517305773 | RH Rear Latch |
| 1025 | 517305773 | RH Rear Latch |
| 1030 | 250000805 | Plastite Screw M4 X 10 |
| 1035 | 517308523 | RH Large Trim |
| 1070 | 517308470 | RH Central Side Panel Foam |
| 1080 | 517308472 | RH Rear Side Panel Foam |
| 1090 | 517308474 | RH Upper Side Panel Foam |
| 1092 | 517308475 | RH Rear Side Panel Foam |
| 1093 | 517307537 | Heat Shield |
| 1094 | 517307538 | Heat Shield |
| 1200 | 517306703 | LH Side Panel 20" |
| 1210 | 517306832 | LH Air Intake Grip |
| 1220 | 517305774 | LH Rear Latch |
| 1225 | 517305774 | LH Rear Latch |
| 1230 | 250000805 | Plastite Screw M4 X 10 |
| 1235 | 517308524 | LH Large Trim |
| 1270 | 517306577 | LH Central Side Panel Foam This part replaces 517308476. |
| 1280 | 517306578 | LH Rear Side Panel Foam This part replaces 517308477. |
| 1290 | 517306579 | LH Upper Side Panel Foam This part replaces 517308478. |
| 1300 | 517307359 | LH Snow Deflector |
| 1350 | 250000721 | Torx Truss Screw M6 X 16 |
| 1400 | 517305985 | Rear Stud |
| 1420 | 250000725 | Screw M4 X 16 |
| 4400 | 517306818 | Shift Lever Grille |
| 4410 | 250000528 | Torx Screw M5 X 20 |
