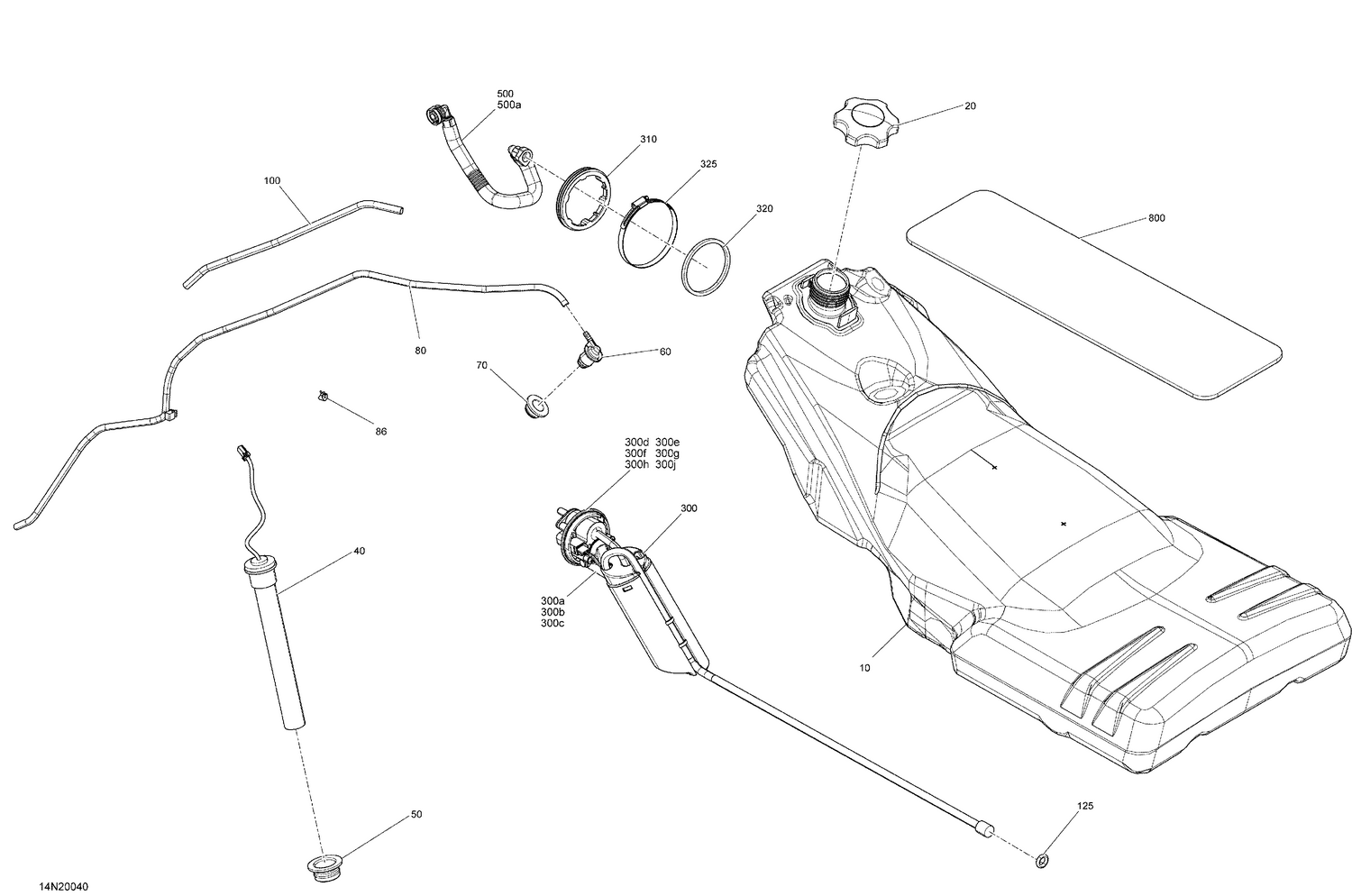

02- Engine - Fuel
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513033757 | Fuel Tank |
| 20 | 513034170 | Fuel Tank Cap This part replaces 513033943. |
| 40 | 513033902 | Fuel Sensor |
| 50 | 293720113 | Grommet |
| 60 | 513033842 | Check Valve |
| 70 | 513033596 | Grommet |
| 80 | 219704410 | Polyurethane Hose 10000Mm Long |
| 86 | 414554800 | Spring Clamp |
| 100 | 504153468 | Protector Tube |
| 125 | 293300184 | O Ring |
| 300a | 415129509 | O-Ring |
| 300b | 415129510 | Fuel Filter |
| 300c | 415129511 | O-Ring |
| 300d | 415129512 | Wave Washer |
| 300e | 415129513 | Screw |
| 300f | 415129685 | Cover |
| 300g | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 300h | 415129451 | Fuel Filter |
| 300j | 414872100 | Fuel Filter Strainer |
| 310 | 513033180 | Ring |
| 320 | 513033334 | Gasket |
| 325 | 513033628 | Clamp |
| 500a | 513033135 | Locking Clip |
