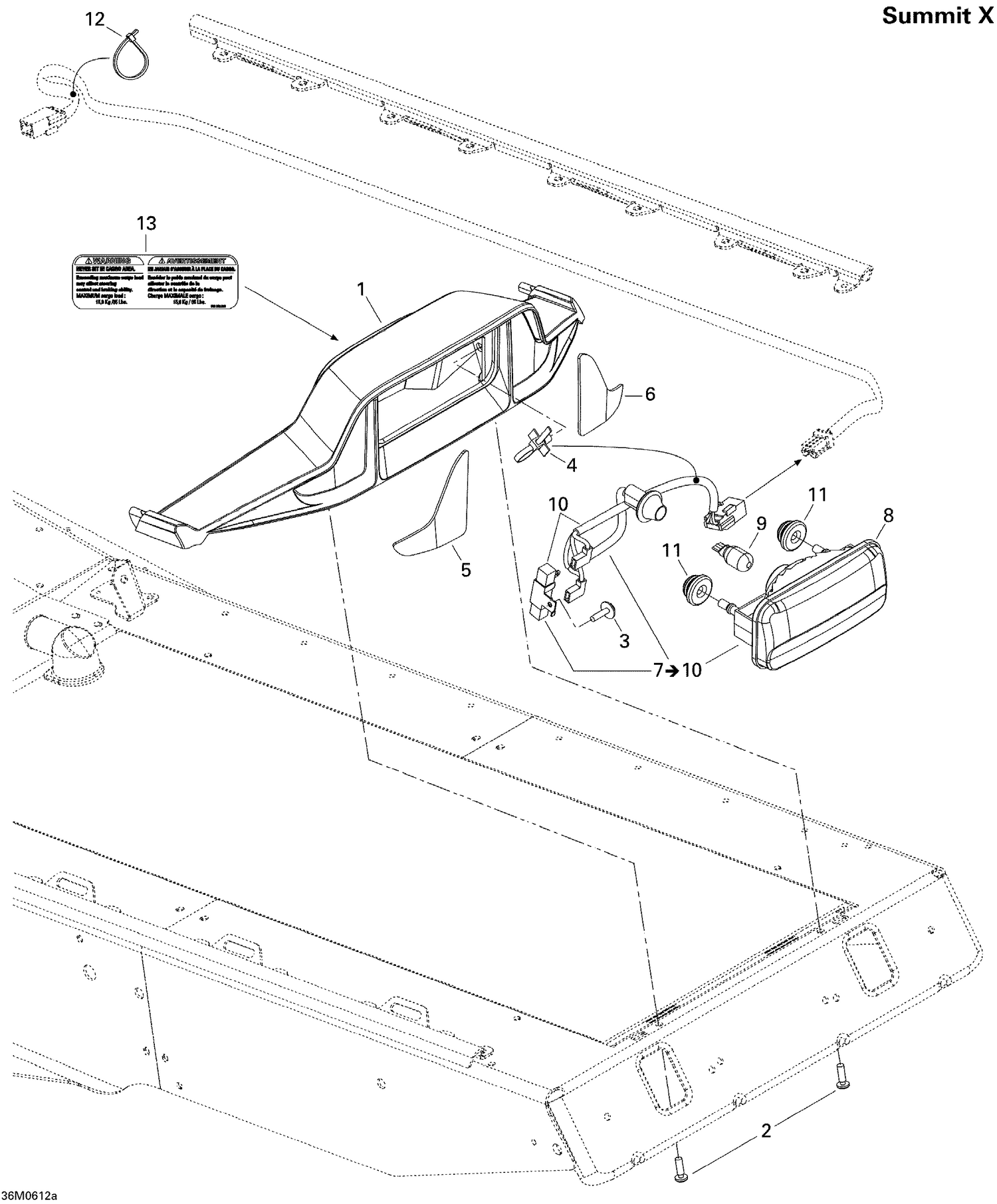

| Ref | Part Number | Description |
|---|
| 1 |
511000447 |
Light Support |
| 2 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 3 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 4 |
293750009 |
Tie-Rap 173 mm |
| 5 |
511000459 |
REAR REFLECTOR - Call your local BRP dealership |
| 6 |
511000460 |
REAR REFLECTOR - Call your local BRP dealership |
| 8 |
710000652 |
Rear Lens Box |
| 9 |
710000653 |
BULB - Call your local BRP dealership |
| 10 |
511000445 |
Wiring Harness |
| 11 |
705014429 |
Rubber Stopper This part replaces 705001119. |
| 12 |
293750001 |
Tie Wrap 94 mm |
| 13 |
516002960 |
WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership |
