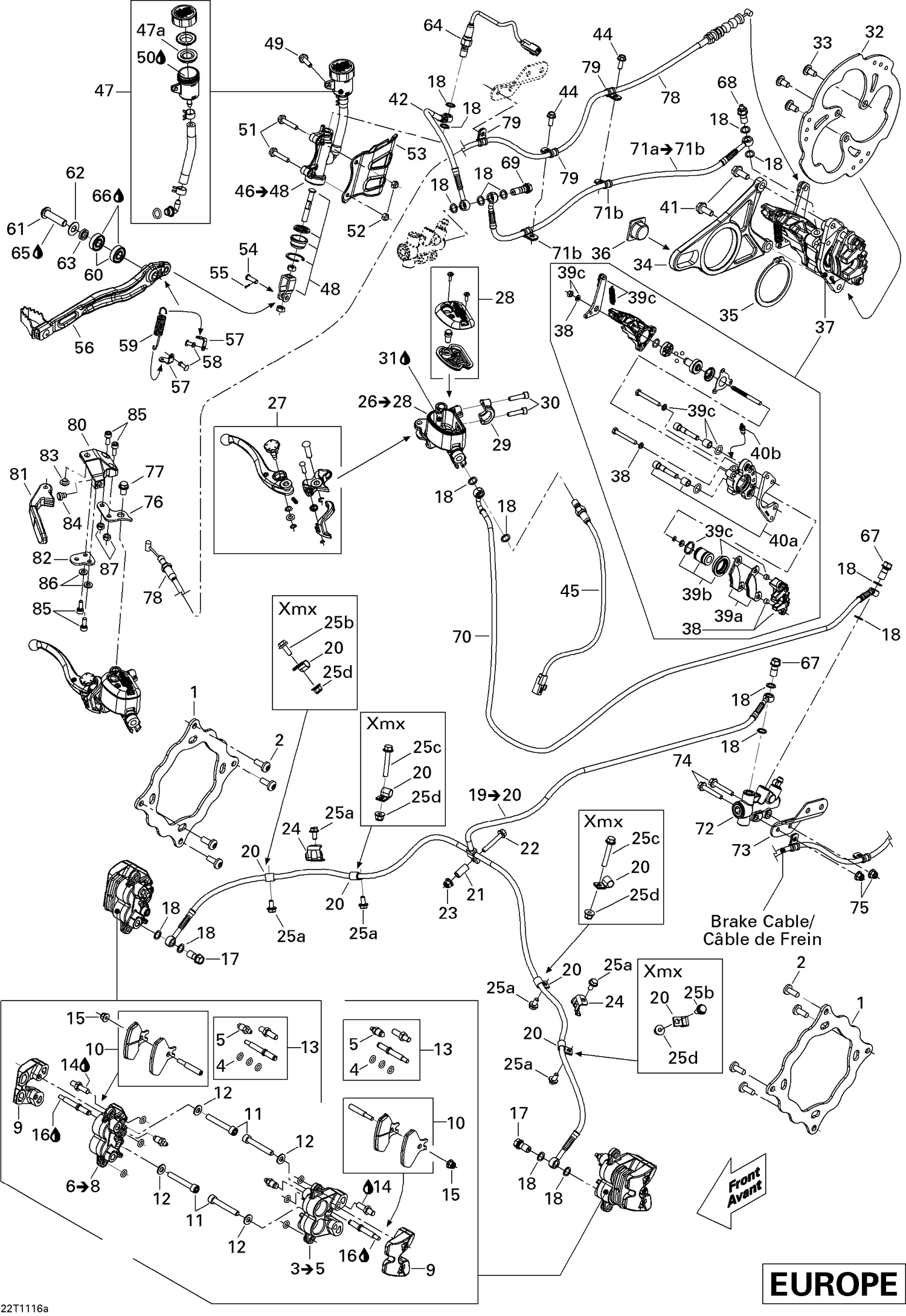

| Ref | Part Number | Description |
|---|
| 1 |
705600400 |
FRONT BRAKE DISC - Call your local BRP dealership |
| 2 |
250000740 |
Torx Screw M8 X 20, Scotch Grip This part replaces 250000117. |
| 4 |
Not |
Available As Spare Part - Seal |
| 5 |
Not |
Available As Spare Part - Screw Bleeder |
| 7 |
Not |
Available As Spare Part - Seal |
| 8 |
Not |
Available As Spare Part - Screw Bleeder |
| 9 |
705600560 |
OUTER CALIPER - Call your local BRP dealership |
| 10 |
705600402 |
Front Brake Pad Kit |
| 11 |
205085534 |
SOCKET HEAD SCREW M8 X 55 - Call your local BRP dealership |
| 12 |
234081430 |
Flat Washer M8 |
| 13 |
705600425 |
PIN SLIDE KIT - Call your local BRP dealership |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
233261434 |
Flange Elastic Nut M6 |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
705600628 |
Banjo Bolt |
| 18 |
705601628 |
Copper Washer This part replaces 705600310. |
| 20 |
293650256 |
Clamp This part replaces 705600459. |
| 21 |
512059812 |
SPACER - Call your local BRP dealership |
| 22 |
207663534 |
HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership |
| 23 |
233261434 |
Flange Elastic Nut M6 |
| 24 |
XXX |
Not Available As Spare Parts |
| 25a |
XXX |
Not Available As Spare Parts |
| 25b |
207661634 |
Hex. Flange Screw M6 X 16 |
| 25c |
207664034 |
Hex. Flange Screw M6 X 40 |
| 25d |
233261434 |
Flange Elastic Nut M6 |
| 27 |
705600491 |
Brake Lever Kit |
| 28 |
705600493 |
CAP SET - Call your local BRP dealership |
| 29 |
705600619 |
BRACKET KIT - Call your local BRP dealership |
| 30 |
205062534 |
SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership |
| 31 |
293600131 |
HYDRAULIC OIL - Call your local BRP dealership This part replaces 293600062. |
| 32 |
705600655 |
REAR BRAKE DISC - Call your local BRP dealership |
| 33 |
250000330 |
SHOULDER SCREW M8 - Call your local BRP dealership |
| 34 |
705600656 |
REAR CALIPER SUPPORT - Call your local BRP dealership |
| 35 |
293370045 |
SNAP RING - Call your local BRP dealership |
| 36 |
705600412 |
GUIDE REAR CALIPER - Call your local BRP dealership |
| 37 |
705600657 |
REAR CALIPER ASS'Y - Call your local BRP dealership |
| 38 |
705600658 |
Anvil Kit |
| 39a |
705600711 |
Brake Pad Kit |
| 39b |
705600668 |
PISTONT KIT - Call your local BRP dealership |
| 39c |
705600667 |
HARDWARE KIT - Call your local BRP dealership |
| 40a |
705600685 |
SUPPORT KIT - Call your local BRP dealership |
| 40b |
705600686 |
Bleeder Kit |
| 41 |
250001044 |
Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000247. |
| 42 |
705600986 |
BRAKE LINE - Call your local BRP dealership This part replaces 705600616. |
| 44 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 45 |
710003837 |
Switch This part replaces 710000853. |
| 47 |
705600740 |
SET TANK ASS'Y - Call your local BRP dealership This part replaces 705600739. |
| 47a |
705600762 |
DIAPHRAGM - Call your local BRP dealership This part replaces 705600763. |
| 48 |
705600498 |
ROD SET - Call your local BRP dealership |
| 49 |
207662034 |
Hex. Flange Screw M6 X 20 |
| 50 |
293600131 |
HYDRAULIC OIL - Call your local BRP dealership This part replaces 293600062. |
| 51 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 52 |
232561434 |
Elastic Stop Nut M6 |
| 53 |
705600538 |
Hose Protector |
| 54 |
250400031 |
Clevis Pin |
| 55 |
250400032 |
Cotter Pin |
| 56 |
705600534 |
BRAKE PEDAL - Call your local BRP dealership |
| 57 |
705600631 |
FIXATION PLATE - Call your local BRP dealership |
| 58 |
390407200 |
Pop Rivet 3/16” |
| 59 |
705600635 |
BRAKE PEDAL SPRING - Call your local BRP dealership |
| 60 |
705600458 |
Bearing |
| 61 |
205404036 |
SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership |
| 62 |
506152194 |
Washer |
| 63 |
293900087 |
Bushing |
| 64 |
710003838 |
BRAKE SWITCH - Call your local BRP dealership This part replaces 710001377. |
| 65 |
293800060 |
Loctite 243, 10 ml |
| 66 |
413703100 |
Loctite 609, 10 ml |
| 67 |
705600609 |
Banjo Bolt (M10 x 1.25 thread) |
| 68 |
705600680 |
SCREW BLEEDER - Call your local BRP dealership |
| 69 |
705600958 |
Banjo Bolt This part replaces 705600612. |
| 70 |
705600615 |
FRONT LEVER BRAKE HOSE ASS'Y - Call your local BRP dealership |
| 71b |
293650256 |
Clamp This part replaces 705600459. |
| 72 |
705600617 |
SPLITTER - Call your local BRP dealership |
| 73 |
705600618 |
Splitter Support |
| 74 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 75 |
233261434 |
Flange Elastic Nut M6 |
| 76 |
705600660 |
LEVER SUPPORT - Call your local BRP dealership |
| 77 |
250001044 |
Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000247. |
| 78 |
705600661 |
BRAKE CABLE - Call your local BRP dealership |
| 79 |
293650256 |
Clamp This part replaces 705600459. |
| 80 |
705600662 |
CABLE SUPPORT - Call your local BRP dealership |
| 81 |
705600663 |
LEVER BRAKE - Call your local BRP dealership |
| 82 |
705600664 |
SUPPORT - Call your local BRP dealership |
| 83 |
705600665 |
LEVER PIVOT - Call your local BRP dealership |
| 84 |
705600666 |
Stopper |
| 85 |
205061660 |
Socket Screw M6 X 16 |
| 86 |
234061600 |
Stainless Flat Washer M6 |
