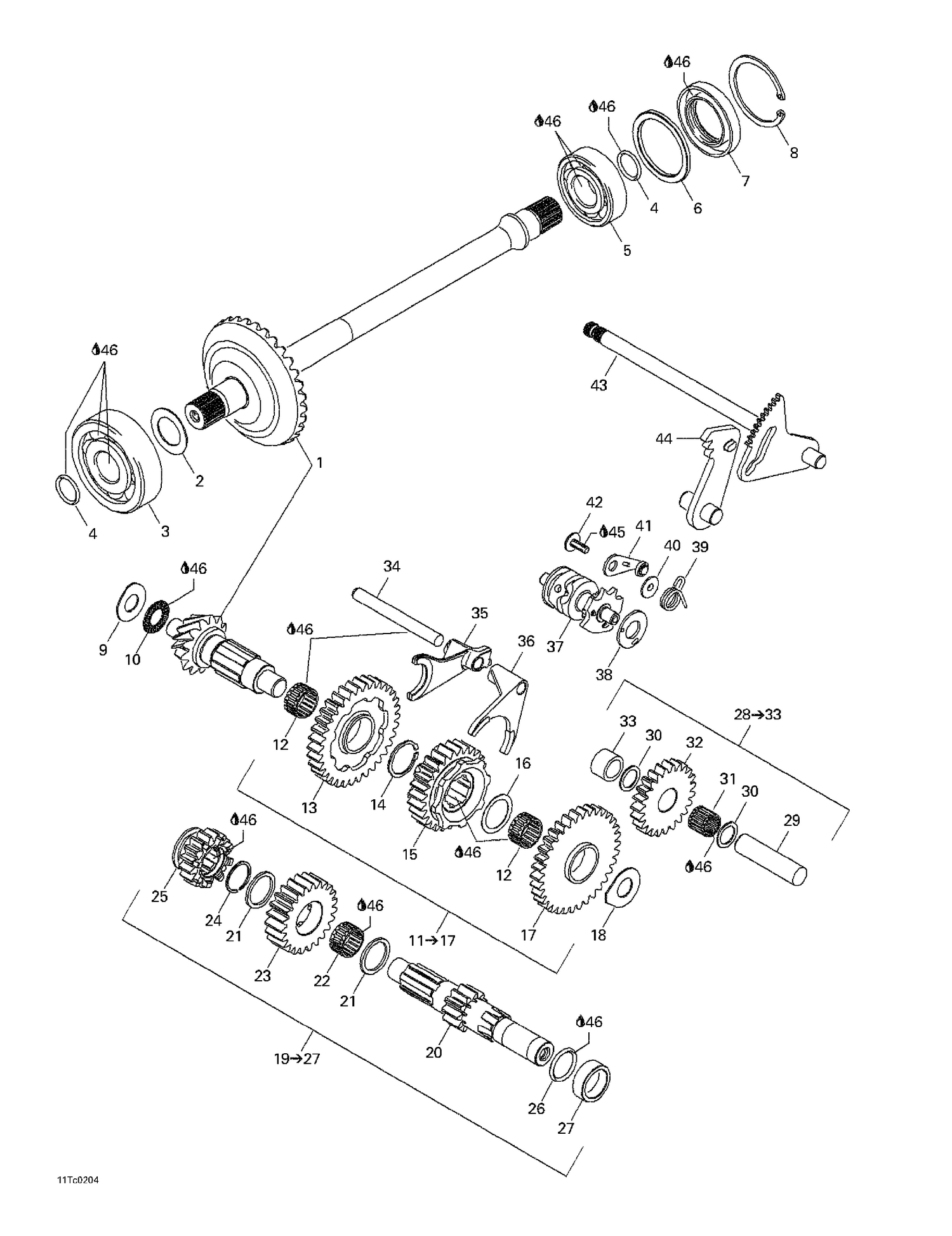

| Ref | Part Number | Description |
|---|
| 1 |
711296530 |
Bevel Gear Ass'y |
| 2 |
420281300 |
Washer Thrust Set This part replaces 711281300. |
| 3 |
420632280 |
Ball Bearing 6405 This part replaces 711632280. |
| 4 |
420430373 |
O-Ring This part replaces 420430370. |
| 5 |
420932822 |
Ball Bearing This part replaces 420932825. |
| 6 |
711247090 |
Distance Ring |
| 7 |
420650682 |
Oil Seal This part replaces 711650680. |
| 8 |
711445070 |
RETAINING RING - Call your local BRP dealership |
| 10 |
420632300 |
Axial Needle Bearing This part replaces 711632300. |
| 12 |
420632070 |
Needle Bearing This part replaces 711632070. |
| 13 |
Not |
Available As Spare Part - Pinion Gear (33 teeth) |
| 14 |
420245850 |
Retaining Ring This part replaces 711245850. |
| 15 |
Not |
Available As Spare Part - Pinion Gear (33 teeth) |
| 16 |
Not |
Available As Spare Part - Thrust Washer |
| 17 |
Not |
Available As Spare Part - Pinion Gear (34 teeth) |
| 18 |
420281302 |
Thrust Washer Set, CVT Side This part replaces 711281302. |
| 20 |
Not |
Available As Spare Part - Countershaft (11 teeth) |
| 21 |
Not |
Available As Spare Part - Thrust Washer |
| 22 |
420632070 |
Needle Bearing This part replaces 711632070. |
| 23 |
Not |
Available As Spare Part - Pinion Gear (23 teeth) |
| 24 |
420445302 |
Circlip This part replaces 420445300. |
| 25 |
Not |
Available As Spare Part - Shift Gear (16 teeth) |
| 26 |
420630040 |
O-Ring This part replaces 711630040. |
| 27 |
711247110 |
Distance Ring |
| 29 |
420229600 |
Needle Pin This part replaces 711229600. |
| 30 |
711944190 |
Thrust Washer |
| 31 |
420432034 |
Needle Cage This part replaces 711432030. |
| 32 |
711635310 |
Internal Gear (23 teeth) |
| 33 |
711247120 |
Distance Sleeve |
| 34 |
420229540 |
Pin This part replaces 711229540. |
| 35 |
711257180 |
Shift Fork |
| 36 |
711257230 |
Shift Fork |
| 37 |
711257175 |
Shift Drum |
| 38 |
711227567 |
Isolating Washer |
| 39 |
420239561 |
Index Spring This part replaces 711239246. |
| 40 |
420227710 |
BUSHING - Call your local BRP dealership This part replaces 711227710. |
| 41 |
711248326 |
Index Lever Ass'y |
| 42 |
420241522 |
Torx Screw M6 X 16 This part replaces 711241526. |
| 43 |
711220806 |
Shift Shaft |
| 44 |
711257156 |
Lock Lever |
| 45 |
293800060 |
Loctite 243, 10 ml |
| 46 |
293600023 |
Engine Oil, Mineral, Api Sj Sae 10W40 |
