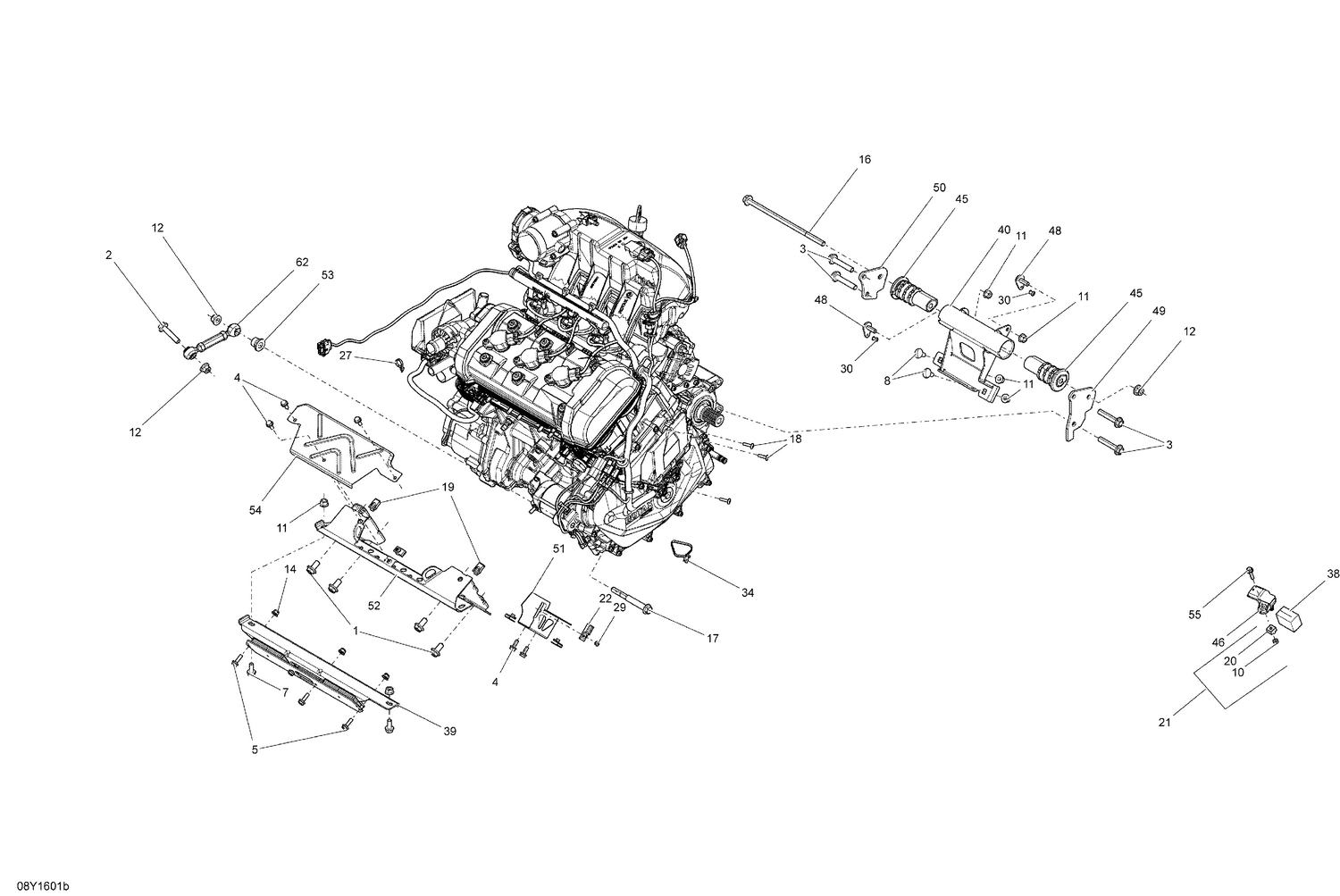

01- Engine - SE6
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207502044 | Hex Flange Screw M10 X 20 |
| 2 | 207504546 | Hex. Flange Screw M10 X 45 Scotch Grip |
| 3 | 207505544 | Hex. Flange Screw M10 X 55, Scotch Grip |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 5 | 207662044 | Hex. Flange Screw M6 X 20 |
| 7 | 207682046 | Hex. Flange Screw M8 X 20 |
| 8 | 207782046 | Carriage Bolt M8 X 20 |
| 10 | 232561600 | Hex. Elastic Stop Nut M6 |
| 11 | 233081416 | Hex. Flange Nut M8 |
| 12 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 14 | 233261466 | Hex. Flange Elastic Nut M6 |
| 16 | 250000507 | Hex. Flange Screw M10 X 220 |
| 17 | 250001099 | Hex. Flange Screw M10 X 100 This part replaces 250000702. |
| 18 | 250000724 | Torx Screw M5 X 20 |
| 19 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 20 | 269500252 | M6 Nut Housing Ass'y |
| 21 | 269500725 | M6 Nut Housing Ass'y |
| 22 | 270000141 | Clip |
| 27 | 293750008 | Tie Wrap 368 mm |
| 29 | 390402200 | Pop Rivet 3/16" |
| 30 | 390402300 | Pop Rivet 3/16" |
| 34 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 38 | 707000586 | Foam Filter |
| 39 | 707000876 | Rubber Mount |
| 40 | 707000877 | Frame Extension |
| 45 | 707000973 | Rubber Mount |
| 46 | 707000995 | Pressure And Temperature Sensor |
| 48 | 707001292 | Attach |
| 49 | 707001293 | LH Engine Support |
| 50 | 707001294 | RH Engine Support |
| 51 | 707001353 | Connector Support |
| 52 | 707001561 | Front Engine Support |
| 53 | 707001736 | Spacer |
| 54 | 707601057 | Upper Heat Deflector |
| 55 | 207662554 | Hex. Flange Screw M6 X 25 |
