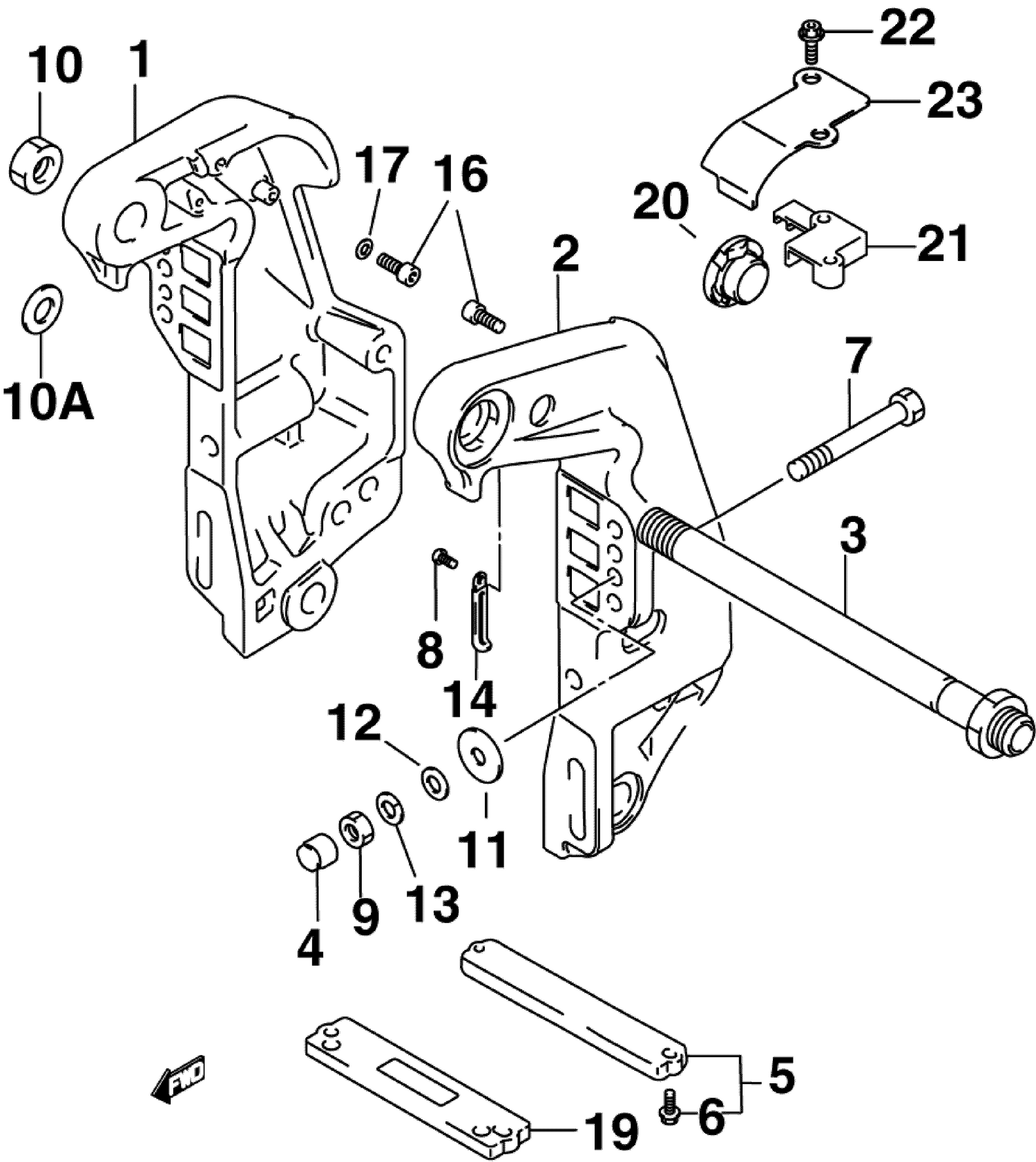

STERN BRACKET
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5037197 | BRACKET, CLAMP STBD This part replaces 5034519. |
| 2 | 5035803 | BRACKET, CLAMP PORT |
| 3 | 5036728 | SHAFT, Calmp bracket |
| 4 | 5030839 | CAP, TRANSOM BOLT |
| 5 | 5030907 | ANODE |
| 7 | 5036599 | Bolt |
| 8 | 5030409 | SCREW |
| 9 | 5031221 | NUT |
| 10A | 5031846 | WASHER |
| 11 | 5030436 | WASHER |
| 12 | 5036480 | WASHER |
| 13 | 5030462 | RONDELLE GROWER |
| 14 | 5030135 | BRIDE |
| 16 | 5030388 | BOLT |
| 17 | 5030057 | WASHER |
| 20 | 5034523 | CAM, TILT LIMIT |
| 21 | 5034524 | HOLDER |
| 22 | 5036600 | BOLT |
