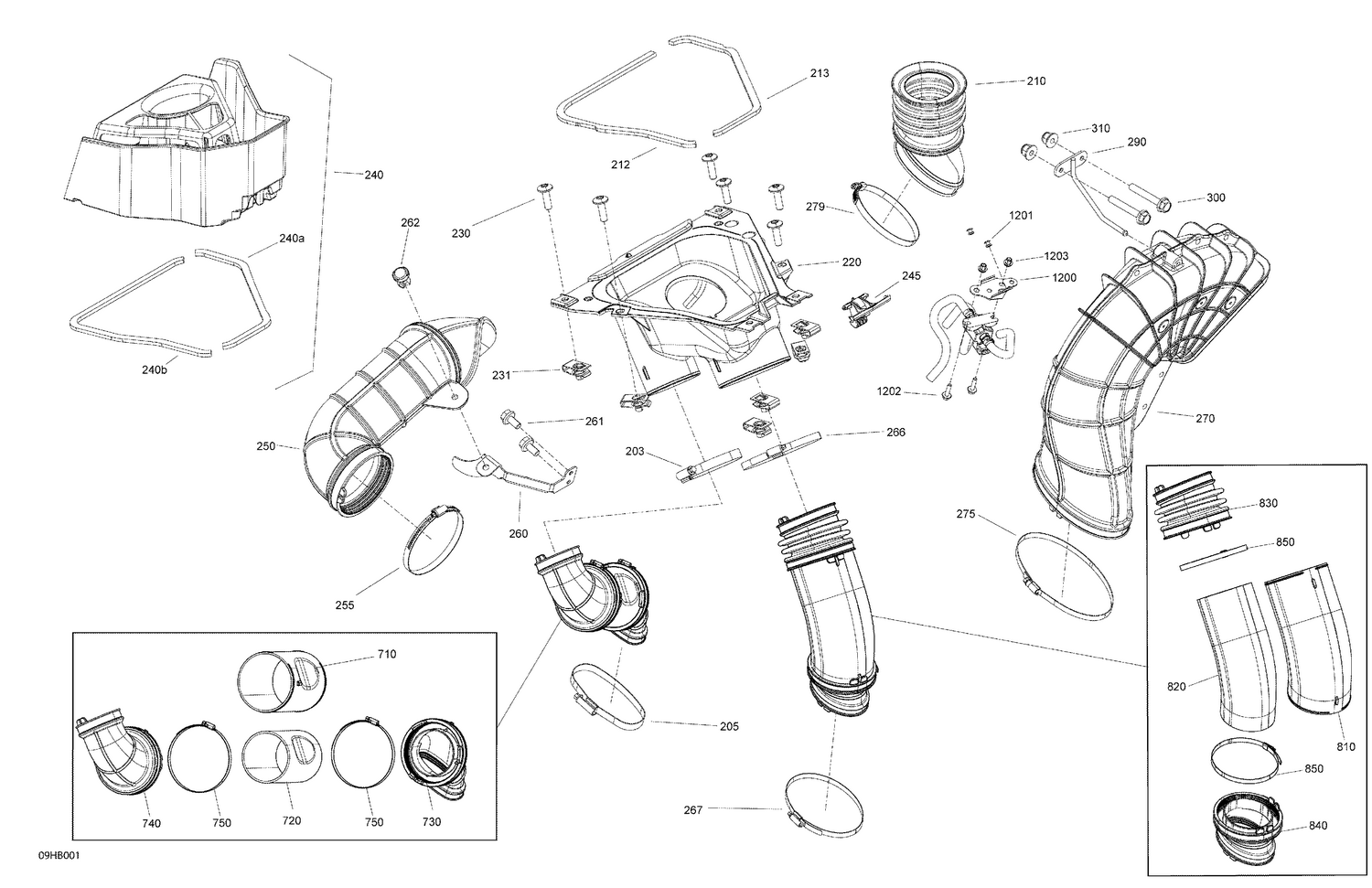

02- Engine - Air Duct
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 203 | 514052924 | Norma Clamp |
| 205 | 514052924 | Norma Clamp |
| 210 | 707800861 | Hose |
| 212 | 706600137 | Seal |
| 213 | 706600138 | Seal |
| 220 | 706600129 | Adaptor |
| 230 | 250000722 | Torx Screw M6 X 20 |
| 231 | 250100198 | Panel Nut M6 X 1.0 |
| 240a | 706600136 | Seal |
| 240b | 706600139 | Seal |
| 245 | 708000909 | Latch |
| 250 | 706600078 | Front Outlet Duct |
| 255 | 514052983 | Norma Gear Clamp |
| 260 | 706600147 | Hose Support |
| 261 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 262 | 293150230 | Tuflok Plastic Rivet |
| 266 | 514052983 | Norma Gear Clamp |
| 267 | 514052983 | Norma Gear Clamp |
| 270 | 706600081 | Rear Outlet Duct |
| 275 | 514052861 | Gear Clamp (Norma) |
| 279 | 514052924 | Norma Clamp |
| 290 | 707003352 | Rear Duct Support This part replaces 707002056. |
| 300 | 207664044 | Hex. Flange Screw M6 X 40 |
| 310 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 710 | 706600337 | CVT Cooling Duct |
| 720 | 706600343 | Acoustic Insulation |
| 730 | 706600389 | Hose |
| 740 | 706600390 | Hose |
| 750 | 514052861 | Gear Clamp (Norma) |
| 810 | 706600338 | CVT Cooling Duct |
| 820 | 706600344 | Insulating Acoustic |
| 830 | 706600391 | Hose |
| 840 | 706600392 | Hose |
| 850 | 514052861 | Gear Clamp (Norma) |
| 1200 | 707002496 | Boost Valve Support |
| 1201 | 390402000 | Pop Rivet 3/16" |
| 1202 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
