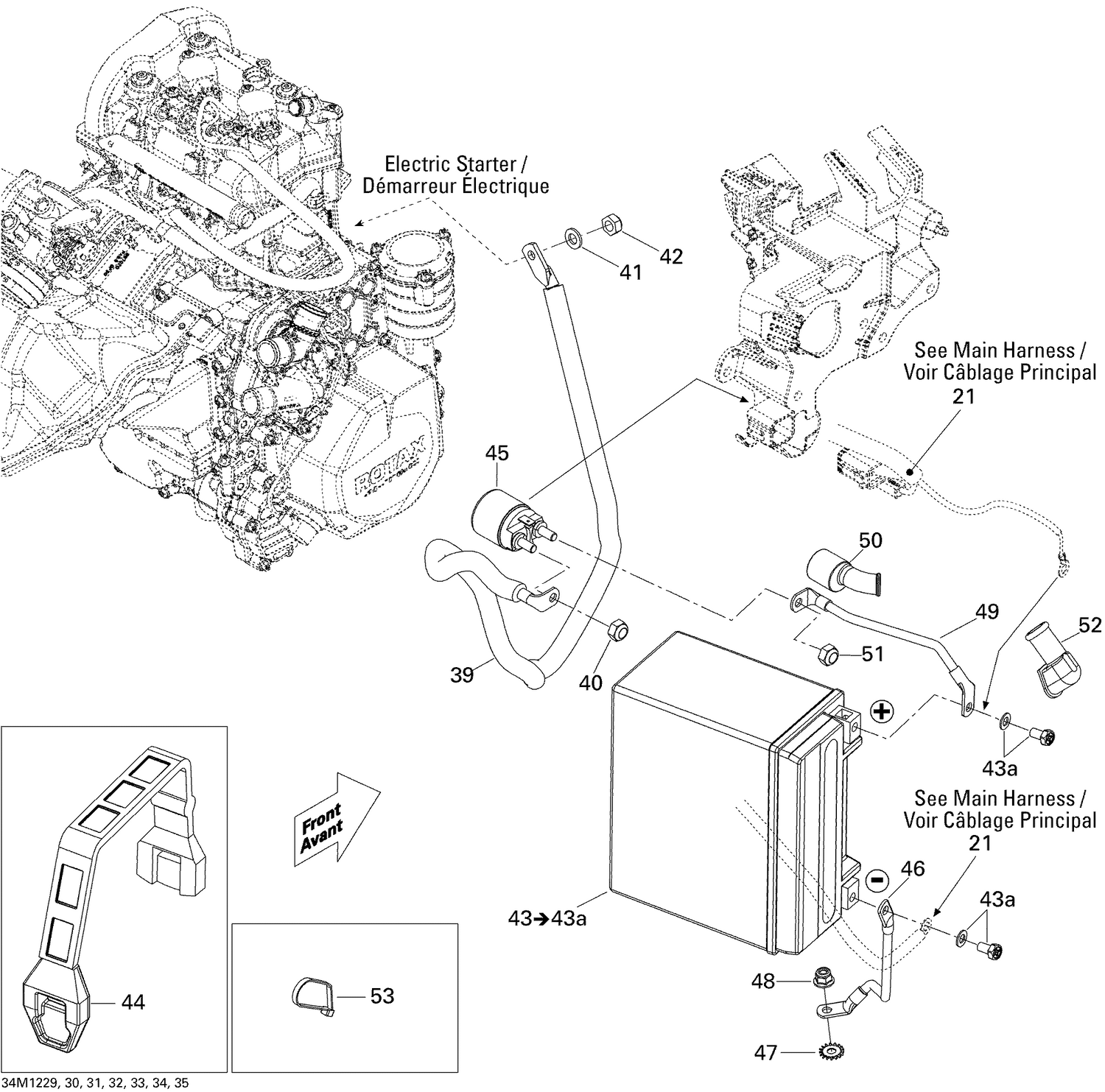

10- Battery And Starter
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 21 | 515177126 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 39 | 515176966 | BATTERY WIRE - Call your local BRP dealership |
| 40 | 232561414 | Elastic Stop Nut M6 |
| 41 | 234061410 | Flat Washer 6 mm |
| 42 | 232561414 | Elastic Stop Nut M6 |
| 43 | 415129898 | Battery YUASA YTX20HL This part replaces 296000295. |
| 43a | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 44 | 515176944 | Strap |
| 45 | 515176942 | STARTER RELAY - Call your local BRP dealership |
| 46 | 515176943 | Ground Wire |
| 47 | 250200041 | Lock Washer Serrated M6 |
| 48 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 49 | 515177007 | BATTERY WIRE - Call your local BRP dealership |
| 50 | 515175919 | Protector Cap |
| 51 | 232561414 | Elastic Stop Nut M6 |
| 52 | 710000495 | Protector Cap |
| 53 | 293750001 | Tie Wrap 94 mm |
| 53 | 293750002 | Tie Wrap 142 mm |
| 53 | 293750008 | Tie Wrap 368 mm |
| 53 | 414115200 | Tie-Rap 180 mm |
