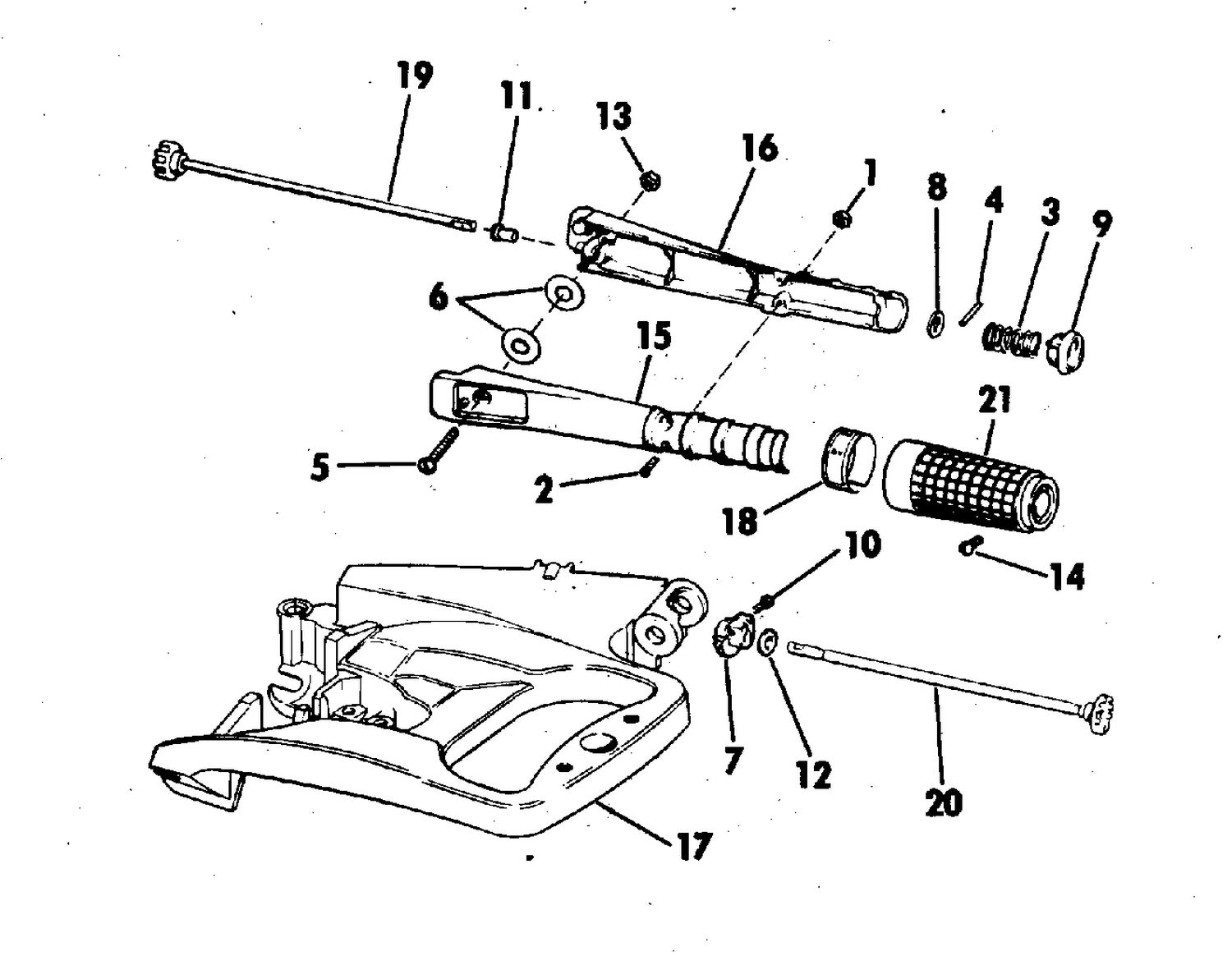

| Ref | Part Number | Description |
|---|
| 2 |
0133452 |
SCREW |
| 3 |
0301656 |
SPRING |
| 5 |
0330976 |
SCREW, Handle halves This part replaces 0303078. |
| 6 |
0303079 |
WASHER |
| 7 |
0303142 |
PINION, Control throttle |
| 8 |
0303252 |
WAHSER, Grip spring |
| 9 |
0303282 |
BLOCK |
| 10 |
0303951 |
SCREW, PIN TO SHAFT |
| 11 |
0325074 |
BUSHING This part replaces 0305100. |
| 12 |
0305347 |
BUSHING, Throttle shaft |
| 13 |
0328742 |
NUT This part replaces 0306338. |
| 15 |
0318213 |
HANDLE, Inner half |
| 16 |
0318214 |
HANDLE, Outer half |
| 17 |
0322883 |
BRACKET, Steering |
| 18 |
0320842 |
PLATE |
| 19 |
0377943 |
GEAR & SHAFT, Long |
| 20 |
0387057 |
GEAR & SHAFT, Short |
| 0173324 |
0174140 |
STEERING HANDLE KIT This part replaces 0173324. |
