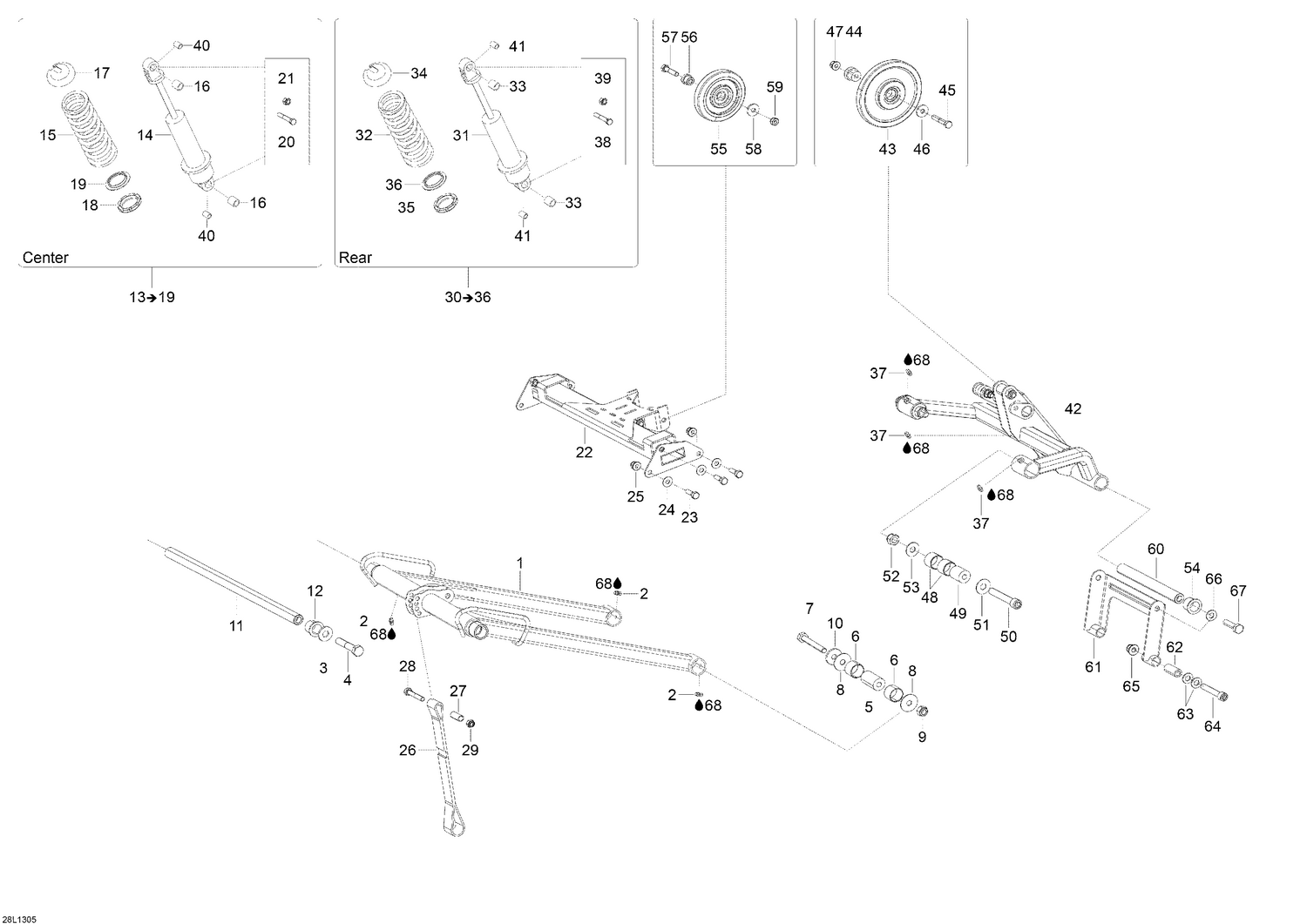

08- Rear Suspension

Parts (65)

Ref	Part Number	Description
1	503192557	Front Arm
2	408200700	Grease Fitting
3	250200131	Washer Spring Conical
4	250000555	Hex. Cap Screw M12 x 60
5	605354157	Shaft
6	31065	Bushing
7	207007044	Hex. Cap Screw M10 x 70
8	605355801	Washer
9	232500416	Elastic Stop Nut M10
10	503183300	Washer
11	503192046	Shaft
12	31024	Cushion
14	503191863	Shock, Front Arm
15	605625010	Spring, Front Arm
16	31094	Cushion
17	230076	Spring Stopper
18	230053	Nut
19	414888316	SPRING COLLAR - Call your local BRP dealership
20	207004544	Hex. Screw M10 X 45
21	232500416	Elastic Stop Nut M10
22	503192566	Middle Beam
23	250000556	Hex. Cap Screw M8 x 25
24	503193095	WASHER A8.4X20X1.25 HV140 BLACK ZINC - Call your local BRP dealership
25	233281414	Hex. Flange Elastic Nut M8
26	605355116	Limiter Strap
27	605455335	Sleeve
28	207084544	Hex. Screw M8 X 45
29	232581414	Hex. Elastic Stop Nut M8
31	503192998	Shock, Rear Arm
32	503192356	Spring, Rear Arm
33	31094	Cushion
34	605354631	Spring Lock
35	230048	Nut
36	230049	Spring Guide
37	408200700	Grease Fitting
38	40134	Screw Socket HD.DIN 912
39	232500416	Elastic Stop Nut M10
40	5446652	Bushing
41	5446652	Bushing
42	503192524	Rear Arm Weld
43	503193644	Idler Wheel 133mm
44	605454461	Sleeve
45	207084544	Hex. Screw M8 X 45
46	20077	M8 Washer
47	233281414	Hex. Flange Elastic Nut M8
48	31065	Bushing
49	605354157	Shaft
50	250000560	Socket Head Screw M10 x 65
51	503191926	Washer
52	232500416	Elastic Stop Nut M10
53	605355801	Washer
54	31024	Cushion
55	572043500	Idler Wheel
56	503193330	Sleeve
57	207083544	Hex. Screw M8 X 35
58	20077	M8 Washer
59	232581414	Hex. Elastic Stop Nut M8
60	605355118	Shaft
61	503192571	Rear Swing
62	503192341	Rear Swing Shaft
63	234001410	Flat Washer 10 mm
64	205006044	Socket Head Screw M10 x 60
65	233201414	Hex. Flanged Elastic Nut M10
