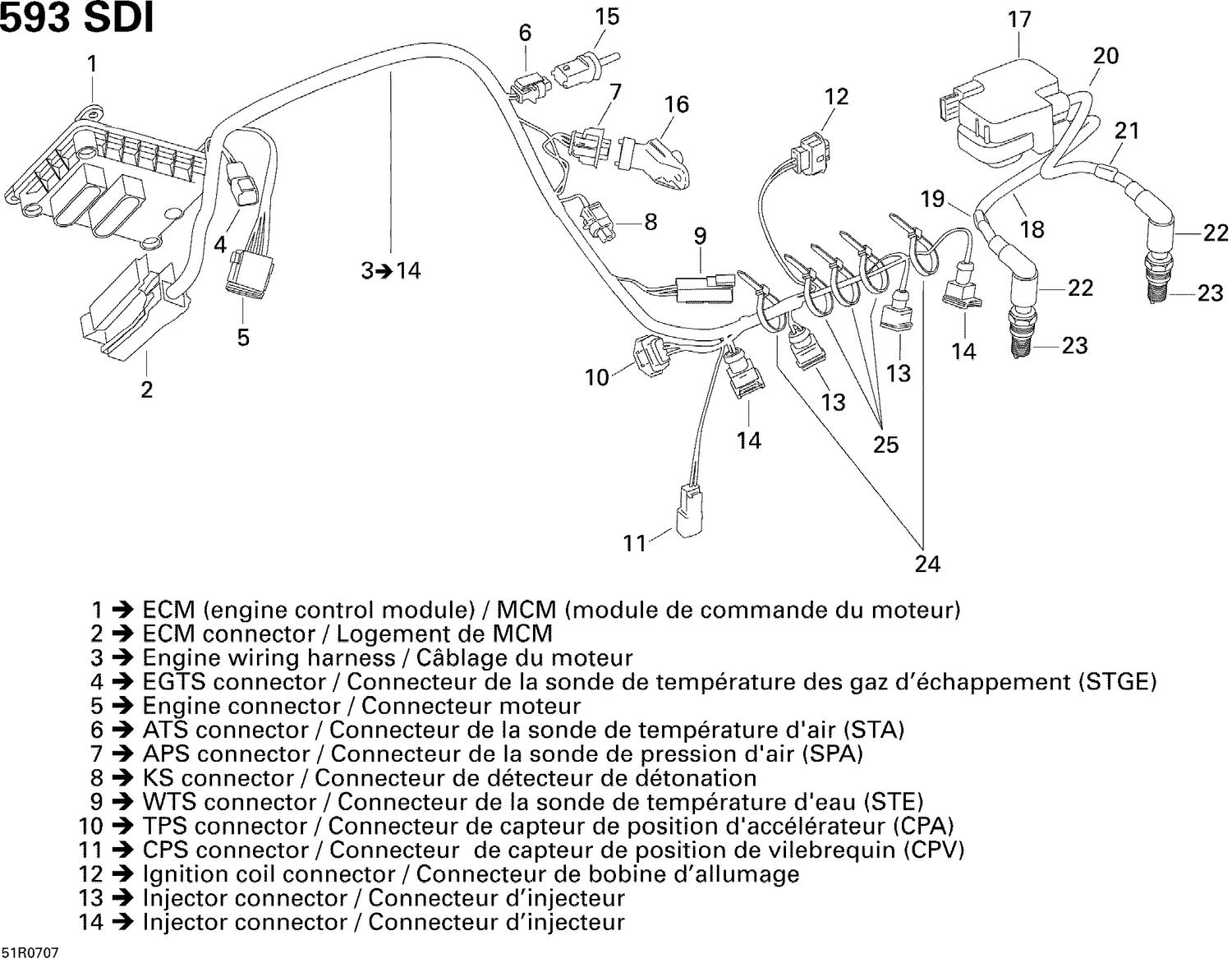

| Ref | Part Number | Description |
|---|
| 1 |
420665199 |
ECM, ENGINE CONTROL MODULE - Call your local BRP dealership |
| 2 |
420664450 |
ECM Connector |
| 4 |
278001005 |
Male Housing, 2 Circuits |
| 5 |
278001743 |
MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 6 |
278001005 |
Male Housing, 2 Circuits |
| 7 |
278001829 |
Housing Connector, 3 Circuits |
| 8 |
278001005 |
Male Housing, 2 Circuits |
| 9 |
278000635 |
Female Housing, 4 Circuits |
| 10 |
278001829 |
Housing Connector, 3 Circuits |
| 11 |
409206900 |
Male Housing, 2 Circuits |
| 12 |
Not |
Available As Spare Part - Ignition Coil Connector |
| 13 |
415128566 |
MALE HOUSING, 2 CIRCUITS, AMP - Call your local BRP dealership |
| 14 |
415128565 |
Male Housing, 2 Circuits, Bosch |
| 15 |
420966970 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 16 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 17 |
278001546 |
Ignition Coil This part replaces 420266070. |
| 18 |
420665333 |
Spark Plug Cable, 790 mm, Rear This part replaces 420664300. |
| 19 |
420660632 |
SLEEVE, MAG SIDE - Call your local BRP dealership |
| 20 |
420664307 |
SPARK PLUG CABLE, 430 MM, PTO SIDE - Call your local BRP dealership |
| 21 |
420660630 |
SLEEVE, PTO SIDE - Call your local BRP dealership |
| 22 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 23 |
Not |
Available As Spare Part - Spark Plug BR8ECS |
| 24 |
420866714 |
Tie Rap |
