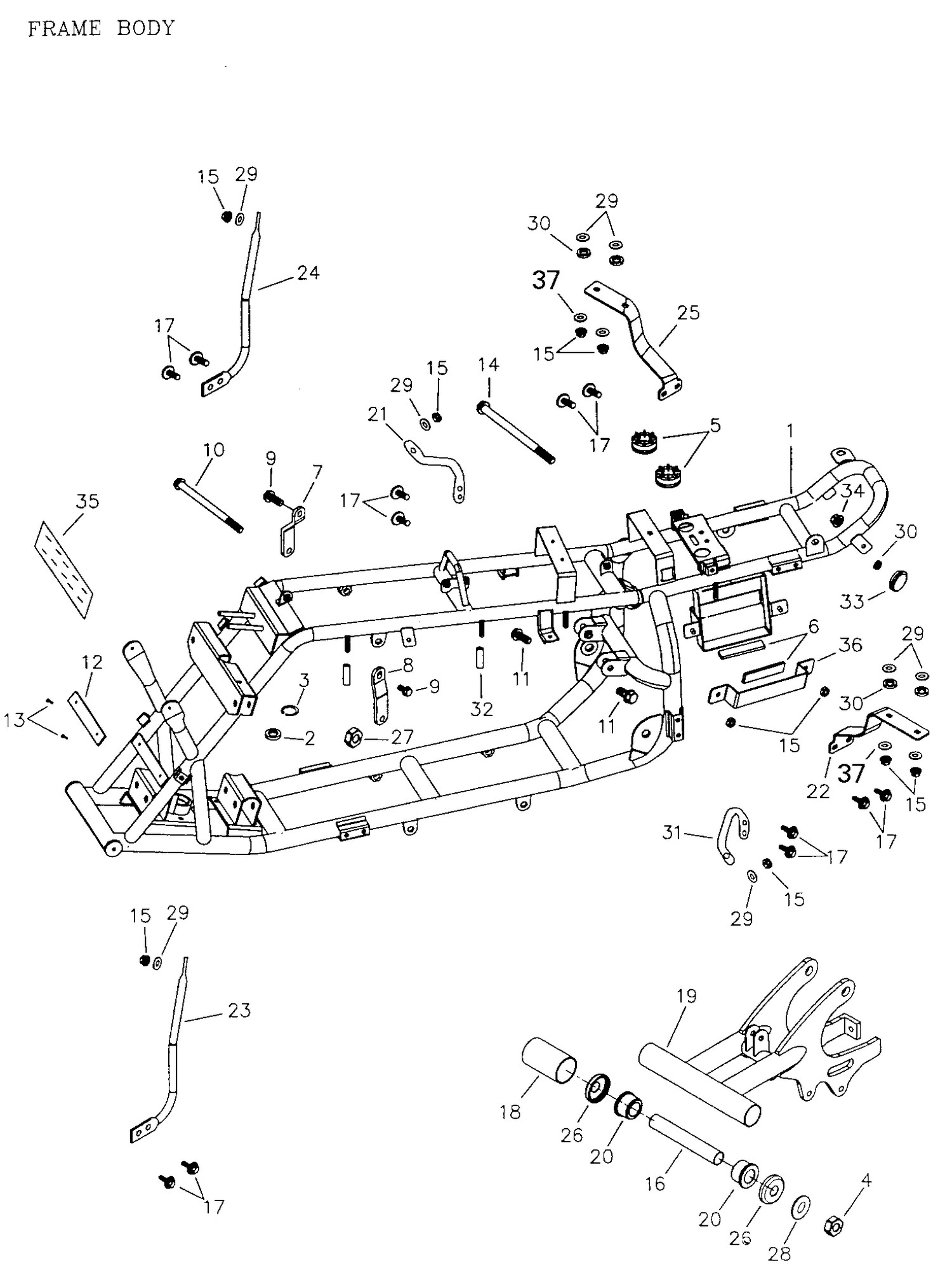

09- Frame And Body
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A50100166001 | Frame Comp |
| 2 | A961006002ZZ | Radial Ball Bearing, 6002ZZ |
| 3 | A945123200R | INTERNAL CIRCLIP - Call your local BRP dealership |
| 4 | A9035014000 | NYLON NUT M14 - Call your local BRP dealership |
| 5 | A77211145000 | Rubber |
| 6 | A17505145000 | SPONGE PAD - Call your local BRP dealership |
| 7 | A50353145002 | RH Engine Fixed Plate |
| 8 | A50354145002 | LH Engine Fixed Plate |
| 9 | A960001002014G | HEXAGONAL WASHER FACE BOLT M10X20 - Call your local BRP dealership |
| 10 | A960001020814 | Hex. Washer Face Bolt M10 X 208 |
| 11 | A960000803612G | Hex. Washer Face Bolt M8 X 36 |
| 12 | A50110145000 | Frame No. Plate |
| 13 | A90662105000 | Rivet |
| 14 | A960001429019 | HEXAGONAL WASHER FACE BOLT M14X290 - Call your local BRP dealership |
| 15 | A9035006000 | NYLON NUT M6 - Call your local BRP dealership |
| 16 | A52104145000 | SWING ARM SPACER - Call your local BRP dealership |
| 17 | A920000601410 | HEXAGONAL BOLT M6 X 14 - Call your local BRP dealership |
| 18 | A52101145001 | Rubber Sleeve |
| 19 | A52100145003 | SWING ARM SUB ASS'Y - Call your local BRP dealership |
| 20 | A52103145000 | BUSH - Call your local BRP dealership |
| 21 | A83401155000 | REAR COVER LOWER RIGHT FIXED POLE - Call your local BRP dealership |
| 22 | A83402166000 | Rear Cover Up Left Fixed Plate |
| 23 | A64307155000 | FRONT COVER LEFT FIXED POLE - Call your local BRP dealership |
| 24 | A64308155000 | FRONT COVER RIGHT FIXED POLE - Call your local BRP dealership |
| 25 | A83403166000 | REAR COVER UP RIGHT FIXED PLATE - Call your local BRP dealership |
| 26 | A52144145000 | SWING ARM SEAL COVER - Call your local BRP dealership |
| 27 | 232501416 | Elastic Flange Nut M10 This part replaces A9035010000. |
| 28 | A941011426030 | Plain Washer, 14 X 26 X 3 |
| 29 | A941010618020 | PLAIN WASHER, 6 X 18 X 2 - Call your local BRP dealership |
| 30 | A94102145000 | Rubber Washer |
| 31 | A83404155000 | Rear Cover Lower Left Fixed Pole |
| 32 | A11357145000 | Cable Clamp Rubber |
| 33 | A33741145000RD | REFLECTOR - Call your local BRP dealership |
| 34 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 35 | ABO507557 | Frame Decal |
| 36 | A31504145000 | BATTERY BRACKET - Call your local BRP dealership |
