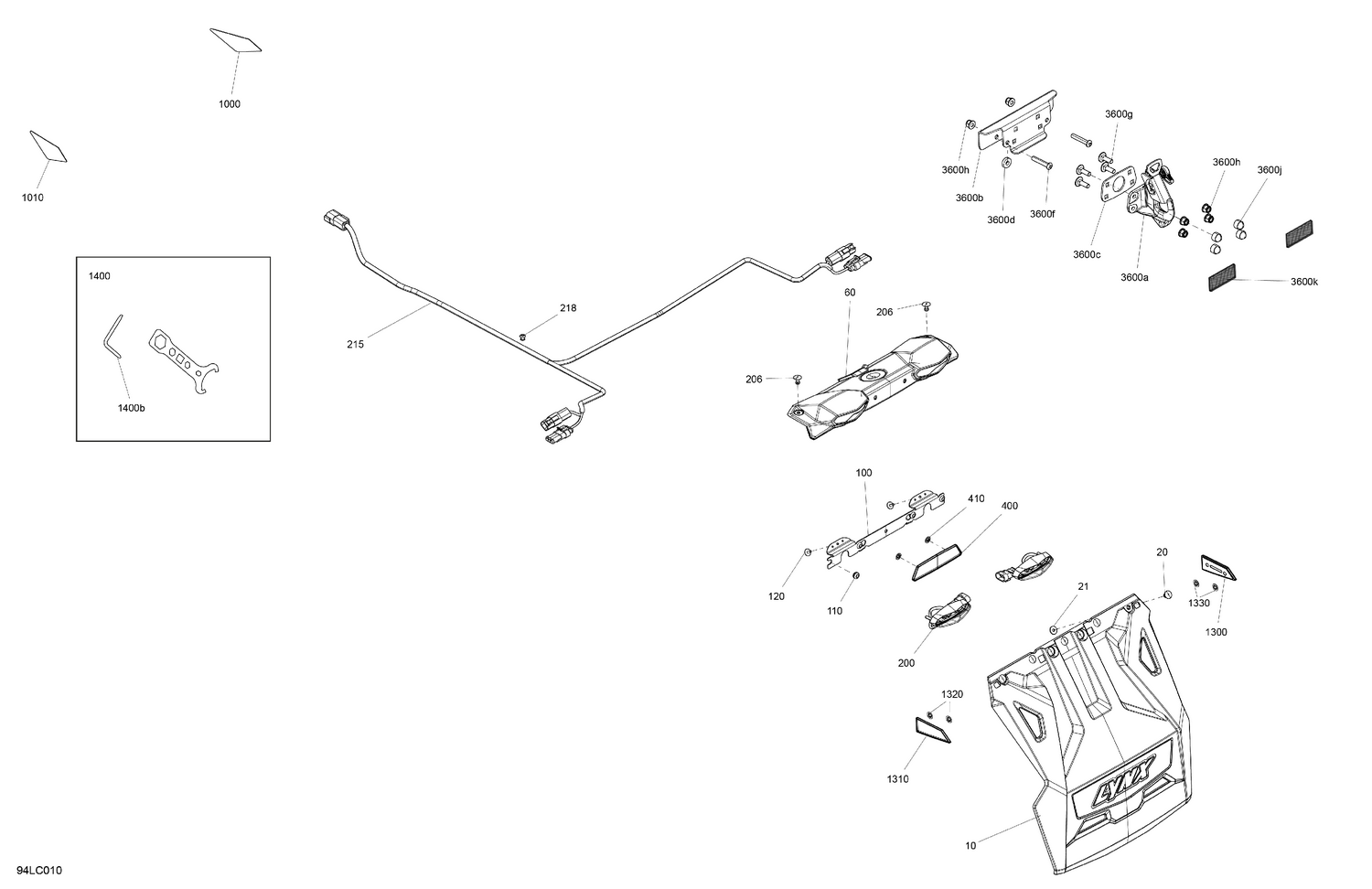

09- Miscellaneous - Utilities
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001886 | Snow Guard |
| 20 | 293150104 | Pop Rivet 3/16 |
| 21 | 517124300 | Washer |
| 60 | 520001701 | Light Fairing |
| 100 | 520001773 | Rear Light Support Plate |
| 110 | 293720101 | Grommet |
| 120 | 250000805 | Plastite Screw M4 X 10 |
| 200 | 520001302 | Rear Light |
| 206 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 215 | 515179338 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16 |
| 400 | 705015952 | Rear Reflector |
| 410 | 732610072 | Push Nut |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1300 | 520003528 | Amber, LH/RH Rear Reflector This part replaces 705016306. |
| 1310 | 705016307 | Yellow, LH Reflector |
| 1320 | 520002649 | RH Support Tape |
| 1330 | 520002650 | LH Support Tape |
| 1400b | 520001815 | Key |
| 3600b | 520001632 | Hitch Support |
| 3600c | 520001243 | Hitch Fastening Plate |
| 3600d | 520001288 | Sleeve |
| 3600f | 205484546 | Socket Head Screw M8 X 45 |
| 3600g | 207782544 | Carriage Bolt, M8 X 25 |
| 3600h | 233281414 | Hex. Flange Elastic Nut M8 |
| 3600j | 28056 | Cover |
